2004 Evinrude Outboards 200 - E200FCXSRB

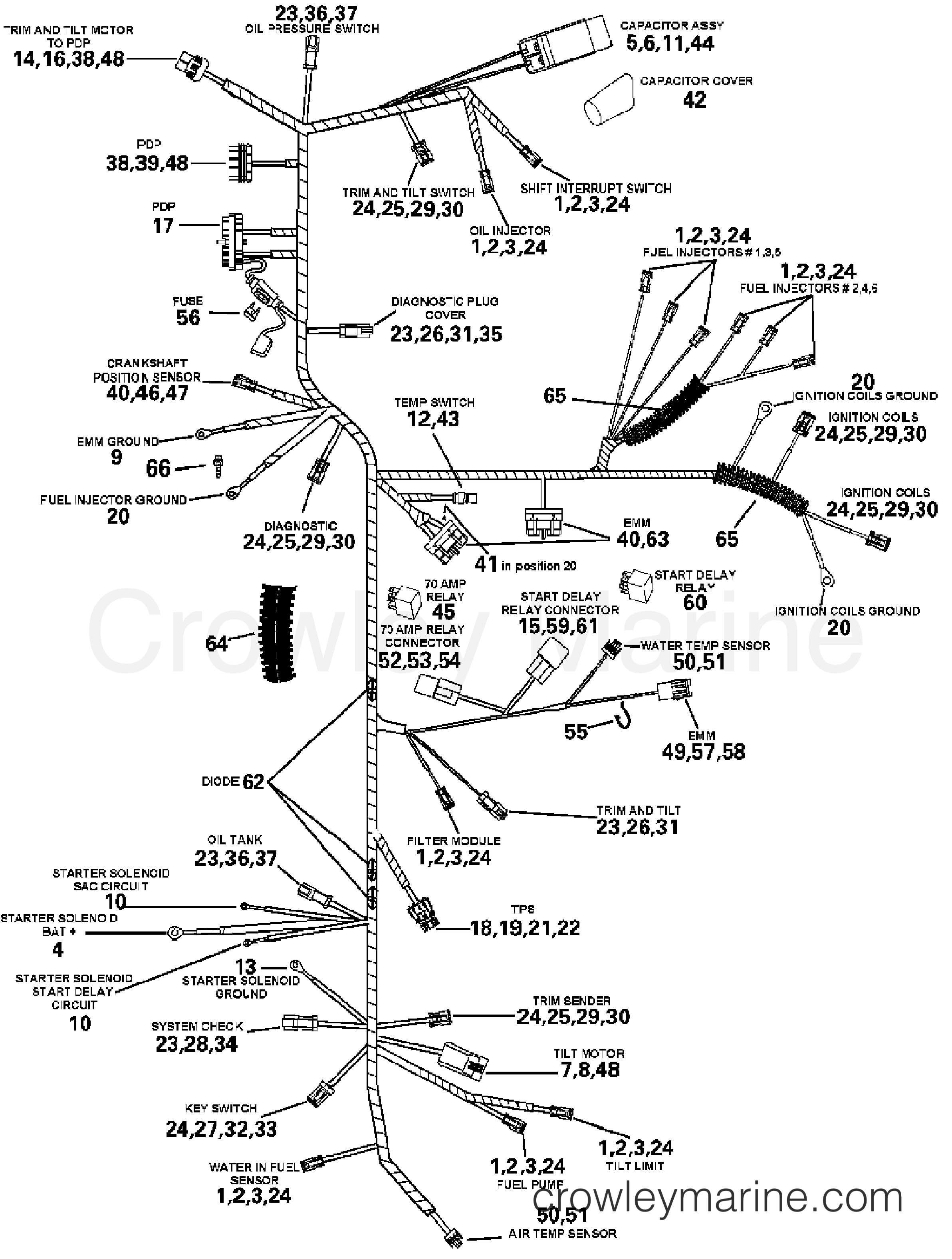

ENGINE HARNESS ASSEMBLY section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

2004 Evinrude Outboards 200 - E200FCXSRB ENGINE HARNESS ASSEMBLY section
Use two fingers to zoom
and move the diagram
2004 Evinrude Outboards 200 - E200FCXSRB - ENGINE HARNESS ASSEMBLY section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

3
0514788 - Lead Plug Seal
0514788
0514788 ← 0514788

**SEAL, 2-SOCKET

**SEAL, 2-SOCKET
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 12
6
0332067 - Screw
0332067
0332067 ← 0332067

*SCREW, CAPACITOR

*SCREW, CAPACITOR
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 2
10
0511829 - Terminal Ring
0511829
0511829 ← 0511829

*RING TERMINAL

*RING TERMINAL
$.69
$.69
Leaves in 3-5 days
Required: 2
16
3010050 - Secondary Lock
3010050
3010050 ← 3010050

*SECONDARY LOCK

*SECONDARY LOCK
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 1
18
0513773 - Pin Terminal
0513773
0513773 ← 0513773

*TERMINAL, PIN-TPS

*TERMINAL, PIN-TPS
$.99
You save 53%. $2.09
Ships Immediately
1 Items in stock
Required: 3
21
0514591 - 3 Pin Connector
0514591
0514591 ← 0514591

*CONNECTOR, TPS

*CONNECTOR, TPS
$8.26
You save 5%. $8.69
Leaves in 6-8 days
Required: 1
28
0514684 - Wedge Lock
0514684
0514684 ← 0514684

*LOCK WEDGE, 6-PIN

*LOCK WEDGE, 6-PIN
$2.61
You save 5%. $2.75
Leaves in 3-5 days
Required: 1
29
0514685 - Trim switch Connector, pan - X
0514685
0514685 ← 0514685

*CONNECTOR, 3 SOCKET

*CONNECTOR, 3 SOCKET
$12.11
You save 5%. $12.75
Leaves in 3-5 days
Required: 5
30
0514789 - Lead Plug Seal
0514789
0514789 ← 0514789

**SEAL

**SEAL
$6.99
You save 26%. $9.50
Ships Immediately
1 Items in stock
Required: 5
32
0514687 - 6-socket Connector, keyswitch - Y
0514687
0514687 ← 0514687

*CONNECTOR, 6-SOCKET

*CONNECTOR, 6-SOCKET
$18.05
You save 5%. $19.00
Leaves in 3-5 days
Required: 1
33
0514790 - Lead Plug Seal
0514790
0514790 ← 0514790

**SEAL, 6-SOCKET

**SEAL, 6-SOCKET
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 1
34
0514688 - 6-pin Connector, sl System Check
0514688
0514688 ← 0514688

*CONNECTOR, 6-PIN

*CONNECTOR, 6-PIN
$17.10
You save 5%. $18.00
Leaves in 3-5 days
Required: 1
36
0514696 - 2 Pin Rcpt Connector
0514696
0514696 ← 0514696

*CONNECTOR, 2-PIN

*CONNECTOR, 2-PIN
$12.11
You save 5%. $12.75
Leaves in 3-5 days
Required: 2
37
0514697 - Lock Wedge
0514697
0514697 ← 0514697

*LOCK WEDGE, 2-PIN

*LOCK WEDGE, 2-PIN
$2.61
You save 5%. $2.75
Leaves in 3-5 days
Required: 2
39
0514824 - CONNECTOR, 4-socket
0514824
0514824 ← 0514824

*CONNECTOR, 4-SOCKET

*CONNECTOR, 4-SOCKET
$7.60
You save 5%. $8.00
Leaves in 6-8 days
Required: 1
40
0514856 - Deutsch Terminal
0514856
0514856 ← 0514856

*TERMINAL

*TERMINAL
$3.79
You save 5%. $3.99
Leaves in 6-8 days
Required: 49
42
0514889 - Capacitor Cover
0514889
0514889 ← 0514889

*COVER, CAPACITOR

*COVER, CAPACITOR
$19.95
$20.00
Leaves in 3-5 days
Required: 1
44
3010206 - Capacitor
3010206
3010206 ← 3010206

*CAPACITOR

*CAPACITOR
$273.84
You save $14.41. $288.25
Leaves in 3-5 days
Required: 1
45
0586397 - 70 AMP Relay Assembly
0586397
0586397 ← 0586397

*RELASSEMBLY, 70 AMP

*RELASSEMBLY, 70 AMP
$43.23
You save $2.27. $45.50
Leaves in 3-5 days
Required: 1
47
3010594 - Lock Wedge
3010594
3010594 ← 3010594

*LOCK WEDGE, CPS

*LOCK WEDGE, CPS
$1.07
You save 5%. $1.13
Leaves in 6-8 days
Required: 1
50
3010124 - Connector
3010124
3010124 ← 3010124

*CONNECTOR, 2-PIN

*CONNECTOR, 2-PIN
$23.99
You save $1.26. $25.25
Leaves in 3-5 days
Required: 2
56
0514768 - 20Amp Minifuse
0514768
0514768 ← 0514768

*FUSE, 20 AMP

*FUSE, 20 AMP
$3.32
You save 5%. $3.49
Leaves in 3-5 days
Required: 1
