2004 Evinrude Outboards 200 - E200FCXSRB

CYLINDER & CRANKCASE section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

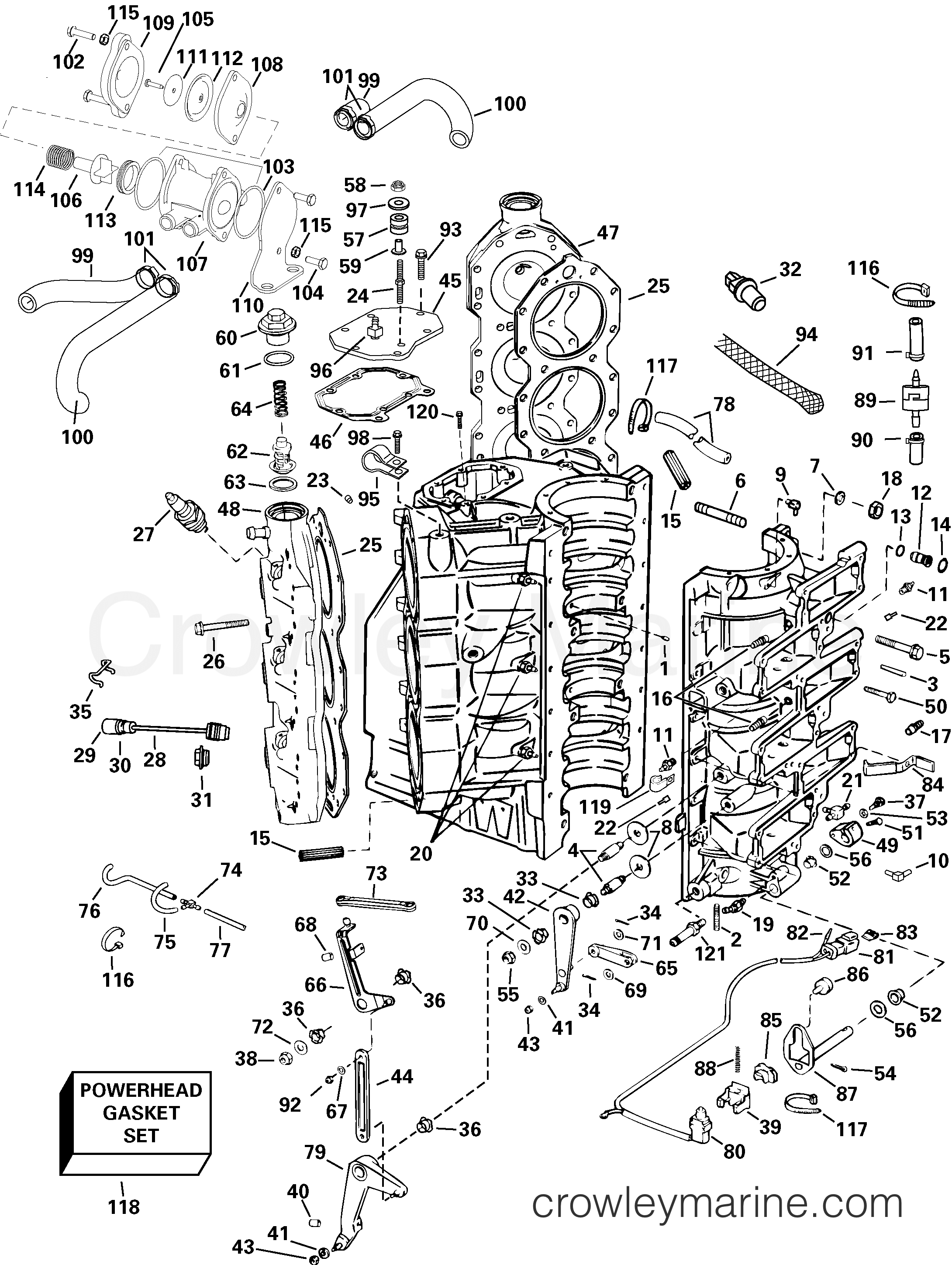

2004 Evinrude Outboards 200 - E200FCXSRB CYLINDER & CRANKCASE section
Use two fingers to zoom
and move the diagram
2004 Evinrude Outboards 200 - E200FCXSRB - CYLINDER & CRANKCASE section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

3
0331095 - Taper Pin
0331095
0331095 ← 0331095

*PIN, TAPER

*PIN, TAPER
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 2
14
0340052 - O-Ring
0340052
0340052 ← 0340052

**O-RING, SMALL

**O-RING, SMALL
$5.75
$5.75
Leaves in 3-5 days
Required: 1
15
0346237 - Dam Water Cylinder Assembly
0346237
0346237 ← 0346237

*WATER DAM

*WATER DAM
$11.16
You save 5%. $11.75
Leaves in 3-5 days
Required: 6
18
0332291 - Tilt Bolt Nut
0332291
0332291 ← 0332291

*NUT, STUD C/C

*NUT, STUD C/C
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 2
22
0344821 - Nipple
0344821
0344821 ← 0344821

*NIPPLE, OIL INLET

*NIPPLE, OIL INLET
$18.05
You save 5%. $19.00
Leaves in 3-5 days
Required: 6
25
0346007 - V6 Cylinder Head Gasket
0346007
0346007 ← 0346007

GASKET, CYLINDER HEAD

GASKET, CYLINDER HEAD
$54.95
You save $4.34. $59.29
Leaves in 3-5 days
Required: 2
30
0513357 - 1 pin recept Temperature Switch Connector
0513357
0513357 ← 0513357

*CONNECTOR

*CONNECTOR
$13.06
You save 5%. $13.75
Leaves in 3-5 days
Required: 1
39
0513134 - Bracket
0513134
0513134 ← 0513134

BRACKET, SHIFT ASSIST

BRACKET, SHIFT ASSIST
$9.99
You save 15%. $11.75
Ships Immediately
2 Items in stock
Required: 1
42
0433481 - Shift Arm Assembly
0433481
0433481 ← 0433481

SHIFT ARM

SHIFT ARM
$54.95
You save $2.05. $57.00
Leaves in 3-5 days
Required: 1
109
 -
← 0

PROPELLER

PROPELLER
Notes: (Refer to EVINRUDE / JOHNSON Genuine Parts Propeller Chart.)
Items in stock
Required: 1
118
0350228 - Retainer
0350228
0350228 ← 0350228

RETAINING RING

RETAINING RING
$14.96
You save 5%. $15.75
Leaves in 3-5 days
Required: 1
0338551 - Impeller Housing Cup
0338551
0338551 ← 0338551

*CUP, IMPELLER-(CHROME)

*CUP, IMPELLER-(CHROME)
Notes: (Not shown.)
$83.60
You save $4.40. $88.00
Leaves in 3-5 days
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
