2004 Evinrude Outboards 200 - E200FCXSRB

CRANKSHAFT AND PISTONS section

Change Section

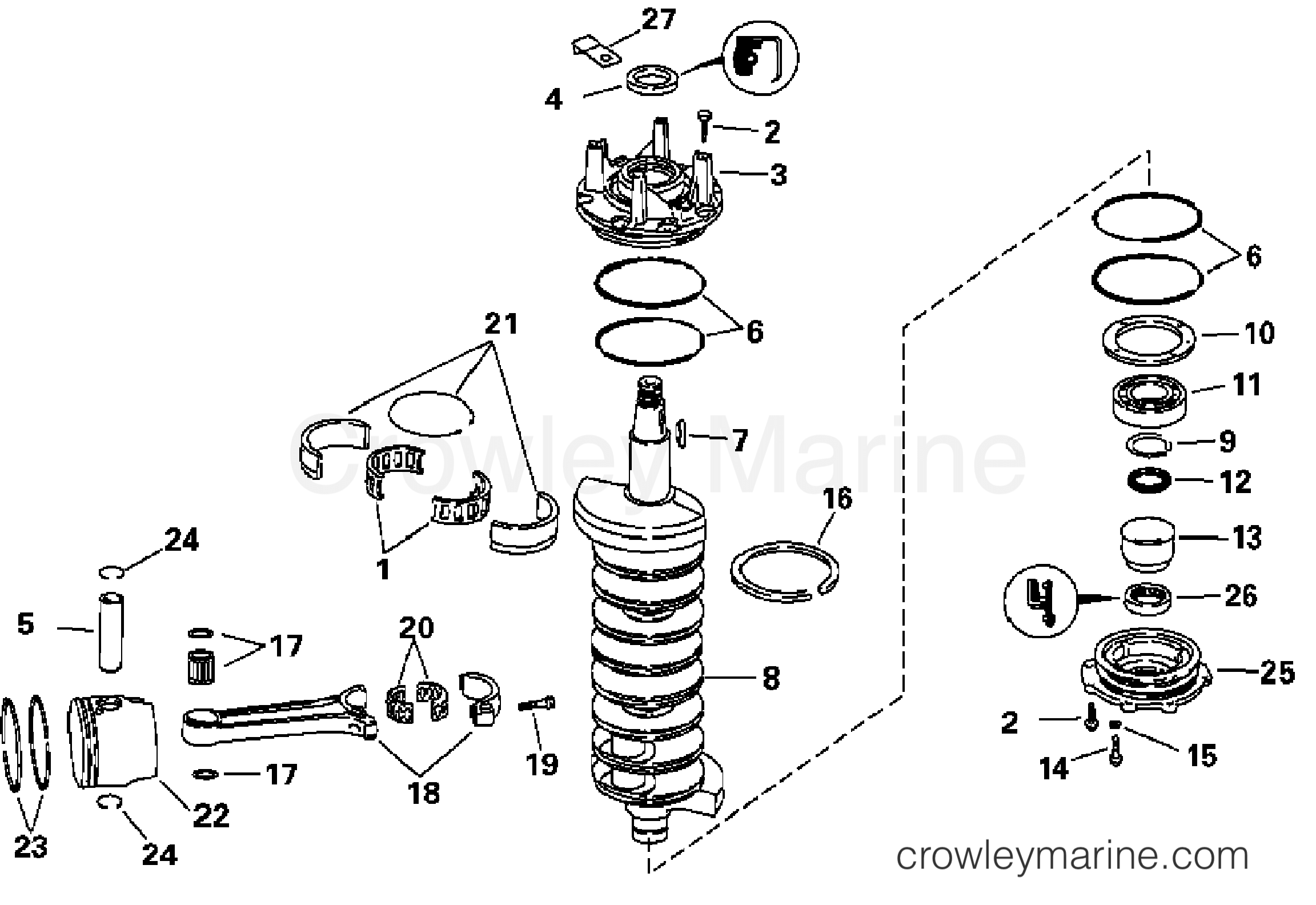

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

2004 Evinrude Outboards 200 - E200FCXSRB CRANKSHAFT AND PISTONS section
Use two fingers to zoom
and move the diagram
2004 Evinrude Outboards 200 - E200FCXSRB - CRANKSHAFT AND PISTONS section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

2
0344020 - Screw
0344020
0344020 ← 0344020

SCREW, CRANKCASE HEAD

SCREW, CRANKCASE HEAD
$9.99
You save 37%. $15.75
Ships Immediately
5+ Items in stock
Required: 16
3
5001115 - Crankcase Bearing Head & Seal
5001115
5001115 ← 5001115

HEAD ASSEMBLY, UPPER

HEAD ASSEMBLY, UPPER
$433.20
You save $22.80. $456.00
Leaves in 3-5 days
Required: 1
4
0339620 - Oil Seal
0339620
0339620 ← 0339620

*SEAL, UPPER

*SEAL, UPPER
Notes: (Included in POWERHEAD GASKET SET.)
$14.99
You save $1.20. $16.19
Ships Immediately
3 Items in stock
Required: 1
11
0390641 - Bearing
0390641
0390641 ← 0390641

*BEARING, BALL

*BEARING, BALL
$44.99
You save $20.50. $65.49
Ships Immediately
1 Items in stock
Required: 1
13
0336988 - Crankshaft Sleeve
0336988
0336988 ← 0336988

*SLEEVE, CRANKSHAFT

*SLEEVE, CRANKSHAFT
$17.10
You save 5%. $18.00
Leaves in 3-5 days
Required: 1
15
0332585 - Washer
0332585
0332585 ← 0332585

*SEAL

*SEAL
Notes: (Included in POWERHEAD GASKET SET.)
$1.99
You save 36%. $3.09
Ships Immediately
4 Items in stock
Required: 4
16
0326749 - Crank Seal Ring
0326749
0326749 ← 0326749

SEAL RING

SEAL RING
$16.33
You save 5%. $17.19
Leaves in 3-5 days
Required: 9
17
0348495 - Bearing Kit Assembly
0348495
0348495 ← 0348495

BEARING, WRIST PIN

BEARING, WRIST PIN
$39.95
You save $1.44. $41.39
Leaves in 3-5 days
Required: 6
19
0346044 - Rod Cap Screw
0346044
0346044 ← 0346044

*SCREW, ROD CAP

*SCREW, ROD CAP
$12.11
You save 5%. $12.75
Leaves in 3-5 days
Required: 2
26
0353076 - Seal
0353076 ← 0332942
0353076

*SEAL

*SEAL
Notes: (Included in POWERHEAD GASKET SET.)
$32.30
You save $1.70. $34.00
Ships Immediately
1 Items in stock
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
