2001 Evinrude Outboards 10 - E10EL4SID

GEARCASE section

Change Section

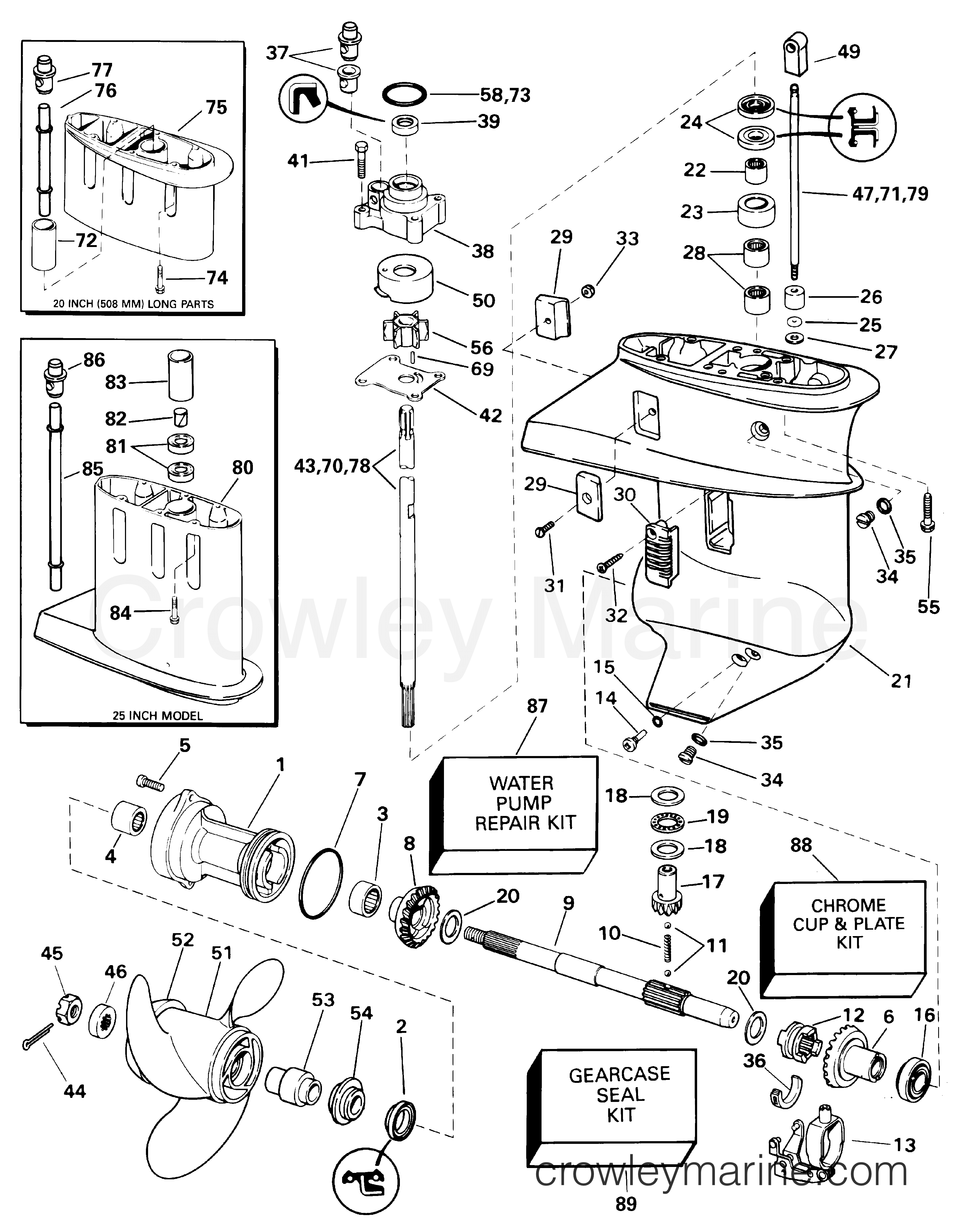

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

2001 Evinrude Outboards 10 - E10EL4SID GEARCASE section
Use two fingers to zoom
and move the diagram
2001 Evinrude Outboards 10 - E10EL4SID - GEARCASE section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

12
0325263 - Clutch dog Shifter, 3 Lug
0325263
0325263 ← 0325263

*SHIFTER, CLUTCH DOG

*SHIFTER, CLUTCH DOG
$142.74
You save $7.51. $150.25
Leaves in 3-5 days
Required: 1
17
0338190 - Pinion Gear
0338190
0338190 ← 0338190

*PINION, DRIVESHAFT

*PINION, DRIVESHAFT
$152.48
You save $8.02. $160.50
Leaves in 3-5 days
Required: 1
37
0302497 - Grommet
0302497
0302497 ← 0302497

GROMMET, WATER TUBE LOWER

GROMMET, WATER TUBE LOWER
Notes: (Contents of Water Pump Repair Kit. RL, RVL, EL, EVL Models. Cut to Length from P/N 333341 -- 5/16 in. I.D..)
$3.95
You save 12%. $4.49
Ships Immediately
5+ Items in stock
Required: 1
38
0435390 - Impeller Housing & Seal Assembly
0435390
0435390 ← 0435390

IMPELLER HOUSING. & SEAL ASSEMBLY.

IMPELLER HOUSING. & SEAL ASSEMBLY.
Notes: (Contents of Water Pump Repair Kit.)
$29.95
You save $1.24. $31.19
Leaves in 3-5 days
Required: 1
42
0318995 - Impeller to driveshaft Plate
0318995
0318995 ← 0318995

PLATE, IMPELLER HOUSING

PLATE, IMPELLER HOUSING
Notes: (Contents of Water Pump Repair Kit.)
$9.99
You save 18%. $12.19
Ships Immediately
1 Items in stock
Required: 1
43
0337396 - 15" 4Cycle Driveshaft
0337396
0337396 ← 0337396

DRIVESHAFT, STANDARD

DRIVESHAFT, STANDARD
$293.79
You save $15.46. $309.25
Leaves in 3-5 days
Required: 1
47
0337401 - Shift Rod 15"
0337401
0337401 ← 0337401

SHIFT ROD, STANDARD

SHIFT ROD, STANDARD
$64.95
You save $3.94. $68.89
Leaves in 6-8 days
Required: 1
49
0334119 - Connector
0334119
0334119 ← 0334119

CONNECTOR, SHIFT ROD

CONNECTOR, SHIFT ROD
$13.06
You save 5%. $13.75
Leaves in 3-5 days
Required: 1
50
0324097 - Impeller Housing Cup
0324097
0324097 ← 0324097

CUP, IMPELLER HOUSING

CUP, IMPELLER HOUSING
Notes: (Contents of Water Pump Repair Kit.)
$14.95
You save $1.24. $16.19
Leaves in 3-5 days
Required: 1
50
0323535 - Impeller Housing - X Cup
0323535
0323535 ← 0323535

CUP, IMPELLER HOUSING

CUP, IMPELLER HOUSING
Notes: (Contents of Chrome Pump Kit.)
$89.95
You save $5.30. $95.25
Leaves in 3-5 days
Required: 1
58
0319085 - Impeller Housing Seal
0319085
0319085 ← 0319085

SEAL, IMPELLER HOUSING

SEAL, IMPELLER HOUSING
Notes: (Contents of Gearcase Seal Kit. Contents of Water Pump Repair Kit.)
$2.99
You save 12%. $3.39
Ships Immediately
5+ Items in stock
Required: 1
69
0300611 - Dowel Pin
0300611
0300611 ← 0300611

PIN, IMPELLER TO DRIVESHAFT

PIN, IMPELLER TO DRIVESHAFT
Notes: (Contents of Water Pump Repair Kit. RL, RVL, EL, EVL Models.)
$7.99
You save 13%. $9.19
Ships Immediately
1 Items in stock
Required: 1
70
0337397 - 20" Driveshaft
0337397
0337397 ← 0337397

*DRIVESHAFT, LONG

*DRIVESHAFT, LONG
Notes: (RL, RVL, EL, EVL Models.)
$199.95
You save $12.55. $212.50
Leaves in 3-5 days
Required: 1
71
0337403 - Shift Rod
0337403
0337403 ← 0337403

*SHIFT ROD

*SHIFT ROD
Notes: (RL, RVL, EL, EVL Models.)
$74.95
You save $5.80. $80.75
Leaves in 3-5 days
Required: 1
75
0331152 - Gearcase Extension Assembly
0331152
0331152 ← 0331152

*EXTENSION, GEARCASE

*EXTENSION, GEARCASE
Notes: (RL, RVL, EL, EVL Models.)
$189.95
You save $10.24. $200.19
Leaves in 6-8 days
Required: 1
76
0337383 - Tube
0337383
0337383 ← 0337383

*WATER TUBE

*WATER TUBE
Notes: (RL, RVL, EL, EVL Models.)
$54.95
You save $3.34. $58.29
Leaves in 6-8 days
Required: 1
78
0337398 - 25" Sail Driveshaft
0337398
0337398 ← 0337398

DRIVESHAFT

DRIVESHAFT
Notes: 10TEX, TVX MODELS
$197.60
You save $10.40. $208.00
Leaves in 3-5 days
Required: 1
81
0328301 - Sleeve
0328301
0328301 ← 0328301

*SLEEVE, EXTENSION

*SLEEVE, EXTENSION
Notes: 10TEX, TVX MODELS
$21.75
You save $1.14. $22.89
Leaves in 6-8 days
Required: 2
0436981 - Extension Kit Assembly
0436981
0436981 ← 0436981

EXTENSION KIT ASSEMBLY.

EXTENSION KIT ASSEMBLY.
Notes: (Not Shown. RL, RVL, EL, EVL Models.)
$163.99
You save $16.01. $180.00
Ships Immediately
1 Items in stock
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
