2001 Johnson Outboards 10 - J10ELSIM

REWIND STARTER section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

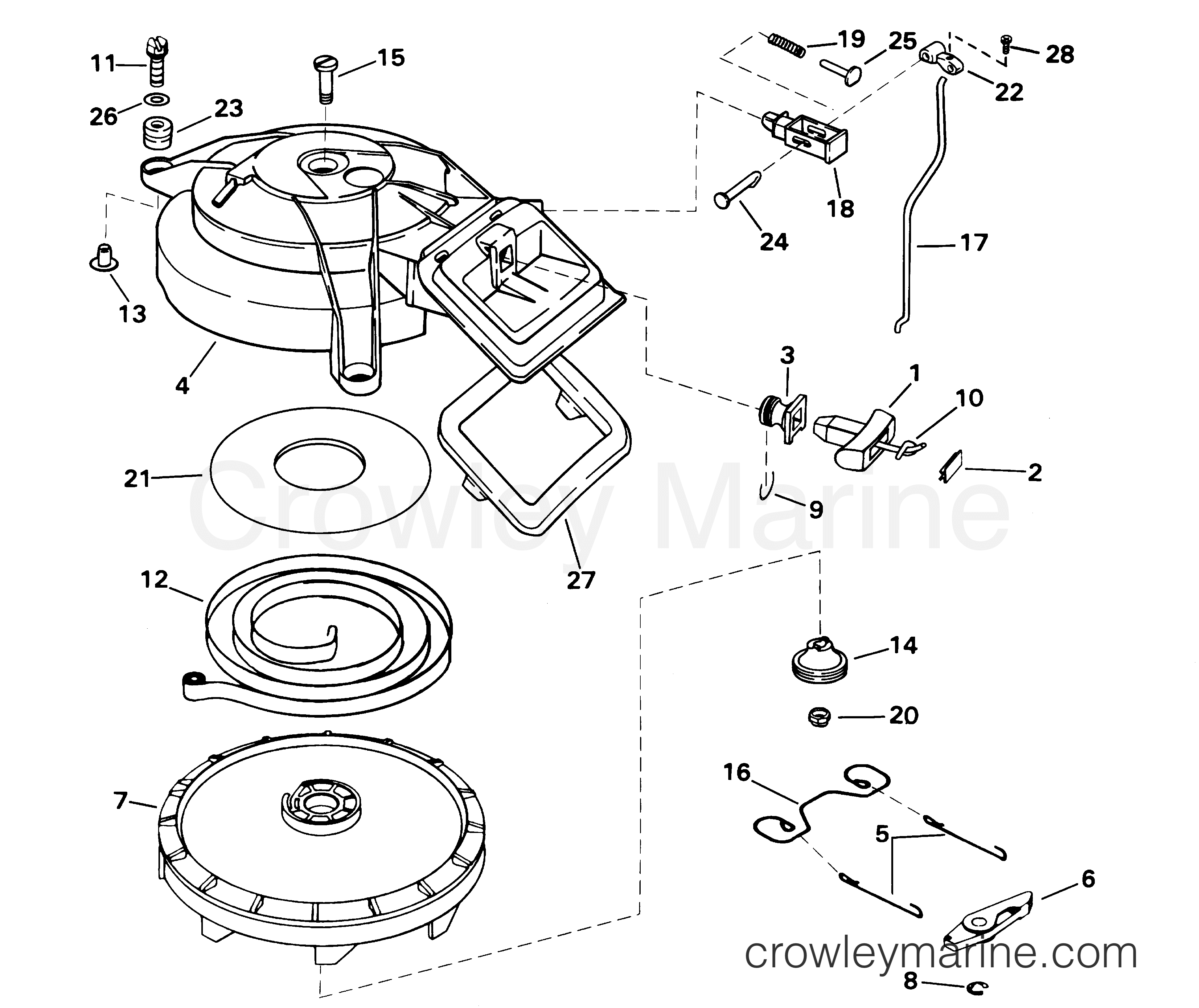

2001 Johnson Outboards 10 - J10ELSIM REWIND STARTER section
Use two fingers to zoom
and move the diagram
2001 Johnson Outboards 10 - J10ELSIM - REWIND STARTER section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

4
0338203 - Starter Housing
0338203
0338203 ← 0338203

HOUSING, STARTER

HOUSING, STARTER
$119.95
You save $8.30. $128.25
Ships Immediately
1 Items in stock
Required: 1
7
0435741 - Starter Pulley & Pin Assembly
0435741
0435741 ← 0435741

PULLEY & PIN, STARTER

PULLEY & PIN, STARTER
$67.69
You save $3.56. $71.25
Leaves in 3-5 days
Required: 1
10
 -
← 0

ROPE, STARTER, 65 IN. (1650MM)

ROPE, STARTER, 65 IN. (1650MM)
Notes: (Cut to Length From P/N 322236 - 9/64 in. O.D..)
Items in stock
Required: 1
11
0333710 - Screw
0333710
0333710 ← 0333710

SCREW, STARTER HOUSING

SCREW, STARTER HOUSING
$7.99
You save 6%. $8.50
Ships Immediately
2 Items in stock
Required: 3
14
0339038 - Spindle Assembly
0339038
0339038 ← 0339038

SPINDLE ASSEMBLY

SPINDLE ASSEMBLY
$46.99
You save $20.26. $67.25
Ships Immediately
1 Items in stock
Required: 1
15
0339043 - Screw
0339043
0339043 ← 0339043

SCREW, SPINDLE

SCREW, SPINDLE
$9.50
$9.50
Leaves in 3-5 days
Required: 1
16
0331970 - Friction Starter Pawl Spring
0331970
0331970 ← 0331970

SPRING, FRICTION

SPRING, FRICTION
$12.44
You save 5%. $13.09
Leaves in 3-5 days
Required: 1
17
0338231 - Lockout Link
0338231
0338231 ← 0338231

LINK, LOCKOUT

LINK, LOCKOUT
$9.50
$9.50
Leaves in 3-5 days
Required: 1
19
0338229 - Compression Spring
0338229
0338229 ← 0338229

SPRING, PLUNGER

SPRING, PLUNGER
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 1
20
0121674 - Nut
0121674
0121674 ← 0121674

LOCKNUT, SPINDLE

LOCKNUT, SPINDLE
$8.55
You save 5%. $9.00
Leaves in 3-5 days
Required: 1
21
0339030 - Spring Shield
0339030
0339030 ← 0339030

SHIELD, SPRING

SHIELD, SPRING
$9.98
You save 5%. $10.50
Leaves in 3-5 days
Required: 1
27
0338240 - Seal-Starter Housing
0338240
0338240 ← 0338240

SEAL, HOUSING TO COVER

SEAL, HOUSING TO COVER
$49.95
You save $3.55. $53.50
Leaves in 3-5 days
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
