1998 OMC Stern Drive 7.4 - 74FHPBYC

POWER TRIM & TILT -- 3868843 & 3868849 MODEL TRANSOM MOUNT section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

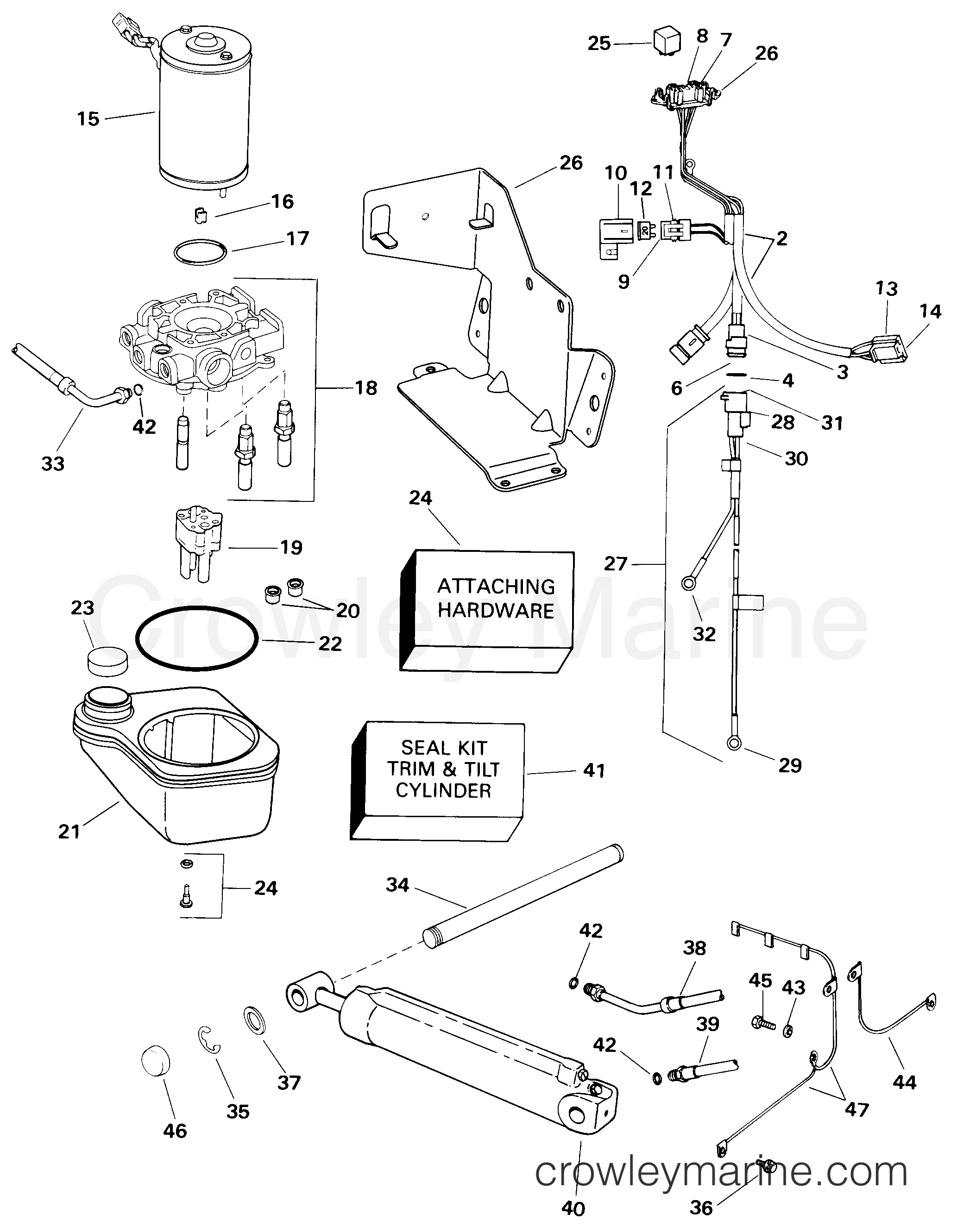

1998 OMC Stern Drive 7.4 - 74FHPBYC POWER TRIM & TILT -- 3868843 & 3868849 MODEL TRANSOM MOUNT section
Use two fingers to zoom
and move the diagram
1998 OMC Stern Drive 7.4 - 74FHPBYC - POWER TRIM & TILT -- 3868843 & 3868849 MODEL TRANSOM MOUNT section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

10
3858186 - Fuse Cap
3858186
3858186 ← 3858186

CAP, FUSE

CAP, FUSE
$.00
You save 100%. $.00
Ships Immediately
5+ Items in stock
Required: 1
15
3858071 - Motor Assembly
3858071
3858071 ← 3858071

MOTOR ASSEMBLY.

MOTOR ASSEMBLY.
$224.99
You save $97.40. $322.39
Ships Immediately
1 Items in stock
Required: 1
17
3858073 - O-Ring
3858073
3858073 ← 3858073

O-RING, MOTOR TO ADAPTER

O-RING, MOTOR TO ADAPTER
$1.99
You save 43%. $3.50
Ships Immediately
1 Items in stock
Required: 1
18
3858074 - Motor To Pump Adapter
3858074
3858074 ← 3858074

ADAPTER, MOTOR TO PUMP

ADAPTER, MOTOR TO PUMP
$188.10
You save $9.90. $198.00
Leaves in 6-8 days
Required: 1
19
3858075 - PUMP AY.
3858075
3858075 ← 3858075

PUMP ASSEMBLY.

PUMP ASSEMBLY.
$189.99
You save $81.65. $271.64
Ships Immediately
1 Items in stock
Required: 1
20
3858076 - Filter
3858076
3858076 ← 3858076

FILTER

FILTER
$11.99
You save 27%. $16.50
Ships Immediately
1 Items in stock
Required: 1
22
3858078 - Seal
3858078
3858078 ← 3858078

SEAL, RESERVOIR TO ADAPTER

SEAL, RESERVOIR TO ADAPTER
$6.99
You save 33%. $10.50
Ships Immediately
1 Items in stock
Required: 1
34
3857431 - Pivot Pin
3857431
3857431 ← 3857431

PIVOT PIN, TILT CYLINDER

PIVOT PIN, TILT CYLINDER
$62.99
You save $27.00. $89.99
Ships Immediately
1 Items in stock
Required: 2
35
3857521 - E-Clip
3857521
3857521 ← 3857521

CLIP, PIVOT PIN

CLIP, PIVOT PIN
$6.26
You save 5%. $6.59
Leaves in 3-5 days
Required: 4
3854248
3854248 - Tilt Limit Spacer
3854248
3854248 ← 3854248

SPACER, TILT LIMIT

SPACER, TILT LIMIT
Notes: Not Shown Limited Cylinder -- 8 1/2 in. (216mm) Full Extension from End Cap to Pivot PinCenter.
$9.95
You save $1.04. $10.99
Leaves in 6-8 days
Required: 2

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
