1998 OMC Stern Drive 7.4 - 74FHPBYC

ALTERNATOR section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

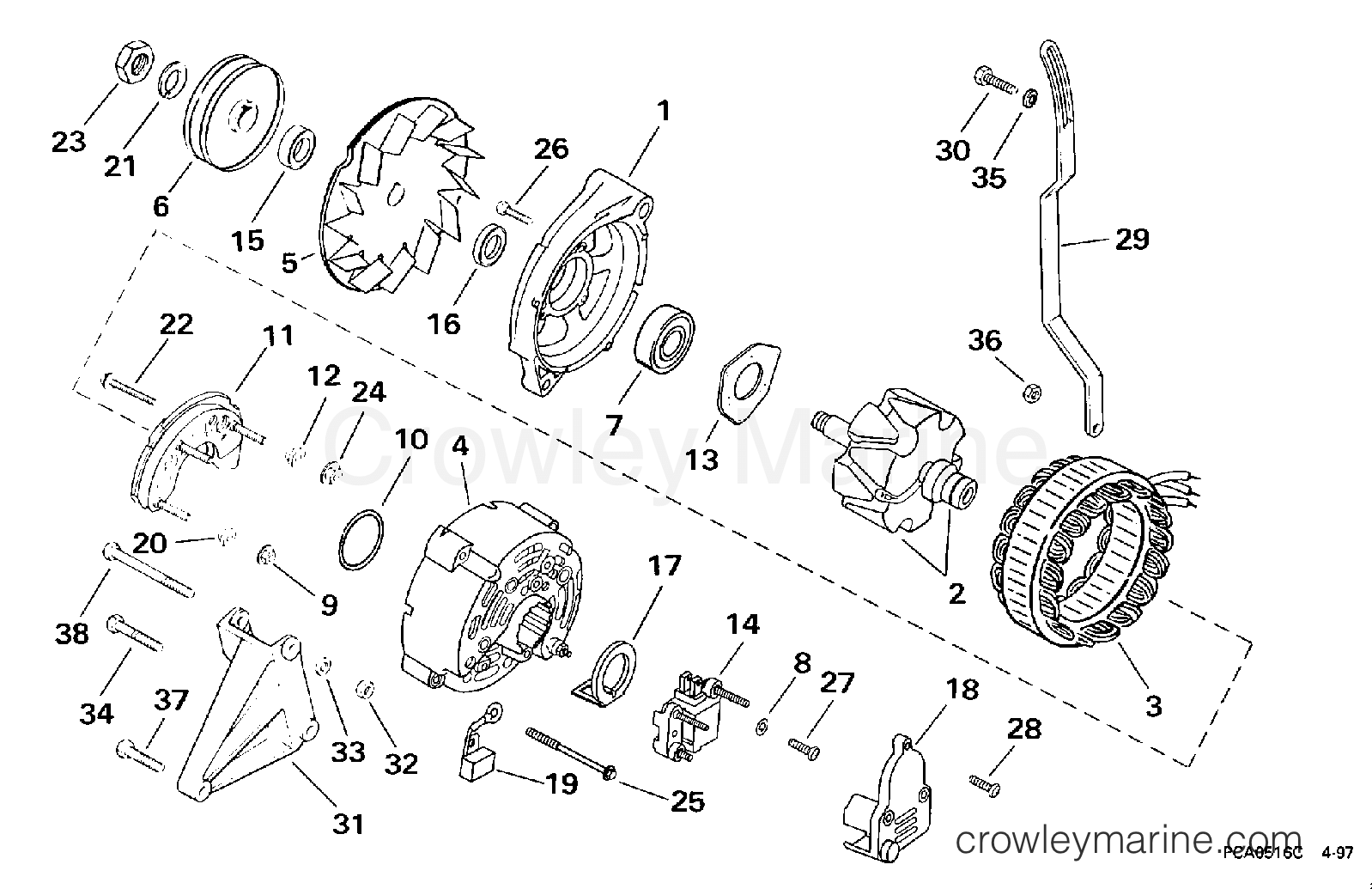

1998 OMC Stern Drive 7.4 - 74FHPBYC ALTERNATOR section
Use two fingers to zoom
and move the diagram
1998 OMC Stern Drive 7.4 - 74FHPBYC - ALTERNATOR section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

2
3857062 - Rotor Assembly
3857062
3857062 ← 3857062

ROTOR ASSEMBLY.

ROTOR ASSEMBLY.
$14.95
$15.00
Leaves in 6-8 days
Required: 1
4
3857064 - Rear Housing
3857064
3857064 ← 3857064

HOUSING, REAR

HOUSING, REAR
$5.95
$6.00
Leaves in 6-8 days
Required: 1
8
 -
← 0

WASHER, REGULATOR

WASHER, REGULATOR
Notes: Contents of 3857245 Hardware Kit
Items in stock
Required: 2
9
 -
← 0

NUT

NUT
Notes: Contents of 3857245 Hardware Kit
Items in stock
Required: 2
10
 -
← 0

RETAINER, BEARING

RETAINER, BEARING
Notes: Contents of 3857245 Hardware Kit
Items in stock
Required: 1
12
 -
← 0

INSULATOR, LARGE

INSULATOR, LARGE
Notes: Contents of 3857245 Hardware Kit
Items in stock
Required: 1
13
 -
← 0

RETAINER, BEARING

RETAINER, BEARING
Notes: Contents of 3857245 Hardware Kit
Items in stock
Required: 1
15
 -
← 0

SPACER, FAN

SPACER, FAN
Notes: Contents of 3857245 Hardware Kit
Items in stock
Required: 1
16
 -
← 0

SPACER, ROTOR

SPACER, ROTOR
Notes: Contents of 3857245 Hardware Kit
Items in stock
Required: 1
17
 -
← 0

INSULATOR

INSULATOR
Notes: Contents of 3857245 Hardware Kit
Items in stock
Required: 1
19
3857066 - Condenser
3857066
3857066 ← 3857066

CAPACITOR

CAPACITOR
$6.18
You save 5%. $6.50
Leaves in 6-8 days
Required: 1
20
 -
← 0

INSULATOR, SMALL

INSULATOR, SMALL
Notes: Contents of 3857245 Hardware Kit
Items in stock
Required: 2
21
 -
← 0

LOCK WASHER, PULLEY

LOCK WASHER, PULLEY
Notes: Contents of 3857245 Hardware Kit
Items in stock
Required: 1
22
 -
← 0

SCREW, RECTIFIER

SCREW, RECTIFIER
Notes: Contents of 3857245 Hardware Kit
Items in stock
Required: 1
23
 -
← 0

NUT, PULLEY

NUT, PULLEY
Notes: Contents of 3857245 Hardware Kit
Items in stock
Required: 1
24
 -
← 0

NUT

NUT
Notes: Contents of 3857245 Hardware Kit
Items in stock
Required: 1
25
 -
← 0

BOLT, THROUGH

BOLT, THROUGH
Notes: Contents of 3857245 Hardware Kit
Items in stock
Required: 4
26
 -
← 0

SCREW, FRONT HOUSING

SCREW, FRONT HOUSING
Notes: Contents of 3857245 Hardware Kit
Items in stock
Required: 3
27
 -
← 0

SCREW, REGULATOR

SCREW, REGULATOR
Notes: Contents of 3857245 Hardware Kit
Items in stock
Required: 2
28
 -
← 0

SCREW, COVER

SCREW, COVER
Notes: Contents of 3857245 Hardware Kit
Items in stock
Required: 1
29
3854572 - Alternator Brace
3854572
3854572 ← 3854572

BRACE, ALTERNATOR

BRACE, ALTERNATOR
$22.80
You save $1.20. $24.00
Leaves in 6-8 days
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
