1997 OMC Stern Drive 7.4 - 744FPLKD

TRANSOM PLATE, FLYWHEEL HOUSING & MOUNTS section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

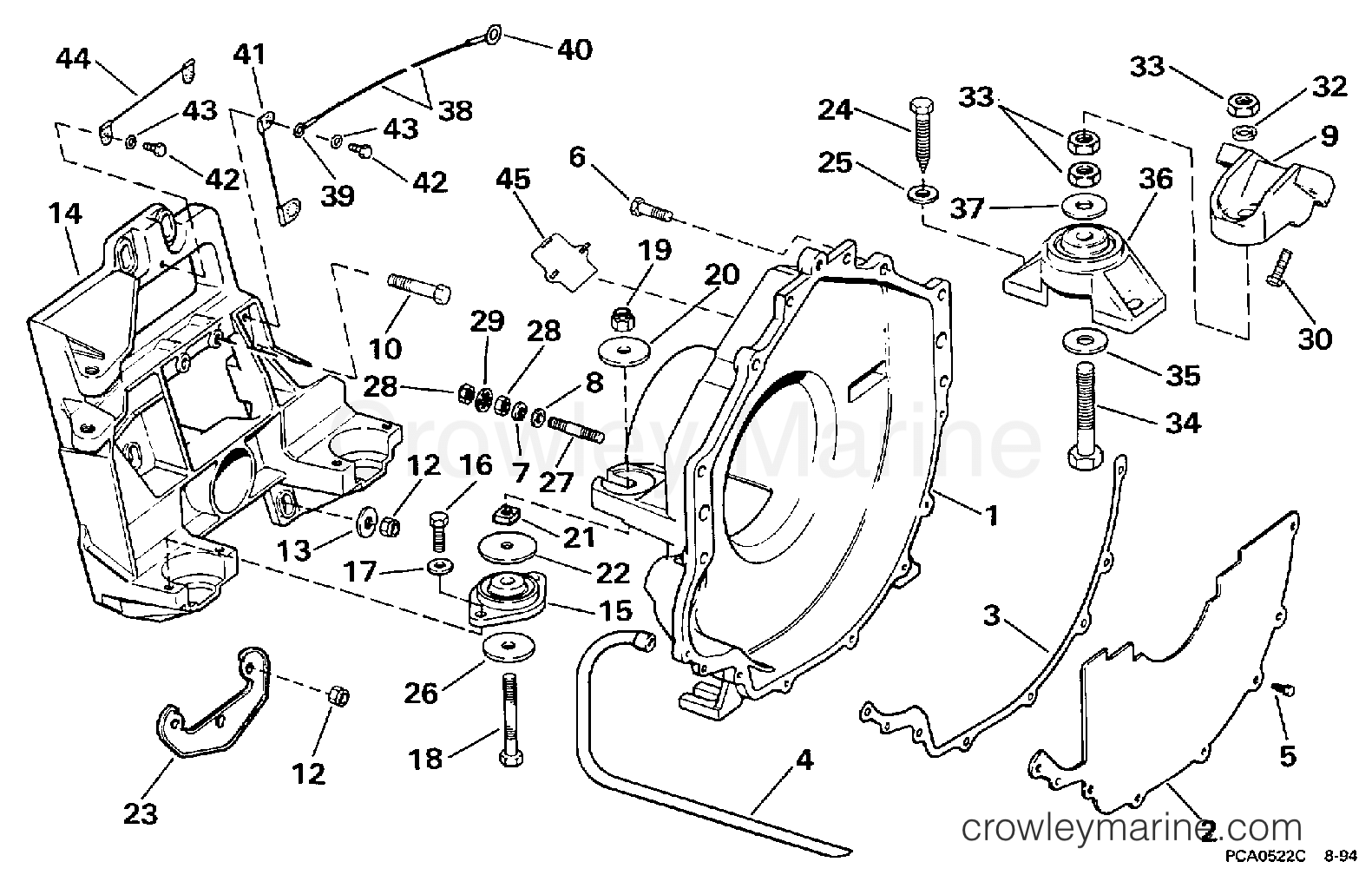

1997 OMC Stern Drive 7.4 - 744FPLKD TRANSOM PLATE, FLYWHEEL HOUSING & MOUNTS section
Use two fingers to zoom
and move the diagram
1997 OMC Stern Drive 7.4 - 744FPLKD - TRANSOM PLATE, FLYWHEEL HOUSING & MOUNTS section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

3
3852834 - Gasket
3852834
3852834 ← 3852834

GASKET, FLYWHEEL

GASKET, FLYWHEEL
$9.99
You save 10%. $11.09
Ships Immediately
1 Items in stock
Required: 1
5
3852421 - Screw
3852421
3852421 ← 3852421

SCREW, FLYWHEEL COVER

SCREW, FLYWHEEL COVER
$3.99
You save 13%. $4.59
Ships Immediately
5+ Items in stock
Required: 7
6
3853266 - Screw
3853266
3853266 ← 3853266

SCREW, PORT, 1 IN.

SCREW, PORT, 1 IN.
$3.41
You save 5%. $3.59
Leaves in 6-8 days
Required: 1
10
3853547 - Screw
3853547
3853547 ← 3853547

SCREW, TRANSOM PLATE

SCREW, TRANSOM PLATE
$3.41
You save 5%. $3.59
Leaves in 6-8 days
Required: 2
20
3852540 - Steering arm Washer
3852540
3852540 ← 3852540

WASHER, REAR MOUNT

WASHER, REAR MOUNT
$16.33
You save 5%. $17.19
Leaves in 6-8 days
Required: 2
21
3852539 - Nut
3852539
3852539 ← 3852539

NUT, REAR MOUNT

NUT, REAR MOUNT
$3.41
You save 5%. $3.59
Leaves in 6-8 days
Required: 2
24
3852475 - Lag Screw
3852475
3852475 ← 3852475

LAG SCREW

LAG SCREW
$5.95
$6.00
Leaves in 6-8 days
Required: 4
25
3852078 - Washer
3852078
3852078 ← 3852078

WASHER, LAG SCREW

WASHER, LAG SCREW
$1.19
You save 5%. $1.25
Leaves in 6-8 days
Required: 4
33
3852021 - Mount bracket Locknut
3852021
3852021 ← 3852021

LOCKNUT

LOCKNUT
$4.59
$4.59
Leaves in 3-5 days
Required: 6
36
3853805 - Front Mount Assembly
3853805
3853805 ← 3853805

FRONT MOUNT

FRONT MOUNT
$184.96
You save $9.73. $194.69
Leaves in 6-8 days
Required: 2

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
