1997 OMC Stern Drive 7.4 - 744FPLKD

TRANSOM MOUNT section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

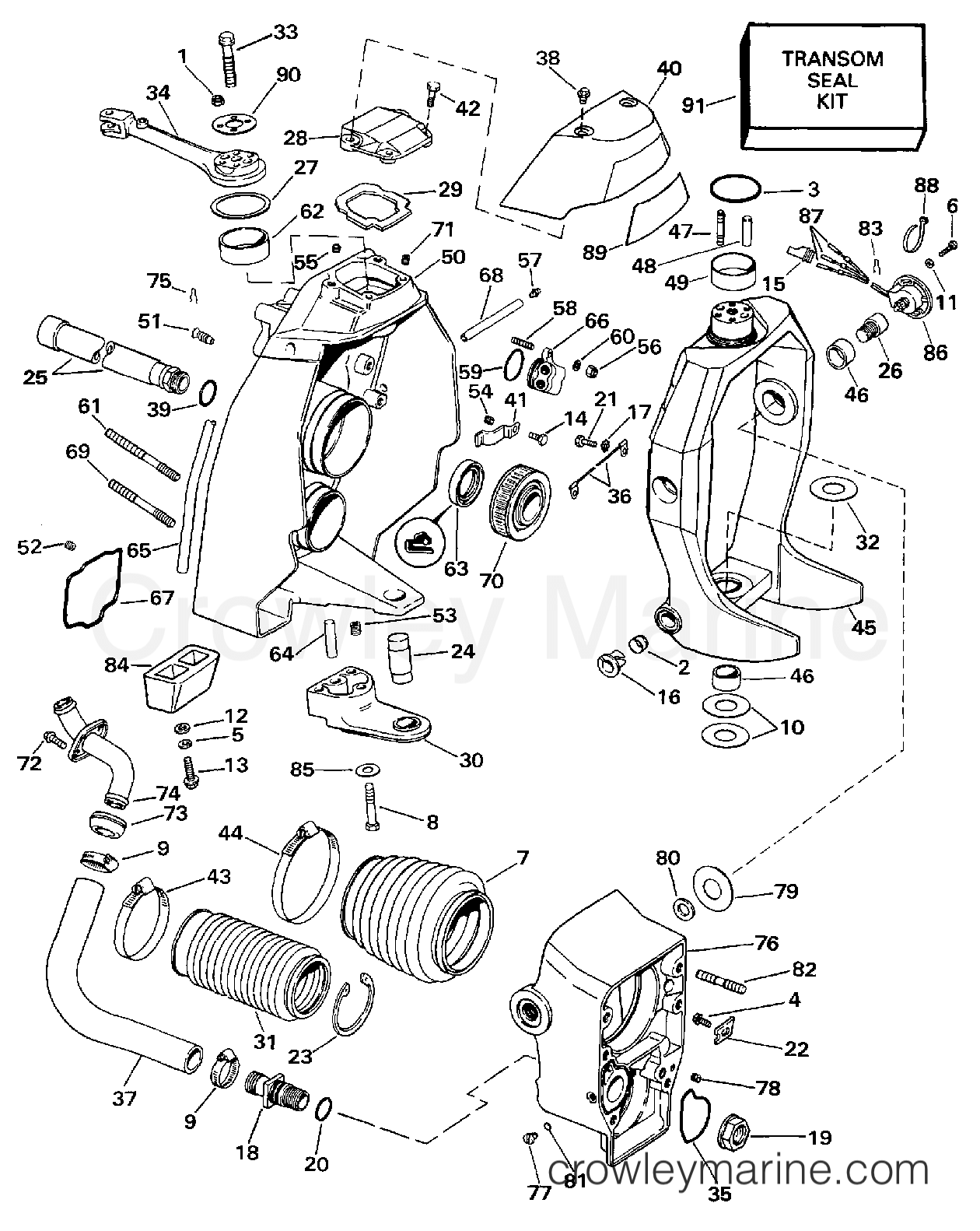

1997 OMC Stern Drive 7.4 - 744FPLKD TRANSOM MOUNT section
Use two fingers to zoom
and move the diagram
1997 OMC Stern Drive 7.4 - 744FPLKD - TRANSOM MOUNT section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

11
3853458 - Washer
3853458
3853458 ← 3853458

WASHER, TRIM SENDER

WASHER, TRIM SENDER
$1.99
You save 5%. $2.09
Leaves in 6-8 days
Required: 2
26
3852316 - Shoulder Screw
3852316
3852316 ← 3852316

SCREW, GIMBAL TO PIVOT

SCREW, GIMBAL TO PIVOT
$31.59
You save $1.66. $33.25
Leaves in 3-5 days
Required: 2
37
3852352 - Water inlet Hose
3852352
3852352 ← 3852352

HOSE, WATER INLET

HOSE, WATER INLET
$19.95
You save $1.80. $21.75
Leaves in 3-5 days
Required: 1
40
3855005 - Cover Assembly Silver
3855005
3855005 ← 3855005

COVER & INSERT

COVER & INSERT
$28.50
You save $1.50. $30.00
Leaves in 6-8 days
Required: 1
42
3857088 - Screw
3857088
3857088 ← 3857088

SCREW, CAP TO GIMBAL

SCREW, CAP TO GIMBAL
$.95
You save 5%. $1.00
Leaves in 6-8 days
Required: 2
61
3852546 - Stud
3852546
3852546 ← 3852546

STUD, TRANSOM, LONG

STUD, TRANSOM, LONG
$14.99
You save 35%. $22.99
Ships Immediately
1 Items in stock
Required: 4
69
3852576 - Stud
3852576
3852576 ← 3852576

STUD, TRANSOM, SHORT

STUD, TRANSOM, SHORT
$11.96
You save 5%. $12.59
Leaves in 6-8 days
Required: 2
72
3852454 - SCREW
3852454
3852454 ← 3852454

SCREW, WATER TUBE

SCREW, WATER TUBE
$2.99
You save 40%. $4.99
Ships Immediately
2 Items in stock
Required: 2
74
3853880 - Water Tube & Retainer Assembly
3853880
3853880 ← 3853880

WATER TUBE & RETAINER

WATER TUBE & RETAINER
$42.27
You save $2.22. $44.49
Leaves in 6-8 days
Required: 1
81
3852523 - "O"-Ring (Plug)
3852523
3852523 ← 3852523

O-RING, PLUG

O-RING, PLUG
$.00
You save 100%. $.00
Ships Immediately
2 Items in stock
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
