1990 OMC Stern Drive 2.3 - 232BMRPWS

UPPER GEAR HOUSING section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

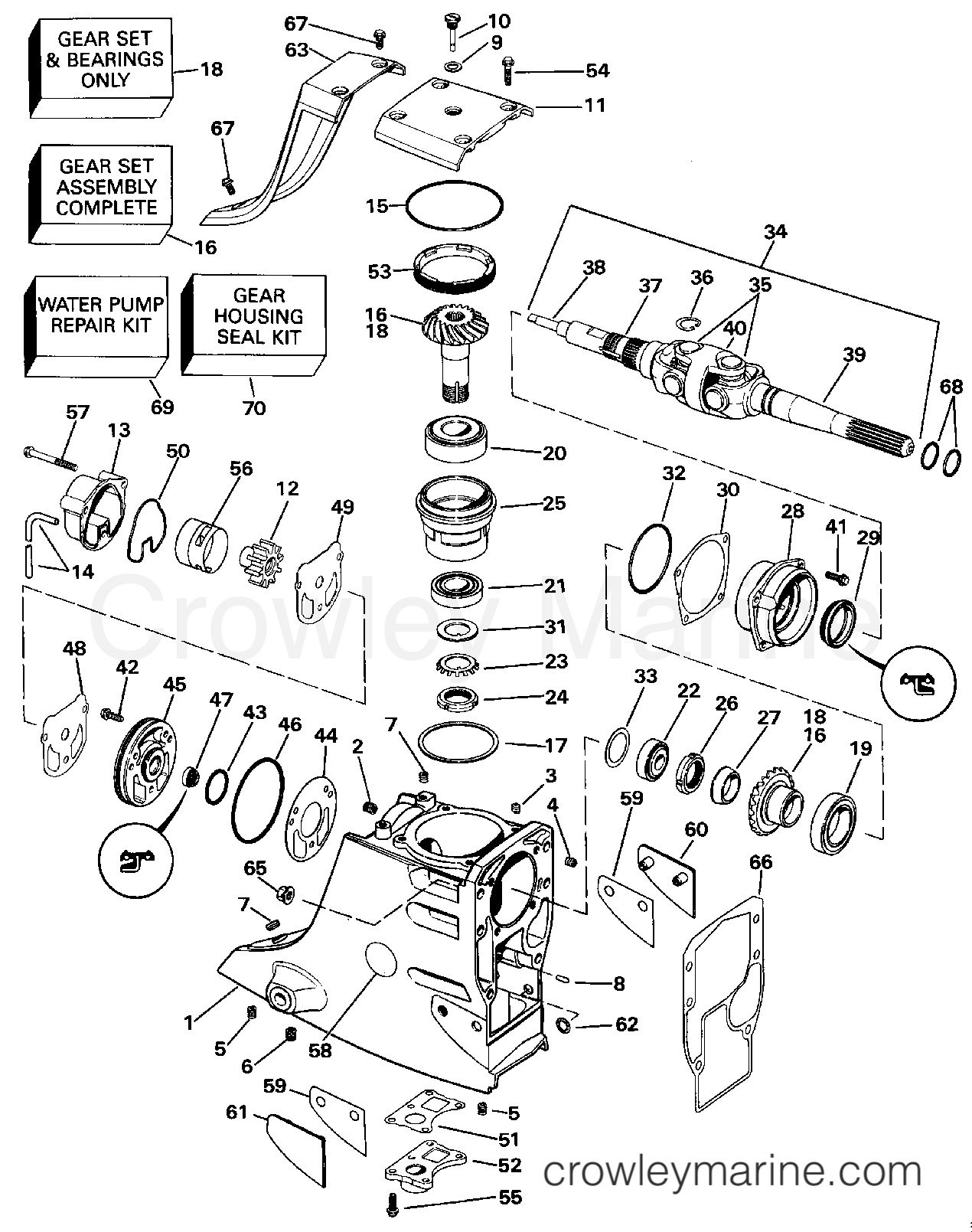

1990 OMC Stern Drive 2.3 - 232BMRPWS UPPER GEAR HOUSING section
Use two fingers to zoom
and move the diagram
1990 OMC Stern Drive 2.3 - 232BMRPWS - UPPER GEAR HOUSING section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

5
0910935 - Propeller shaft retainer Insert
0910935
0910935 ← 0910935

INSERT, GEARCASE

INSERT, GEARCASE
$8.64
You save 5%. $9.09
Leaves in 3-5 days
Required: 5
8
0912137 - Shift Rod Guide
0912137
0912137 ← 0912137

GUIDE, SHIFT ROD

GUIDE, SHIFT ROD
$26.60
You save $1.40. $28.00
Leaves in 6-8 days
Required: 1
18
0984580 - Gear&Pinion 21:21
0984580
0984580 ← 0984580

GEAR SET, 21:21

GEAR SET, 21:21
$878.00
You save $219.50. $1,097.50
Leaves in 3-5 days
Required: 1
20
0983891 - Pinion Roller Bearing Assembly
0983891
0983891 ← 0983891

BEARING, PINION, UPPER

BEARING, PINION, UPPER
$59.95
You save $2.54. $62.49
Leaves in 3-5 days
Required: 1
21
0983892 - Bearing
0983892
0983892 ← 0983892

BEARING, PINION, LOWER

BEARING, PINION, LOWER
$63.26
You save $3.33. $66.59
Leaves in 3-5 days
Required: 1
22
0983878 - U-joint shaft Roller Bearing Assembly
0983878
0983878 ← 0983878

BEARING, U-JOINT SHAFT

BEARING, U-JOINT SHAFT
$54.95
You save $4.54. $59.49
Leaves in 3-5 days
Required: 1
23
0911752 - Retainer
0911752
0911752 ← 0911752

RETAINER, NUT

RETAINER, NUT
$19.95
You save $1.44. $21.39
Leaves in 3-5 days
Required: 1
24
0911753 - Pinion Nut-
0911753
0911753 ← 0911753

NUT, PINION

NUT, PINION
$38.28
You save $2.01. $40.29
Leaves in 6-8 days
Required: 1
26
0911937 - Nut
0911937
0911937 ← 0911937

NUT, GEAR TO U-JOINT

NUT, GEAR TO U-JOINT
$24.95
You save $1.64. $26.59
Leaves in 3-5 days
Required: 1
28
0911683 - Bearing Carrier
0911683
0911683 ← 0911683

BEARING CARRIER, GEAR

BEARING CARRIER, GEAR
$118.75
You save $6.25. $125.00
Leaves in 6-8 days
Required: 1
31
0911697 - Washer
0911697
0911697 ← 0911697

WASHER, PINION

WASHER, PINION
$2.99
$3.09
Ships Immediately
2 Items in stock
Required: 1
33
0911663 - Shim, 0.005"
0911663
0911663 ← 0911663

SHIM, GEAR POSITION, 0.005"

SHIM, GEAR POSITION, 0.005"
$8.99
You save 29%. $12.59
Ships Immediately
5+ Items in stock
Required: 0
35
0912214 - U-Joint
0912214
0912214 ← 0912214

U-JOINT & SNAP RINGS

U-JOINT & SNAP RINGS
Notes: Use 915716 for 1989a and prior. Use 3850812 for 1990 and later.(Use 915716 for 1989a and prior. Use 3850812 for 1990 and later.
$.00
You save 100%. $.00
No Longer Available
Search Nationwide Inventory
Required: 2
38
0911682 - Water Pump Shaft
0911682
0911682 ← 0911682

WATER PUMP SHAFT

WATER PUMP SHAFT
Notes: Use 984264 for Cobra. Use 3854006 for 1990- 93 Clutch cone drive(Use 984264 for Cobra. Use 3854006 for 1990- 93 Clutch cone drive
$.00
You save 100%. $.00
No Longer Available
Search Nationwide Inventory
Required: 1
39
0912212 - Yoke Shaft
0912212
0912212 ← 0912212

YOKE SHAFT

YOKE SHAFT
$308.46
You save $16.23. $324.69
Leaves in 3-5 days
Required: 1
46
0911700 - O-Ring
0911700
0911700 ← 0911700

O-RING, ADAPTER, LARGE

O-RING, ADAPTER, LARGE
$7.99
You save 5%. $8.39
Ships Immediately
2 Items in stock
Required: 1
56
0986464 - Liner Assembly
0986464
0986464 ← 0986464

LINER, WATER PUMP HOUSING

LINER, WATER PUMP HOUSING
$42.99
You save $18.50. $61.49
Ships Immediately
1 Items in stock
Required: 1
69
0986486 - Water Pump Repair Kit
0986486
0986486 ← 0986486

WATER PUMP REPAIR KIT

WATER PUMP REPAIR KIT
$113.61
You save $5.98. $119.59
Leaves in 6-8 days
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
