1988 OMC Stern Drive 2.3 - 232AMRGDE

CRANKCASE ASSEMBLY section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

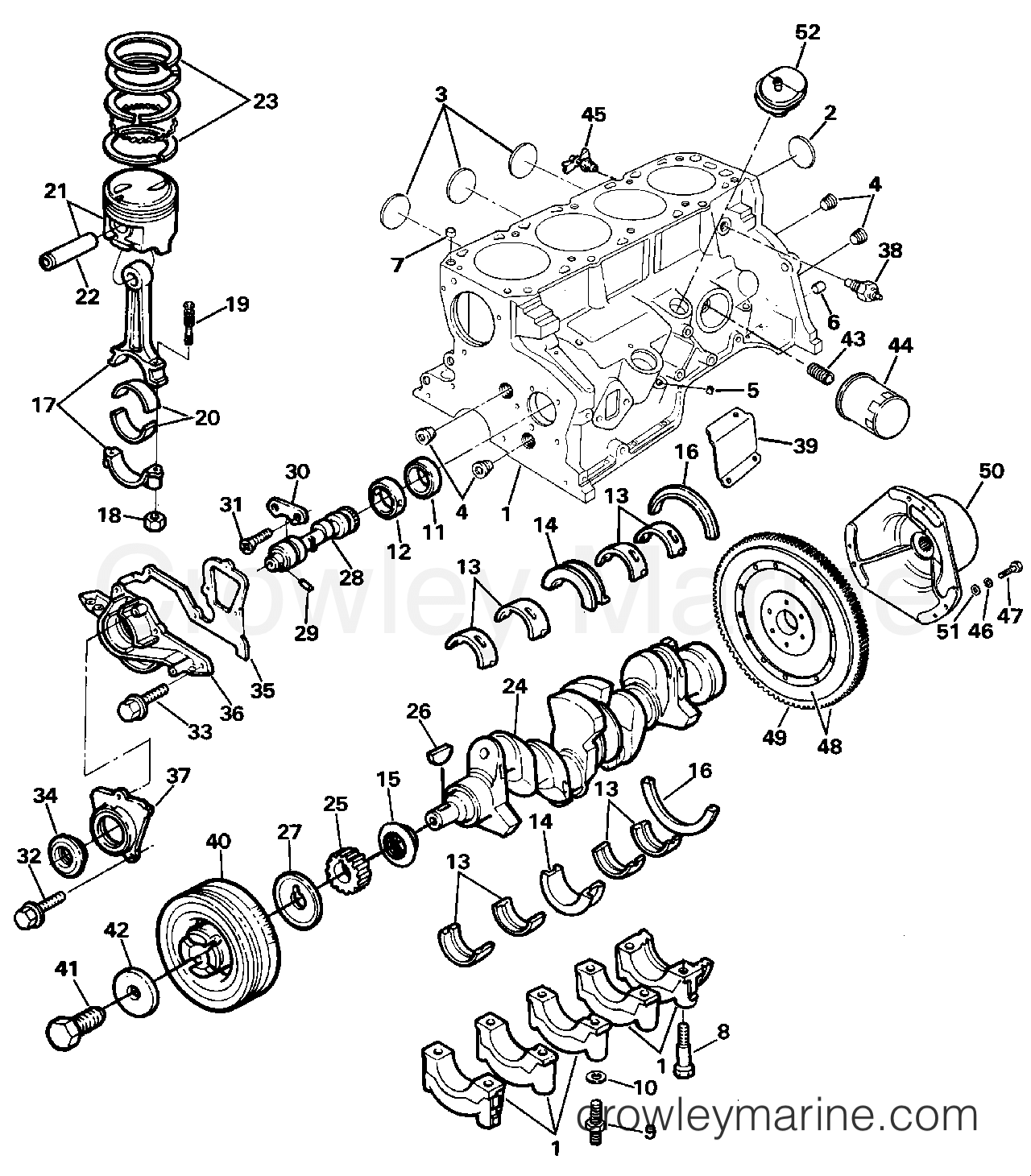

1988 OMC Stern Drive 2.3 - 232AMRGDE CRANKCASE ASSEMBLY section
Use two fingers to zoom
and move the diagram
1988 OMC Stern Drive 2.3 - 232AMRGDE - CRANKCASE ASSEMBLY section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

5
0912481 - Dipstick Hole Plug
0912481
0912481 ← 0912481

PLUG, DIPSTICK HOLE

PLUG, DIPSTICK HOLE
$1.43
You save 5%. $1.50
Leaves in 6-8 days
Required: 1
17
0985314 - Connecting Rod
0985314
0985314 ← 0985314

CONNECTING ROD

CONNECTING ROD
$28.50
You save $1.50. $30.00
Leaves in 6-8 days
Required: 4
21
0985309 - Piston & Pin
0985309
0985309 ← 0985309

PISTON & PIN, BLUE

PISTON & PIN, BLUE
$28.50
You save $1.50. $30.00
Leaves in 6-8 days
Required: 0
26
0913140 - Sprocket Key
0913140
0913140 ← 0913140

KEY, SPROCKET

KEY, SPROCKET
$7.13
You save 5%. $7.50
Leaves in 6-8 days
Required: 1
32
0914246 - Cover To Block Bolt
0914246
0914246 ← 0914246

BOLT, COVER TO BLOCK

BOLT, COVER TO BLOCK
$.95
You save 5%. $1.00
Leaves in 6-8 days
Required: 4
33
0914246 - Cover To Block Bolt
0914246
0914246 ← 0914246

BOLT, COVER TO COVER

BOLT, COVER TO COVER
$.95
You save 5%. $1.00
Leaves in 6-8 days
Required: 3
46
0306453 - Washer
0306453
0306453 ← 0306453

WASHER, COUPLING

WASHER, COUPLING
$2.85
You save 5%. $3.00
Leaves in 6-8 days
Required: 3
47
0912496 - Coupling Screw
0912496
0912496 ← 0912496

SCREW, COUPLING

SCREW, COUPLING
$1.14
You save 5%. $1.20
Leaves in 6-8 days
Required: 3

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
