1982 OMC Stern Drive 5 - 504SPMCCNG

CRANKCASE GROUP section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

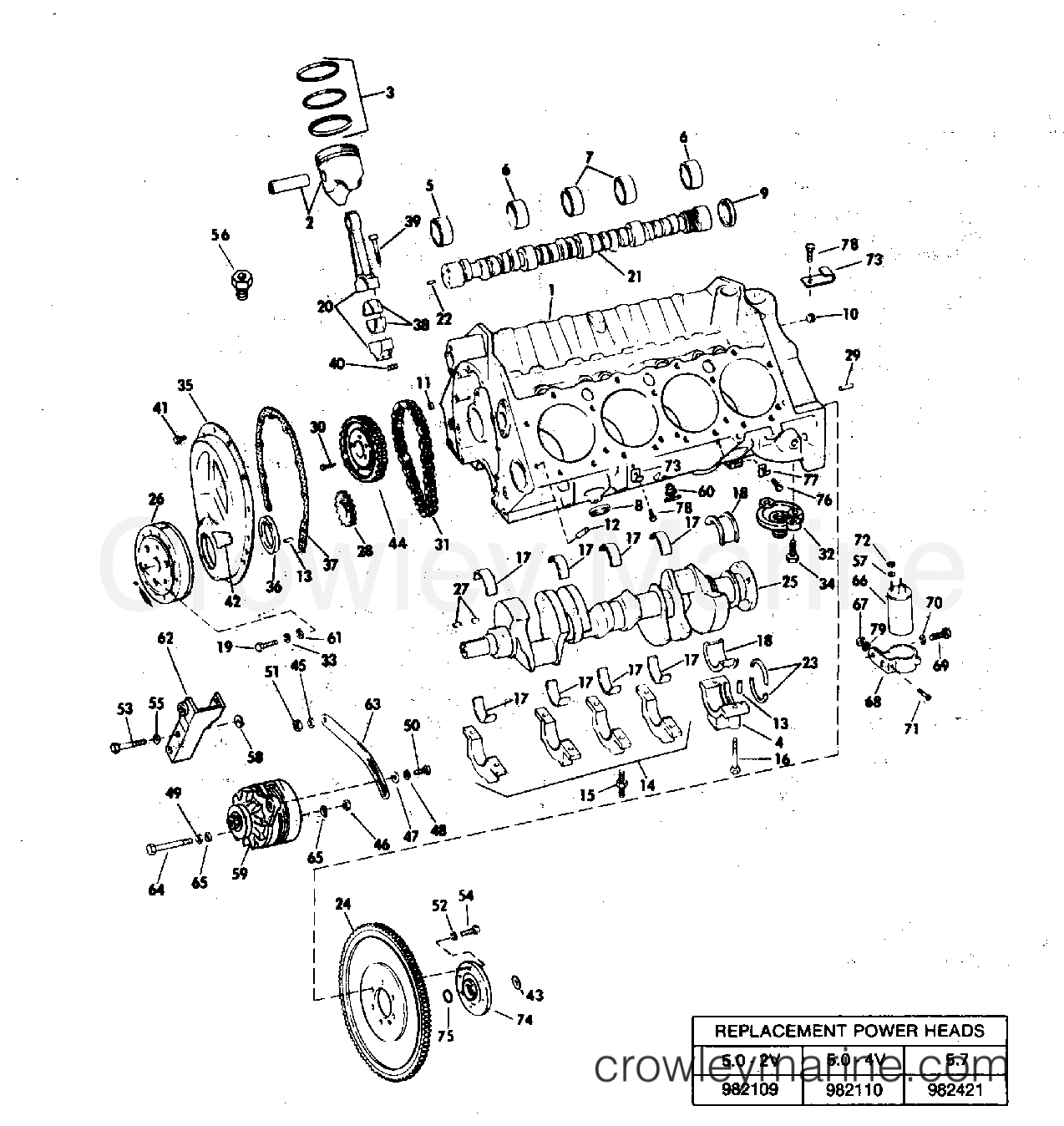

1982 OMC Stern Drive 5 - 504SPMCCNG CRANKCASE GROUP section
Use two fingers to zoom
and move the diagram
1982 OMC Stern Drive 5 - 504SPMCCNG - CRANKCASE GROUP section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

1
 -
← 14019867

CRANKCASE ASSEMBLY

CRANKCASE ASSEMBLY
Notes: 5.0-4V MODELS ONLY 5.7 MODELS ONLY PARTS AVAILABLE FROM LOCAL CHEVROLET DEALERS
Leaves in 3-5 days
5+ Items in stock
Required: 1
1
 -
← 14024311

CRANKCASE ASSEMBLY

CRANKCASE ASSEMBLY
Notes: 5.0-2V MODELS ONLY PARTS AVAILABLE FROM LOCAL CHEVROLET DEALERS
Leaves in 3-5 days
5+ Items in stock
Required: 1
20
 -
← 14095067

CONNECTING ROD ASSEMBLY

CONNECTING ROD ASSEMBLY
Notes: 5.0-2V MODELS ONLY PARTS AVAILABLE FROM LOCAL CHEVROLET DEALERS
Leaves in 3-5 days
5+ Items in stock
Required: 8
20
 -
← 14031310

CONNECTING ROD ASSEMBLY

CONNECTING ROD ASSEMBLY
Notes: 5.7 MODELS ONLY 5.0-4V MODELS ONLY PARTS AVAILABLE FROM LOCAL CHEVROLET DEALERS
Leaves in 3-5 days
5+ Items in stock
Required: 8
25
0361982 - Crankshaft
0361982
0361982 ← 0361982

CRANKSHAFT

CRANKSHAFT
Notes: 5.7 MODELS ONLY 5.0-4V MODELS ONLY PARTS AVAILABLE FROM LOCAL CHEVROLET DEALERS
$.00
You save 100%. $.00
No Longer Available
Search Nationwide Inventory
Required: 1
43
0306405 - Washer
0306405
0306405 ← 0306405

WASHER, SCREW, ADAPTER

WASHER, SCREW, ADAPTER
$3.99
You save 29%. $5.59
Ships Immediately
3 Items in stock
Required: 7
49
0309336 - Lockwasher
0309336
0309336 ← 0309336

WASHER, ALTERNATOR BRACKET

WASHER, ALTERNATOR BRACKET
Notes: MODELS WITHOUT POWER STEERING
$3.80
You save 5%. $4.00
Leaves in 6-8 days
Required: 1
54
0908375 - Coupling to flywheel Bolt
0908375
0908375 ← 0908375

BOLT, FLYWHEEL

BOLT, FLYWHEEL
$9.95
You save 10%. $11.00
Leaves in 6-8 days
Required: 6
57
0550757 - Washer
0550757
0550757 ← 0550757

LOCKWASHER, COIL TRM

LOCKWASHER, COIL TRM
$1.43
You save 5%. $1.50
Leaves in 6-8 days
Required: 2
63
0910370 - Alternator Brace
0910370
0910370 ← 0910370

BRACE, ALTERNATOR

BRACE, ALTERNATOR
Notes: MODELS WITHOUT POWER STEERING
$.00
You save 100%. $.00
Ships Immediately
1 Items in stock
Required: 1
65
0306405 - Washer
0306405
0306405 ← 0306405

WASHER, SCREW, ALTERNATOR TO BRACKET

WASHER, SCREW, ALTERNATOR TO BRACKET
Notes: MODELS WITHOUT POWER STEERING
$3.99
You save 29%. $5.59
Ships Immediately
3 Items in stock
Required: 2
71
0306519 - Screw
0306519
0306519 ← 0306519

SCREW, COIL CLAMP

SCREW, COIL CLAMP
$1.14
You save 5%. $1.20
Leaves in 6-8 days
Required: 1
75
0909567 - O-Ring
0909567
0909567 ← 0909567

O-RING

O-RING
$5.50
$5.50
Leaves in 6-8 days
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
