1982 OMC Stern Drive 5 - 504SPMCCNG

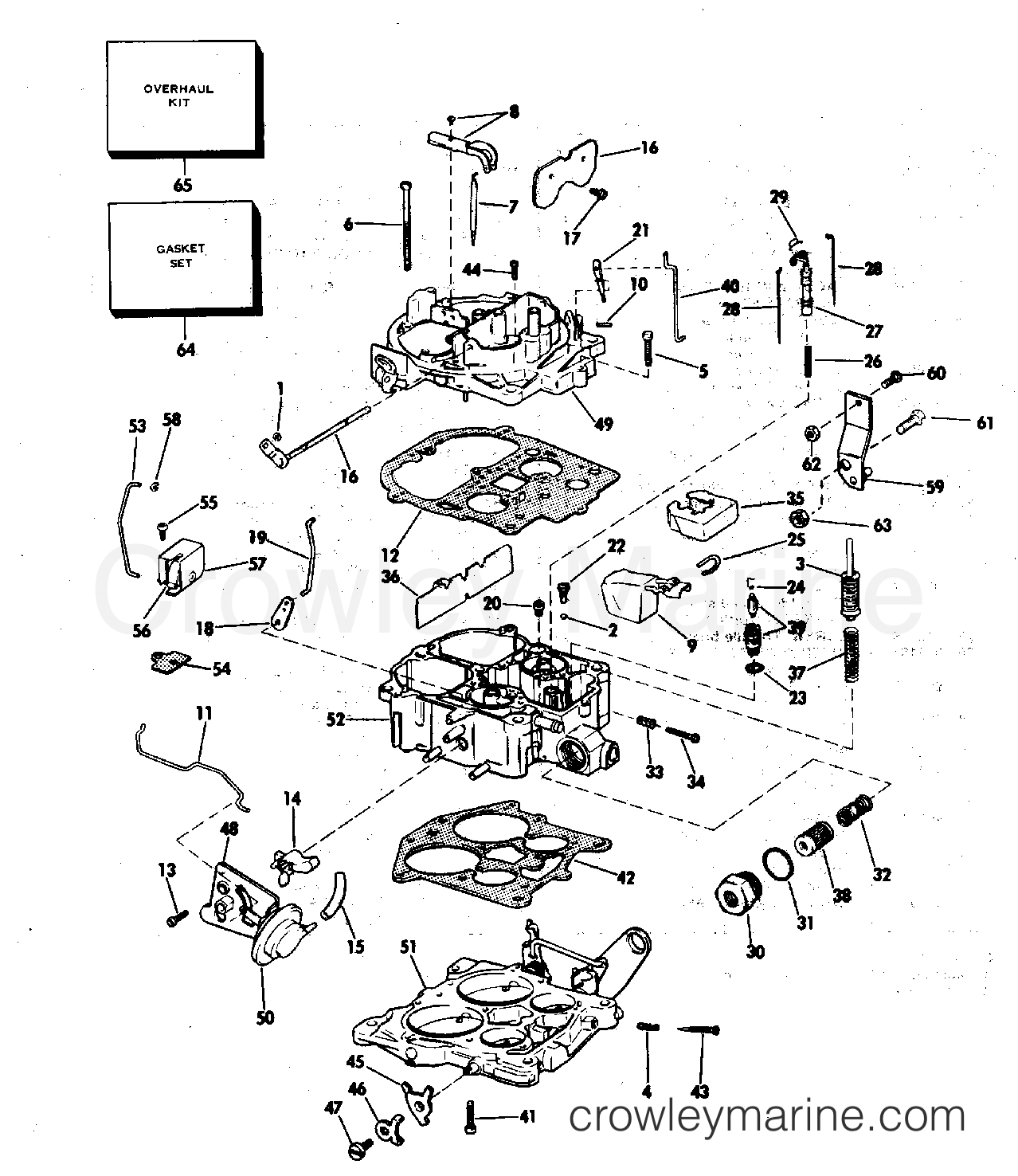

CARBURETOR GROUP 5.0-4V 5.7 LITRE section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1982 OMC Stern Drive 5 - 504SPMCCNG CARBURETOR GROUP 5.0-4V 5.7 LITRE section
Use two fingers to zoom
and move the diagram
1982 OMC Stern Drive 5 - 504SPMCCNG - CARBURETOR GROUP 5.0-4V 5.7 LITRE section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

1
 -
← 0

CLIP, VACUUM, CHOKE & PUMP ROD

CLIP, VACUUM, CHOKE & PUMP ROD
Notes: PARTS AVAILABLE FROM LOCAL CHEVROLET DEALERS
Items in stock
Required: 1
2
 -
← 0

BALL, PUMP DISCHARGE

BALL, PUMP DISCHARGE
Notes: PARTS AVAILABLE FROM LOCAL CHEVROLET DEALERS
Items in stock
Required: 1
3
 -
← 0

PUMP ASSEMBLY

PUMP ASSEMBLY
Notes: PARTS AVAILABLE FROM LOCAL CHEVROLET DEALERS
Items in stock
Required: 1
5
0314521 - Air Horn Screw
0314521
0314521 ← 0314521

SCREW, AIR HORN

SCREW, AIR HORN
$1.19
You save 5%. $1.25
Leaves in 6-8 days
Required: 5
6
0314560 - Air Horn Screw
0314560
0314560 ← 0314560

SCREW, AIR HORN

SCREW, AIR HORN
$.95
You save 5%. $1.00
Leaves in 6-8 days
Required: 2
7
0910332 - Secondary Metering Rod
0910332
0910332 ← 0910332

METERING ROD, SECONDARY

METERING ROD, SECONDARY
$17.99
You save 28%. $25.00
Ships Immediately
1 Items in stock
Required: 2
10
 -
← 0

ROLL PIN, PUMP LVR HINGE

ROLL PIN, PUMP LVR HINGE
Notes: PARTS AVAILABLE FROM LOCAL CHEVROLET DEALERS
Items in stock
Required: 1
12
 -
← 0

GASKET, AIR HORN

GASKET, AIR HORN
Notes: PARTS AVAILABLE FROM LOCAL CHEVROLET DEALERS
Items in stock
Required: 1
15
0314531 - Vacuum Hose
0314531
0314531 ← 0314531

HOSE, VACUUM

HOSE, VACUUM
$8.55
You save 5%. $9.00
Leaves in 6-8 days
Required: 1
19
0314535 - Choke Rod
0314535
0314535 ← 0314535

ROD, CHOKE

ROD, CHOKE
$14.95
You save $1.55. $16.50
Leaves in 6-8 days
Required: 1
20
 -
← 0

JET, PRIMARY

JET, PRIMARY
Items in stock
Required: 2
23
 -
← 0

GASKET, NEEDLE SEAT

GASKET, NEEDLE SEAT
Notes: PARTS AVAILABLE FROM LOCAL CHEVROLET DEALERS
Items in stock
Required: 1
24
 -
← 0

PULL CLIP, FLOAT NEEDLE

PULL CLIP, FLOAT NEEDLE
Notes: PARTS AVAILABLE FROM LOCAL CHEVROLET DEALERS
Items in stock
Required: 1
31
 -
← 0

GASKET, FILTER NUT

GASKET, FILTER NUT
Notes: PARTS AVAILABLE FROM LOCAL CHEVROLET DEALERS
Items in stock
Required: 1
37
 -
← 0

SPRING, PUMP RETAINER

SPRING, PUMP RETAINER
Notes: PARTS AVAILABLE FROM LOCAL CHEVROLET DEALERS
Items in stock
Required: 1
39
 -
← 0

NEEDLE & SEAT ASSEMBLY

NEEDLE & SEAT ASSEMBLY
Notes: PARTS AVAILABLE FROM LOCAL CHEVROLET DEALERS
Items in stock
Required: 1
41
0316307 - Throttle Body Screw
0316307
0316307 ← 0316307

SCREW, THROTTLE BODY

SCREW, THROTTLE BODY
$.95
You save 5%. $1.00
Leaves in 6-8 days
Required: 2
42
 -
← 0

IDLE NEEDLE SET

IDLE NEEDLE SET
Notes: PARTS AVAILABLE FROM LOCAL CHEVROLET DEALERS
Items in stock
Required: 1
43
 -
← 0

IDLE NEEDLE SET

IDLE NEEDLE SET
Notes: PARTS AVAILABLE FROM LOCAL CHEVROLET DEALERS
Items in stock
Required: 1
44
0314522 - Air Horn Screw
0314522
0314522 ← 0314522

SCREW, AIR HORN

SCREW, AIR HORN
$1.43
You save 5%. $1.50
Leaves in 6-8 days
Required: 2
46
0314562 - Fast Idle Lever
0314562
0314562 ← 0314562

LEVER, FAST IDLE

LEVER, FAST IDLE
$7.60
You save 5%. $8.00
Leaves in 6-8 days
Required: 1
0314564
0314564 - AIR VALVE SPRING & CAM KIT
0314564
0314564 ← 0314564

AIR VALVE SPRING & CAM KIT

AIR VALVE SPRING & CAM KIT
Notes: Not Shown
$12.99
You save 29%. $18.21
Ships Immediately
2 Items in stock
Required: 1
49
 -
← 0

AIR HORN ASSEMBLY

AIR HORN ASSEMBLY
Notes: NO PART NUMBER
Items in stock
Required: 1
51
 -
← 0

THROTTLE BODY ASSEMBLY

THROTTLE BODY ASSEMBLY
Notes: NO PART NUMBER
Items in stock
Required: 1
52
 -
← 0

FLOAT BOWL ASSEMBLY

FLOAT BOWL ASSEMBLY
Notes: NO PART NUMBER
Items in stock
Required: 1
