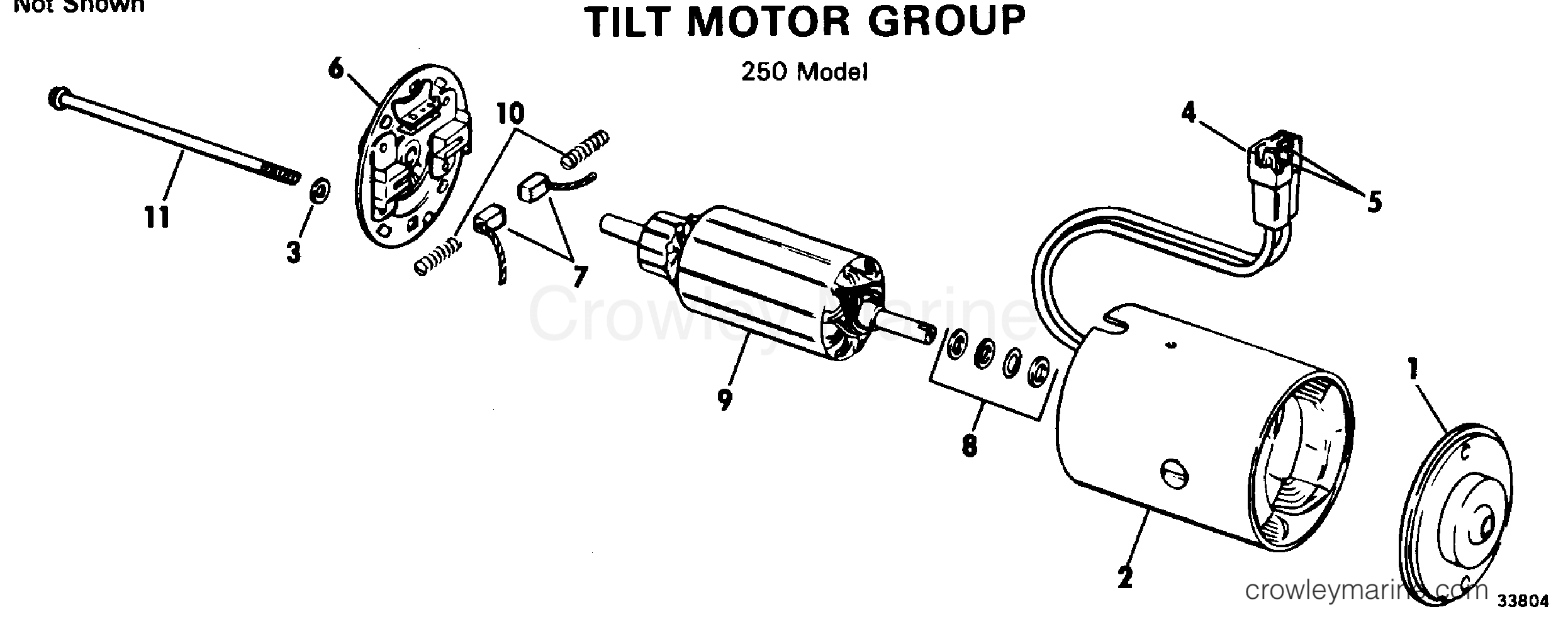

1979 Stern Drive 260 - 990262S1 TILT MOTOR GROUP 250 MODEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1979 Stern Drive 260 - 990262S1 - TILT MOTOR GROUP 250 MODEL 1979 Stern Drive 260 - 990262S1 - TILT MOTOR GROUP 250 MODEL
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

0382138
Tilt Motor Assembly
0382138 ← 0382138

TILT MOTOR ASSEMBLY

Notes:NOT SHOWNPARTS AVAILABLE FROM LOCAL CHEVROLET DEALER
$298.77
You save $15.72. $314.49
Cross Ship
3
SEAL, Washer
0312013 ← 0312013

HOUSING

Notes:PARTS AVAILABLE FROM LOCAL CHEVROLET DEALER
$2.84
You save 5%. $2.99
Cross Ship
4
Terminal Housing
0510472 ← 0510472

HOUSING

Notes:PARTS AVAILABLE FROM LOCAL CHEVROLET DEALER
$2.84
You save 5%. $2.99
Cross Ship
5
Terminal
0510470 ← 0510470

TERMINAL

Notes:PARTS AVAILABLE FROM LOCAL CHEVROLET DEALER
$5.55
Cross Ship
9
Armature
0382544 ← 0382544

ARMATURE ASSEMBLY

Notes:PARTS AVAILABLE FROM LOCAL CHEVROLET DEALER
$16.99
Cross Ship
11
Screw Package
0383402 ← 0383402

THRU BOLT PACKAGE

$14.99
You save 21%. $18.99
Ships immediately
5+ in stock

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
