1978 OMC Stern Drive 240 - 990250P

INTERMEDIATE HOUSING GROUP section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

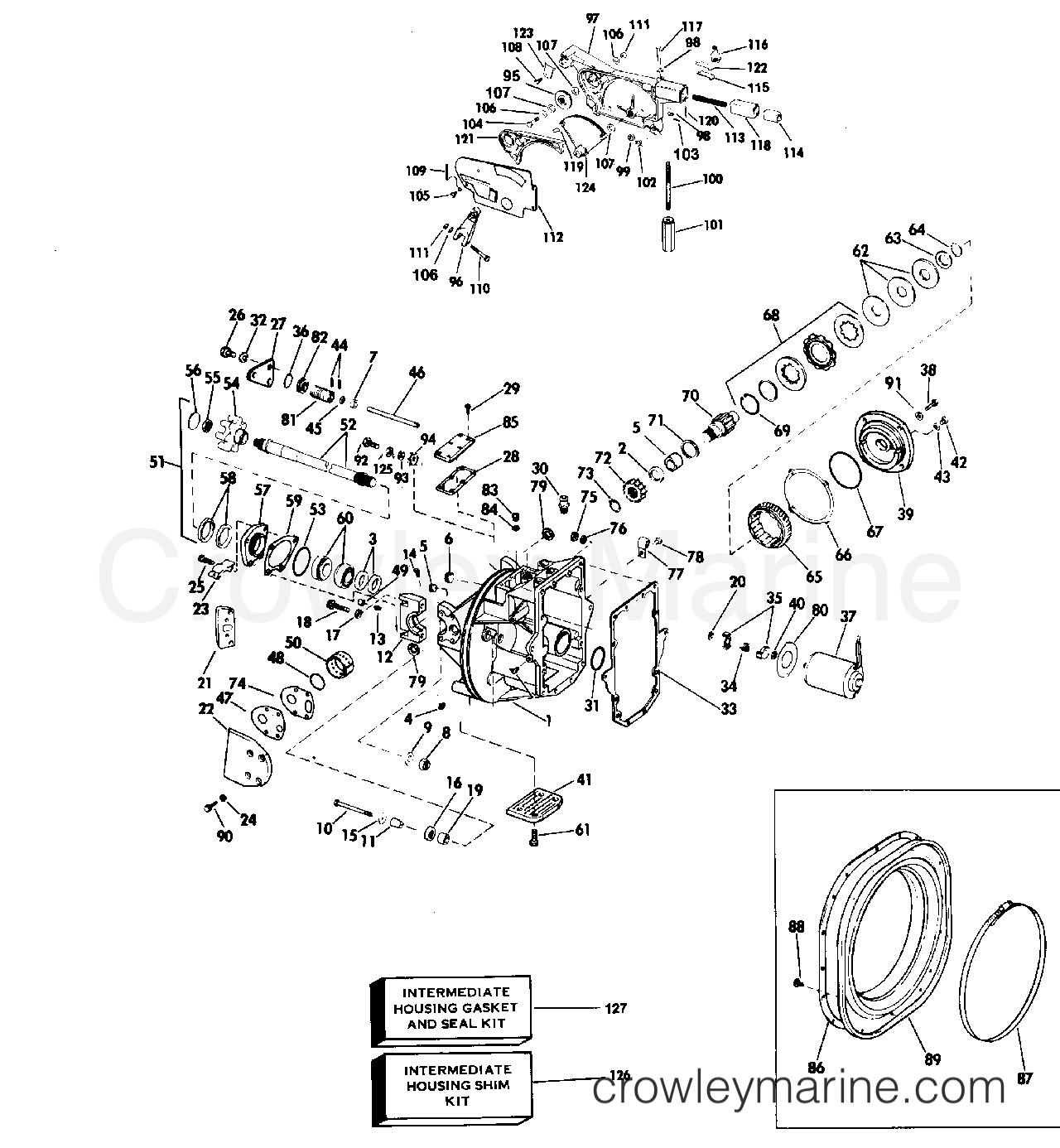

1978 OMC Stern Drive 240 - 990250P INTERMEDIATE HOUSING GROUP section
Use two fingers to zoom
and move the diagram
1978 OMC Stern Drive 240 - 990250P - INTERMEDIATE HOUSING GROUP section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

6
0908276 - Intake Manifold
0908276
0908276 ← 0908276

PLUG, WATER PASSAGE

PLUG, WATER PASSAGE
$11.99
You save 32%. $17.69
Ships Immediately
3 Items in stock
Required: 3
9
0310055 - Washer
0310055
0310055 ← 0310055

WASHER

WASHER
$.99
You save 34%. $1.50
Ships Immediately
2 Items in stock
Required: 0
10
0318803 - Screw
0318803
0318803 ← 0318803

SCREW

SCREW
$1.19
You save 5%. $1.25
Leaves in 6-8 days
Required: 1
11
0908853 - Plug
0908853
0908853 ← 0908853

PLUG

PLUG
$3.80
You save 5%. $4.00
Leaves in 6-8 days
Required: 1
13
0908768 - 90 degree Fitting, lubrication
0908768
0908768 ← 0908768

LUBRICATION FITTING

LUBRICATION FITTING
$16.86
You save 5%. $17.75
Leaves in 3-5 days
Required: 2
15
0902041 - Screw Plug Washer
0902041
0902041 ← 0902041

WASHER, SCREW PLUG

WASHER, SCREW PLUG
$1.43
You save 5%. $1.50
Leaves in 6-8 days
Required: 1
19
0908933 - Bushing
0908933
0908933 ← 0908933

BUSHING

BUSHING
$19.95
$20.00
Leaves in 6-8 days
Required: 1
27
0909387 - Retainer Plate
0909387
0909387 ← 0909387

RETAINER PLATE

RETAINER PLATE
$11.88
You save 5%. $12.50
Leaves in 6-8 days
Required: 1
28
0313246 - Gasket
0313246
0313246 ← 0313246

GASKET, COVER

GASKET, COVER
$4.75
$4.75
Leaves in 3-5 days
Required: 1
29
0307195 - Screw
0307195
0307195 ← 0307195

SCREW, COVER TO HOUSING

SCREW, COVER TO HOUSING
$.99
You save 18%. $1.20
Ships Immediately
5+ Items in stock
Required: 6
30
0908196 - Housing Nipple
0908196
0908196 ← 0908196

NIPPLE, HOUSING

NIPPLE, HOUSING
$14.95
You save $1.55. $16.50
Leaves in 6-8 days
Required: 1
37
0382138 - Tilt Motor Assembly
0382138
0382138 ← 0382138

TILT MOTOR ASSEMBLY

TILT MOTOR ASSEMBLY
$267.42
You save $14.07. $281.49
Leaves in 3-5 days
Required: 1
49
0908247 - Cap
0908247
0908247 ← 0908247

CAP, FITTING

CAP, FITTING
$2.99
You save 25%. $4.00
Ships Immediately
1 Items in stock
Required: 4
52
0909044 - Driveshaft
0909044
0909044 ← 0909044

DRIVESHAFT

DRIVESHAFT
$318.49
You save $16.76. $335.25
Leaves in 3-5 days
Required: 1
53
0908383 - Retainer O-Ring
0908383
0908383 ← 0908383

O-RING, RETAINER

O-RING, RETAINER
$3.22
You save 5%. $3.39
Leaves in 3-5 days
Required: 1
59
0909503 - Shim .003
0909503
0909503 ← 0909503

SHIM, SEAL RETAINER, 003

SHIM, SEAL RETAINER, 003
$24.99
You save $12.51. $37.50
Ships Immediately
1 Items in stock
Required: 0
59
0909505 - Shim .005
0909505
0909505 ← 0909505

SHIM, SEAL RETAINER, 005

SHIM, SEAL RETAINER, 005
$5.99
You save 25%. $8.00
Ships Immediately
1 Items in stock
Required: 0
59
0909509 - Shim .009
0909509
0909509 ← 0909509

SHIM, SEAL RETAINER, 009

SHIM, SEAL RETAINER, 009
$3.99
You save 37%. $6.30
Ships Immediately
1 Items in stock
Required: 0
59
0909510 - Seal retainer Shim .010
0909510
0909510 ← 0909510

SHIM, SEAL RETAINER, 010

SHIM, SEAL RETAINER, 010
$5.99
You save 34%. $9.10
Ships Immediately
2 Items in stock
Required: 0
61
0312978 - Screw
0312978
0312978 ← 0312978

SCREW, GROUND PLATE

SCREW, GROUND PLATE
$11.16
You save 5%. $11.75
Leaves in 3-5 days
Required: 4
65
0308806 - Worm Wheel
0308806
0308806 ← 0308806

WORM WHEEL

WORM WHEEL
$74.95
You save $5.05. $80.00
Leaves in 6-8 days
Required: 1
0980292
0980292 - Shim Pack
0980292
0980292 ← 0980292

TILT CLUTCH SHIM PGK

TILT CLUTCH SHIM PGK
Notes: Not Shown
$27.55
You save $1.45. $29.00
Leaves in 6-8 days
Required: 1
72
0308453 - Gear
0308453
0308453 ← 0308453

QUADRANT GEAR

QUADRANT GEAR
$79.99
You save $33.90. $113.89
Ships Immediately
1 Items in stock
Required: 1
75
0313457 - Support Screw Nut
0313457
0313457 ← 0313457

NUT, ADAPTER STUD

NUT, ADAPTER STUD
$2.85
You save 5%. $3.00
Leaves in 6-8 days
Required: 14
76
0306453 - Washer
0306453
0306453 ← 0306453

WASHER, ADAPTER STUD

WASHER, ADAPTER STUD
$2.85
You save 5%. $3.00
Leaves in 6-8 days
Required: 14
83
0313224 - Oil Fill Screw Plug
0313224
0313224 ← 0313224

SCREW PLUG, OIL FILL

SCREW PLUG, OIL FILL
$22.80
You save $1.20. $24.00
Leaves in 6-8 days
Required: 1
85
0313247 - Oil Reservoir Cover
0313247
0313247 ← 0313247

COVER, OIL RESERVOIR

COVER, OIL RESERVOIR
$7.60
You save 5%. $8.00
Leaves in 6-8 days
Required: 1
98
0303887 - Washer
0303887
0303887 ← 0303887

WASHER, PIN PAWL

WASHER, PIN PAWL
$4.75
$4.75
Leaves in 3-5 days
Required: 2
108
0318468 - Rectifier Mounting Screw
0318468
0318468 ← 0318468

SCREW, SPRING

SCREW, SPRING
$3.99
You save 20%. $5.00
Ships Immediately
1 Items in stock
Required: 1
109
0319658 - Cotter Pin
0319658
0319658 ← 0319658

COTTER PIN, RACK TO HOUSING

COTTER PIN, RACK TO HOUSING
$1.99
You save 13%. $2.29
Ships Immediately
5+ Items in stock
Required: 1
110
0600014 - Screw
0600014
0600014 ← 0600014

SCREW, LEVER ARM

SCREW, LEVER ARM
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 1
111
0313022 - Lock Nut
0313022
0313022 ← 0313022

NUT, LEVER ARM PULLEY

NUT, LEVER ARM PULLEY
$7.99
You save 11%. $9.00
Ships Immediately
4 Items in stock
Required: 2
116
0909336 - Tensioner Spring
0909336
0909336 ← 0909336

SPRING, TENSIONER

SPRING, TENSIONER
$8.55
You save 5%. $9.00
Leaves in 6-8 days
Required: 1
119
0910042 - Hitch Pin
0910042
0910042 ← 0910042

HITCH PIN, CABLE RETAINER

HITCH PIN, CABLE RETAINER
$11.99
You save 12%. $13.59
Ships Immediately
5+ Items in stock
Required: 2
121
0909477 - Cables Guide
0909477
0909477 ← 0909477

GUIDE, CABLES

GUIDE, CABLES
$74.95
You save $5.05. $80.00
Leaves in 6-8 days
Required: 1
126
0982053 - Shim Kit-Intermediate Housing
0982053
0982053 ← 0982053

INTER. HOUSING SHIM KIT

INTER. HOUSING SHIM KIT
$67.99
You save $29.84. $97.83
Ships Immediately
2 Items in stock
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
