1978 OMC Stern Drive 120 - 990242D

UPPER GEARCASE GROUP section

Change Section

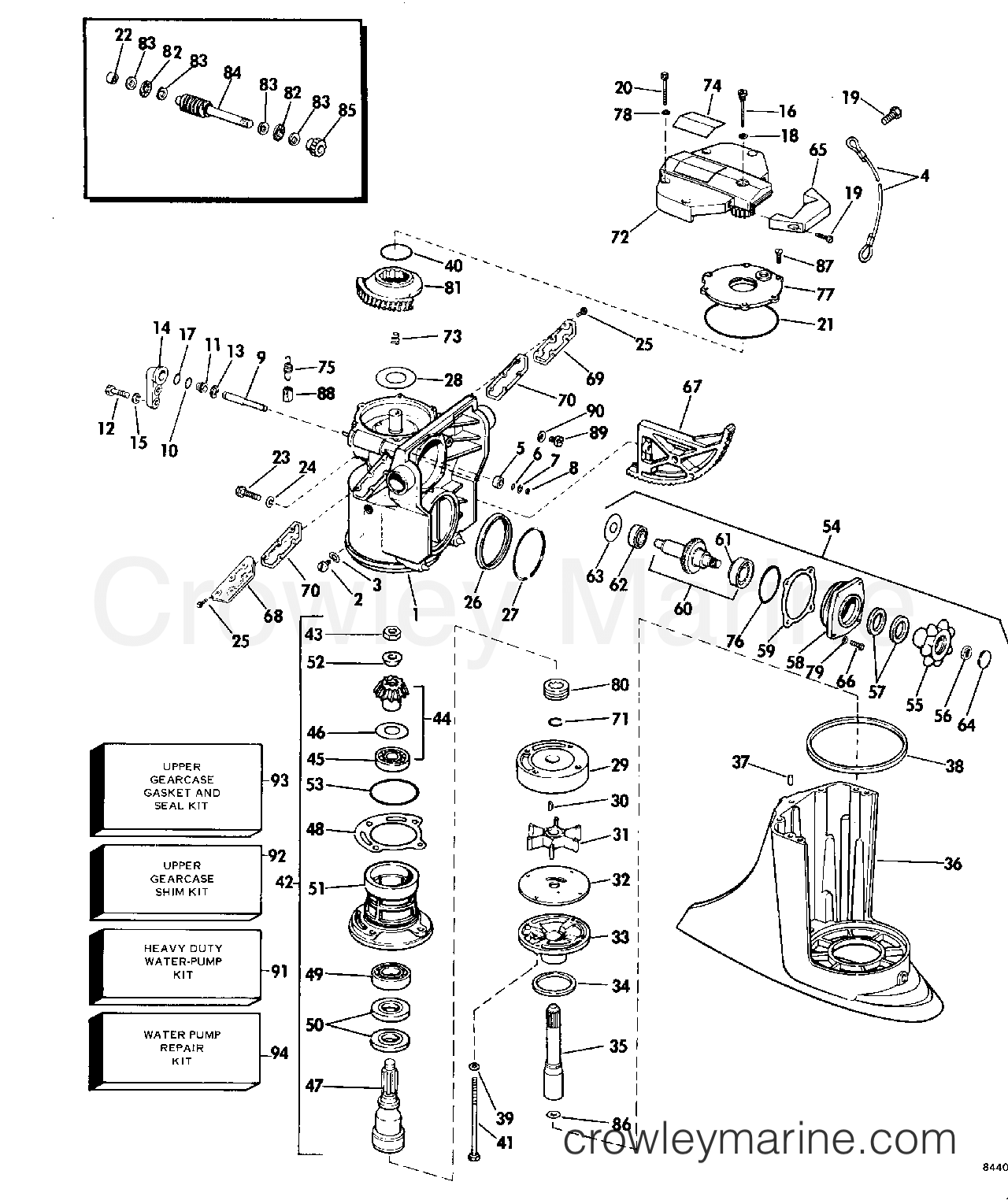

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1978 OMC Stern Drive 120 - 990242D UPPER GEARCASE GROUP section
Use two fingers to zoom
and move the diagram
1978 OMC Stern Drive 120 - 990242D - UPPER GEARCASE GROUP section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

5
0308883 - Bushing
0308883
0308883 ← 0308883

BUSHING, RETAINER

BUSHING, RETAINER
$19.95
You save $1.74. $21.69
Leaves in 6-8 days
Required: 1
6
0909048 - Seal
0909048
0909048 ← 0909048

SEAL RING, SHAFT

SEAL RING, SHAFT
$2.99
You save 17%. $3.59
Ships Immediately
5+ Items in stock
Required: 1
9
0908890 - Spacer Shaft
0908890
0908890 ← 0908890

SPACER SHAFT

SPACER SHAFT
Notes: MECHANICAL (PUSH PULL) STEERING ONLY
$34.99
You save $15.01. $50.00
Ships Immediately
1 Items in stock
Required: 1
10
0909139 - Retainer Quad Ring
0909139
0909139 ← 0909139

QUAD RING, RETAINER

QUAD RING, RETAINER
$2.99
You save 17%. $3.59
Ships Immediately
5+ Items in stock
Required: 1
11
0908871 - Retainer
0908871
0908871 ← 0908871

RETAINER, STEERING WORM

RETAINER, STEERING WORM
$12.99
You save 28%. $18.00
Ships Immediately
1 Items in stock
Required: 1
14
0908870 - Steering worm retainer Bracket
0908870
0908870 ← 0908870

BRACKET, STEERING WORM RET

BRACKET, STEERING WORM RET
$28.99
You save $13.01. $42.00
Ships Immediately
2 Items in stock
Required: 1
16
0980657 - Indicator Plug Assembly
0980657
0980657 ← 0980657

INDICATOR PLUG, COVER

INDICATOR PLUG, COVER
$38.00
You save $2.00. $40.00
Leaves in 6-8 days
Required: 1
19
0323099 - Screw
0323099
0323099 ← 0323099

SCREW, BUMPER

SCREW, BUMPER
$8.55
You save 5%. $9.00
Leaves in 6-8 days
Required: 2
22
0308883 - Bushing
0308883
0308883 ← 0308883

BUSHING

BUSHING
$19.95
You save $1.74. $21.69
Leaves in 6-8 days
Required: 1
37
0908510 - Pin
0908510
0908510 ← 0908510

PIN

PIN
$2.85
You save 5%. $3.00
Leaves in 6-8 days
Required: 2
41
0313540 - Housing Screw
0313540
0313540 ← 0313540

SCREW, HOUSING

SCREW, HOUSING
$4.95
$5.00
Leaves in 6-8 days
Required: 4
43
0907886 - Manifold Cap, Front
0907886
0907886 ← 0907886

LOCKNUT, PINION

LOCKNUT, PINION
$74.95
You save $3.05. $78.00
Leaves in 6-8 days
Required: 1
45
0379585 - Roller Bearing
0379585
0379585 ← 0379585

BEARING ASSEMBLY, PINION

BEARING ASSEMBLY, PINION
$94.99
You save $43.70. $138.69
Ships Immediately
1 Items in stock
Required: 1
48
0313190 - Shim
0313190
0313190 ← 0313190

SHIM, BEARING HOUSIN, 0010

SHIM, BEARING HOUSIN, 0010
$6.99
You save 27%. $9.59
Ships Immediately
5+ Items in stock
Required: 0
49
0382165 - Roller Bearing (Lower)
0382165
0382165 ← 0382165

ROLLER BEARING, LOWER

ROLLER BEARING, LOWER
$57.00
You save $3.00. $60.00
Leaves in 6-8 days
Required: 1
52
0909123 - Centering Cone
0909123
0909123 ← 0909123

CENTERING CONE

CENTERING CONE
$11.88
You save 5%. $12.50
Leaves in 6-8 days
Required: 1
61
0382212 - Roller Bearing Assembly
0382212
0382212 ← 0382212

BEARING ASSEMBLY, SHAFT

BEARING ASSEMBLY, SHAFT
$53.99
You save $23.60. $77.59
Ships Immediately
1 Items in stock
Required: 1
69
0308699 - Cover
0308699
0308699 ← 0308699

WATER COVER, PORT

WATER COVER, PORT
$9.99
You save 33%. $15.00
Ships Immediately
1 Items in stock
Required: 1
72
0981099 - Exhaust Housing Cover
0981099
0981099 ← 0981099

COVER, EXHAUST HOUSING

COVER, EXHAUST HOUSING
$118.75
You save $6.25. $125.00
Leaves in 6-8 days
Required: 1
73
0908834 - Spring
0908834
0908834 ← 0908834

SPRING, GROUND

SPRING, GROUND
$13.78
You save 5%. $14.50
Leaves in 6-8 days
Required: 1
77
0313228 - Gear Housing Cover
0313228
0313228 ← 0313228

COVER, GEAR HOUSING

COVER, GEAR HOUSING
$104.95
You save $4.64. $109.59
Leaves in 6-8 days
Required: 1
80
0907774 - Driveshaft Seal
0907774
0907774 ← 0907774

SEAL, DRIVESHAFT

SEAL, DRIVESHAFT
Notes: Also included in kit 981683 Also included in kit 981802
$6.26
You save 5%. $6.59
Leaves in 3-5 days
Required: 1
81
0313183 - Worm Wheel
0313183
0313183 ← 0313183

WORM WHEEL

WORM WHEEL
Notes: TRU COURSE STEERING ONLY
$57.00
You save $3.00. $60.00
Leaves in 6-8 days
Required: 1
84
0313234 - Steering Worm Gear
0313234
0313234 ← 0313234

WORM GEAR, STEERING

WORM GEAR, STEERING
Notes: TRU COURSE STEERING ONLY
$89.95
You save $6.05. $96.00
Leaves in 6-8 days
Required: 1
85
0313235 - Gear
0313235
0313235 ← 0313235

GEAR

GEAR
Notes: TRU COURSE STEERING ONLY
$104.95
You save $5.05. $110.00
Leaves in 6-8 days
Required: 1
86
0314491 - O-Ring
0314491
0314491 ← 0314491

O RING, DRIVESHAFT

O RING, DRIVESHAFT
Notes: Also included in kit 981683 Also included in kit 981802
$3.89
You save 5%. $4.09
Ships Immediately
1 Items in stock
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
