1978 OMC Stern Drive 120 - 990242D

TILT MOTOR GROUP section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

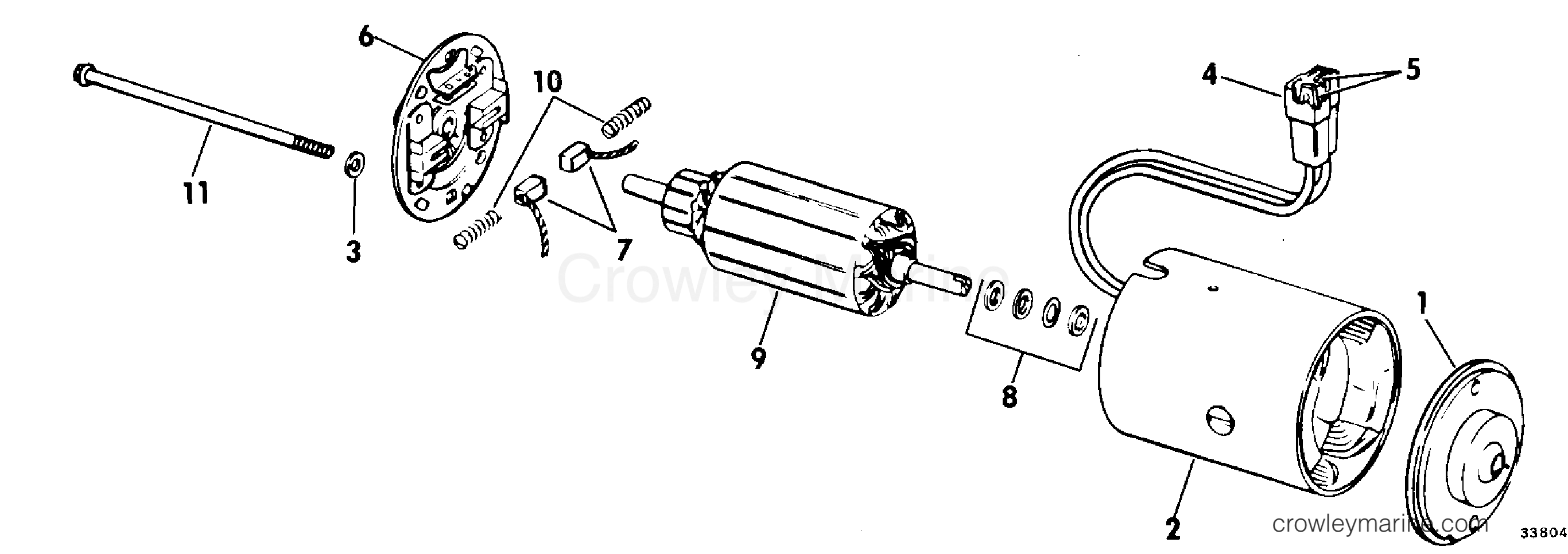

1978 OMC Stern Drive 120 - 990242D TILT MOTOR GROUP section
Use two fingers to zoom
and move the diagram
1978 OMC Stern Drive 120 - 990242D - TILT MOTOR GROUP section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

0382138
0382138 - Tilt Motor Assembly
0382138
0382138 ← 0382138

TILT MOTOR ASSEMBLY

TILT MOTOR ASSEMBLY
Notes: Not Shown
$243.10
You save $12.79. $255.89
Leaves in 3-5 days
Required: 1
3
0312013 - SEAL, Washer
0312013
0312013 ← 0312013

SEAL, WASHER

SEAL, WASHER
$2.99
You save 39%. $4.91
Ships Immediately
1 Items in stock
Required: 2
4
0510472 - Terminal Housing
0510472
0510472 ← 0510472

HOUSING

HOUSING
$2.99
$3.00
Ships Immediately
2 Items in stock
Required: 1
5
0510470 - Terminal
0510470
0510470 ← 0510470

TERMINAL

TERMINAL
$4.95
$4.99
Leaves in 3-5 days
Required: 2
9
0382544 - Armature
0382544
0382544 ← 0382544

ARMATURE ASSEMBLY

ARMATURE ASSEMBLY
$23.75
You save $1.25. $25.00
Leaves in 6-8 days
Required: 1
11
0383402 - Screw Package
0383402
0383402 ← 0383402

THRU BOLT PACKAGE

THRU BOLT PACKAGE
$23.75
You save $1.25. $25.00
Leaves in 6-8 days
Required: 1
