1978 OMC Stern Drive 120 - 990242D

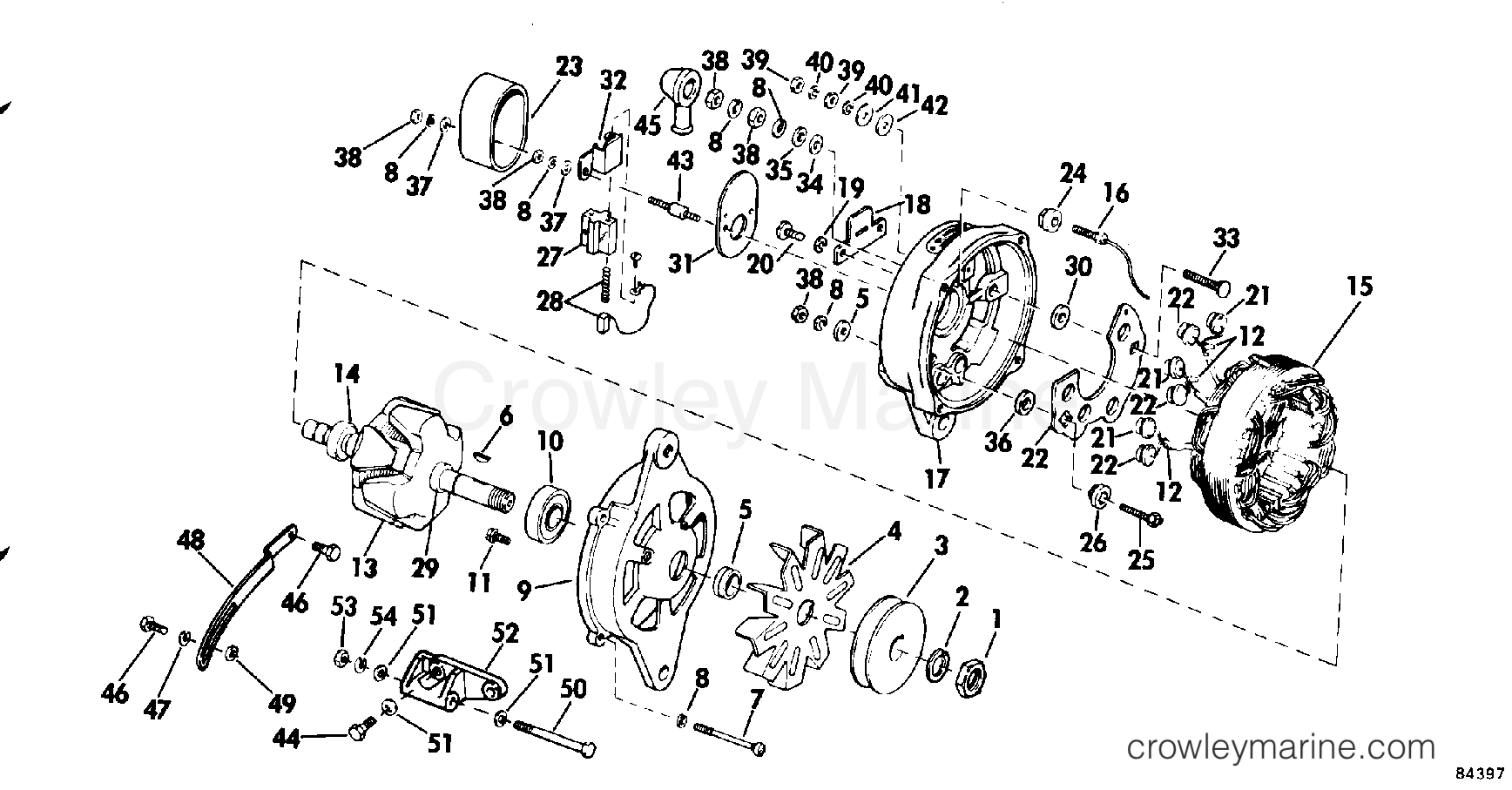

ALTERNATOR AND BRACKET GROUP PRESTOLITE MODEL ALK-6222Y section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1978 OMC Stern Drive 120 - 990242D ALTERNATOR AND BRACKET GROUP PRESTOLITE MODEL ALK-6222Y section
Use two fingers to zoom
and move the diagram
1978 OMC Stern Drive 120 - 990242D - ALTERNATOR AND BRACKET GROUP PRESTOLITE MODEL ALK-6222Y section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

3
0311312 - Driven Pulley
0311312
0311312 ← 0311312

PULLEY, DRIVEN

PULLEY, DRIVEN
$14.95
$15.00
Leaves in 6-8 days
Required: 1
4
0312485 - Ventilating Fan
0312485
0312485 ← 0312485

FAN, VENTILATING

FAN, VENTILATING
$2.85
You save 5%. $3.00
Leaves in 6-8 days
Required: 1
5
0312487 - Felt Washer Retainer
0312487
0312487 ← 0312487

SPACER, ROTOR SHAFT

SPACER, ROTOR SHAFT
$3.80
You save 5%. $4.00
Leaves in 6-8 days
Required: 1
6
0311315 - Rotor Shaft Key
0311315
0311315 ← 0311315

KEY, ROTOR SHAFT

KEY, ROTOR SHAFT
$.95
You save 5%. $1.00
Leaves in 6-8 days
Required: 1
11
0304608 - Clamp Screw
0304608
0304608 ← 0304608

SCREW, RETAINER

SCREW, RETAINER
$.95
You save 5%. $1.00
Leaves in 6-8 days
Required: 3
12
0382009 - Eyelet Package
0382009
0382009 ← 0382009

EYELET PACKAGE

EYELET PACKAGE
$.99
You save 34%. $1.50
Ships Immediately
2 Items in stock
Required: 1
15
0382003 - Stator Assembly
0382003
0382003 ← 0382003

STATOR ASSEMBLY

STATOR ASSEMBLY
$42.75
You save $2.25. $45.00
Leaves in 6-8 days
Required: 1
16
 -
← 0

STUD, FIELD TERMINAL

STUD, FIELD TERMINAL
Notes: AVAILABLE IN TERMINAL STUD PARTS PACKAGE, ORDER PART 383899
Items in stock
Required: 1
21
0980294 - Negative Rectifier Set
0980294
0980294 ← 0980294

RECTIFIER SET, NEGATIVE

RECTIFIER SET, NEGATIVE
$3.99
You save 34%. $6.00
Ships Immediately
5+ Items in stock
Required: 1
23
0909127 - Slip Ring Cover
0909127
0909127 ← 0909127

COVER, SLIP RING

COVER, SLIP RING
$3.80
You save 5%. $4.00
Leaves in 6-8 days
Required: 1
24
 -
← 0

BUSHING, INSULATOR, FIELD TERMINAL

BUSHING, INSULATOR, FIELD TERMINAL
Notes: AVAILABLE IN TERMINAL STUD PARTS PACKAGE, ORDER PART 383899
Items in stock
Required: 1
25
 -
← 0

STUD, AUXILIARY TERMINAL

STUD, AUXILIARY TERMINAL
Notes: AVAILABLE IN TERMINAL STUD PARTS PACKAGE, ORDER PART 383899
Items in stock
Required: 1
26
 -
← 0

BUSHING, INSULATOR, AUX TERMINAL

BUSHING, INSULATOR, AUX TERMINAL
Notes: AVAILABLE IN TERMINAL STUD PARTS PACKAGE, ORDER PART 383899
Items in stock
Required: 1
27
0382005 - Brush Holder Assembly
0382005
0382005 ← 0382005

BRUSH HOLDERS ASSEMBLY

BRUSH HOLDERS ASSEMBLY
$6.99
You save 13%. $8.00
Ships Immediately
3 Items in stock
Required: 1
28
0980084 - Brush Set
0980084
0980084 ← 0980084

BRUSH SET

BRUSH SET
$19.95
$20.00
Leaves in 6-8 days
Required: 1
30
 -
← 0

BUSHING, INSULATOR, BTRY TERMINAL

BUSHING, INSULATOR, BTRY TERMINAL
Notes: AVAILABLE IN TERMINAL STUD PARTS PACKAGE, ORDER PART 383899
Items in stock
Required: 1
32
 -
← 0

COVER, BRUSH HOLDER

COVER, BRUSH HOLDER
Notes: NO PART NUMBER
Items in stock
Required: 1
33
 -
← 0

STUD, BATTERY TERMINAL

STUD, BATTERY TERMINAL
Notes: AVAILABLE IN TERMINAL STUD PARTS PACKAGE, ORDER PART 383899
Items in stock
Required: 1
34
 -
← 0

WASHER, INSULATED, FIELD TERMINAL

WASHER, INSULATED, FIELD TERMINAL
Notes: AVAILABLE IN TERMINAL STUD PARTS PACKAGE, ORDER PART 383899
Items in stock
Required: 1
35
 -
← 0

WASHER, PLAIN, FIELD AND AUX TERMINAL

WASHER, PLAIN, FIELD AND AUX TERMINAL
Notes: AVAILABLE IN TERMINAL STUD PARTS PACKAGE, ORDER PART 383899
Items in stock
Required: 2
36
 -
← 0

WASHER, INSULATOR, AUX TERMINAL

WASHER, INSULATOR, AUX TERMINAL
Notes: AVAILABLE IN TERMINAL STUD PARTS PACKAGE, ORDER PART 383899
Items in stock
Required: 1
41
 -
← 0

WASHER, PLAIN, BATTERY TERMINAL

WASHER, PLAIN, BATTERY TERMINAL
Notes: AVAILABLE IN TERMINAL STUD PARTS PACKAGE, ORDER PART 383899
Items in stock
Required: 2
42
 -
← 0

WASHER, INSULATOR BATTERY TERMINAL

WASHER, INSULATOR BATTERY TERMINAL
Notes: AVAILABLE IN TERMINAL STUD PARTS PACKAGE, ORDER PART 383899
Items in stock
Required: 1
45
0314902 - Ring terminal Cover, alternator
0314902
0314902 ← 0314902

COVER, TERMINAL

COVER, TERMINAL
$9.99
You save 32%. $14.59
Ships Immediately
4 Items in stock
Required: 1
48
0907796 - Alternator Brace
0907796
0907796 ← 0907796

BRACE, ALTERNATOR

BRACE, ALTERNATOR
$22.80
You save $1.20. $24.00
Leaves in 6-8 days
Required: 1
51
0306405 - Washer
0306405
0306405 ← 0306405

WASHER

WASHER
$3.99
You save 29%. $5.59
Ships Immediately
3 Items in stock
Required: 3
52
0907798 - Alternator Bracket
0907798
0907798 ← 0907798

BRACKETT, ALTERNATOR

BRACKETT, ALTERNATOR
$28.50
You save $1.50. $30.00
Leaves in 6-8 days
Required: 1
54
0309336 - Lockwasher
0309336
0309336 ← 0309336

LOCKWASHER

LOCKWASHER
$3.80
You save 5%. $4.00
Leaves in 6-8 days
Required: 1
