1998 Evinrude Outboards 250 - BE250CXECB

INTAKE MANIFOLD section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

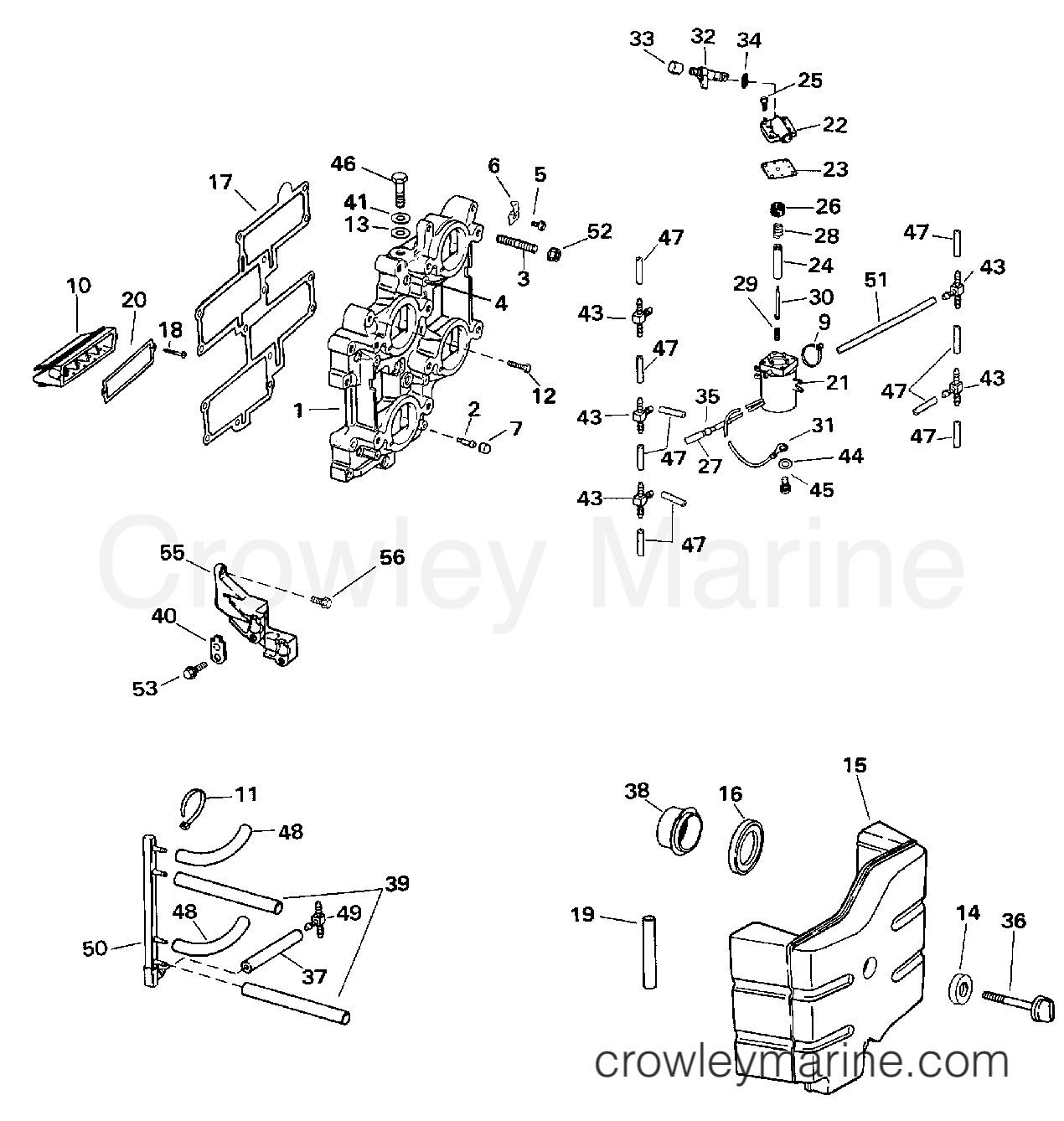

1998 Evinrude Outboards 250 - BE250CXECB INTAKE MANIFOLD section
Use two fingers to zoom
and move the diagram
1998 Evinrude Outboards 250 - BE250CXECB - INTAKE MANIFOLD section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

1
0437387 - Intake Manifold Assembly
0437387
0437387 ← 0437387

INTAKE MANIFOLD, UPPER

INTAKE MANIFOLD, UPPER
$189.95
You save $10.05. $200.00
Leaves in 6-8 days
Required: 1
1
0437388 - Intake Manifold Assembly
0437388
0437388 ← 0437388

INTAKE MANIFOLD, LOWER

INTAKE MANIFOLD, LOWER
$47.50
You save $2.50. $50.00
Leaves in 6-8 days
Required: 1
3
0314616 - Stud
0314616
0314616 ← 0314616

STUD

STUD
$18.99
You save 10%. $21.00
Ships Immediately
5+ Items in stock
Required: 4
5
0310379 - Screw
0310379
0310379 ← 0310379

SCREW, TIMING POINTER

SCREW, TIMING POINTER
$4.99
You save 35%. $7.69
Ships Immediately
1 Items in stock
Required: 1
13
0320744 - Washer
0320744
0320744 ← 0320744

WASHER

WASHER
$3.80
You save 5%. $4.00
Leaves in 6-8 days
Required: 1
18
0332265 - Screw
0332265
0332265 ← 0332265

SCREW, LEAF PLATE

SCREW, LEAF PLATE
$5.99
You save 30%. $8.50
Ships Immediately
1 Items in stock
Required: 16
25
0330121 - Screw
0330121
0330121 ← 0330121

SCREW, COVER TO HOUSING

SCREW, COVER TO HOUSING
$5.99
You save 30%. $8.50
Ships Immediately
4 Items in stock
Required: 4
31
0510818 - Terminal
0510818
0510818 ← 0510818

TERMINAL

TERMINAL
$2.56
You save 5%. $2.69
Leaves in 3-5 days
Required: 1
38
0339842 - Silencer to Carburetor Sleeve
0339842
0339842 ← 0339842

SLEEVE, AIR SILENCER

SLEEVE, AIR SILENCER
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 8
40
0329271 - Trunnion Cover
0329271
0329271 ← 0329271

COVER, TRUNNION

COVER, TRUNNION
$19.95
$20.00
Leaves in 3-5 days
Required: 2
41
0341381 - Washer
0341381
0341381 ← 0341381

WASHER, THROTTLE CAM

WASHER, THROTTLE CAM
$4.95
You save 5%. $5.19
Leaves in 6-8 days
Required: 1
47
 -
← 0

HOSE, PRIMER SYSTEM

HOSE, PRIMER SYSTEM
Notes: Cut to Length from 25 ft. (7,6m) Roll, P/N 327229
Items in stock
Required: 0
53
0328725 - Screw
0328725
0328725 ← 0328725

SCREW, COVER

SCREW, COVER
$5.95
You save 8%. $6.50
Ships Immediately
5+ Items in stock
Required: 2
55
0340412 - Anchor Block
0340412
0340412 ← 0340412

BRACKET, ANCHOR BLOCK

BRACKET, ANCHOR BLOCK
$28.50
You save $1.50. $30.00
Leaves in 6-8 days
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
