1998 Evinrude Outboards 250 - BE250CXECB

IGNITION SYSTEM & STARTER MOTOR section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

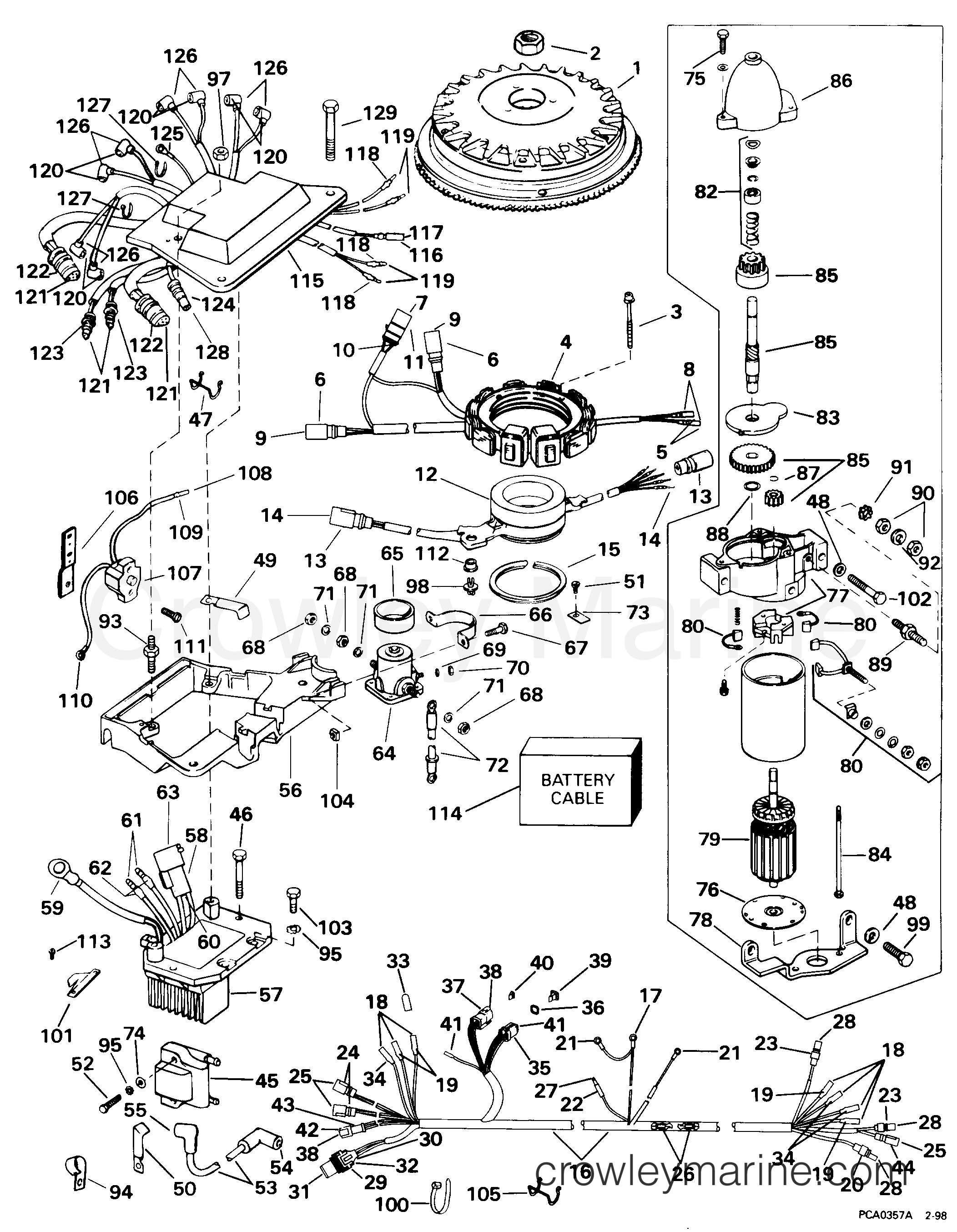

1998 Evinrude Outboards 250 - BE250CXECB IGNITION SYSTEM & STARTER MOTOR section
Use two fingers to zoom
and move the diagram
1998 Evinrude Outboards 250 - BE250CXECB - IGNITION SYSTEM & STARTER MOTOR section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

1
0583969 - Flywheel Assembly
0583969
0583969 ← 0583969

FLYWHEEL ASSEMBLY.

FLYWHEEL ASSEMBLY.
$1,074.00
You save $269.50. $1,343.50
Leaves in 3-5 days
Required: 1
0431929
0431929 - EPOXY ADHESIVE KIT
0431929
0431929 ← 0431929

ADHESIVE

ADHESIVE
Notes: Not Shown
$7.99
You save 13%. $9.19
Ships Immediately
1 Items in stock
Required: 0
3
0325135 - Screw
0325135
0325135 ← 0325135

SCREW, STATOR MOUNTING

SCREW, STATOR MOUNTING
$7.99
You save 11%. $9.00
Ships Immediately
4 Items in stock
Required: 4
5
0512876 - Socket Terminal
0512876
0512876 ← 0512876

TERMINAL, SOCKET

TERMINAL, SOCKET
$1.99
You save 26%. $2.69
Ships Immediately
1 Items in stock
Required: 2
8
0513186 - Socket Sleeve Blue
0513186
0513186 ← 0513186

SLEEVE

SLEEVE
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 2
9
0511469 - Temperature Switch Pin
0511469
0511469 ← 0511469

PIN

PIN
$.99
You save 9%. $1.09
Ships Immediately
5+ Items in stock
Required: 4
13
0512754 - 5-Pin Connector
0512754
0512754 ← 0512754

CONNECTOR

CONNECTOR
$14.96
You save 5%. $15.75
Leaves in 3-5 days
Required: 2
14
0511469 - Temperature Switch Pin
0511469
0511469 ← 0511469

PIN

PIN
$.99
You save 9%. $1.09
Ships Immediately
5+ Items in stock
Required: 10
16
0586244 - ENGINE CABLE ASSEMBLY
0586244
0586244 ← 0586244

ENGINE CABLE ASSEMBLY.

ENGINE CABLE ASSEMBLY.
$147.99
You save $63.28. $211.27
Ships Immediately
4 Items in stock
Required: 1
17
0510818 - Terminal
0510818
0510818 ← 0510818

TERMINAL

TERMINAL
$2.56
You save 5%. $2.69
Leaves in 3-5 days
Required: 1
18
0512876 - Socket Terminal
0512876
0512876 ← 0512876

TERMINAL, SOCKET

TERMINAL, SOCKET
$1.99
You save 26%. $2.69
Ships Immediately
1 Items in stock
Required: 7
19
0513186 - Socket Sleeve Blue
0513186
0513186 ← 0513186

SLEEVE

SLEEVE
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 5
20
0512745 - 2-socket Charge coil Connector
0512745
0512745 ← 0512745

CONNECTOR, 2-SOCKET

CONNECTOR, 2-SOCKET
$7.69
You save 5%. $8.09
Leaves in 3-5 days
Required: 1
21
0511829 - Terminal Ring
0511829
0511829 ← 0511829

RING TERMINAL

RING TERMINAL
$.69
$.69
Leaves in 3-5 days
Required: 2
22
0513185 - Bullet Term Sleeve
0513185
0513185 ← 0513185

SLEEVE

SLEEVE
$4.99
You save 13%. $5.75
Leaves in 3-5 days
Required: 1
23
0513356 - 1 Socket Connector, Water Temperature
0513356
0513356 ← 0513356

CONNECTOR, 1-SOCKET

CONNECTOR, 1-SOCKET
$9.95
You save 10%. $11.09
Leaves in 3-5 days
Required: 2
24
0512750 - Connector
0512750
0512750 ← 0512750

CONNECTOR, 4-PIN

CONNECTOR, 4-PIN
$13.06
You save 5%. $13.75
Leaves in 3-5 days
Required: 2
25
0511469 - Temperature Switch Pin
0511469
0511469 ← 0511469

PIN

PIN
$.99
You save 9%. $1.09
Ships Immediately
5+ Items in stock
Required: 9
27
0512947 - Bullet Terminal
0512947
0512947 ← 0512947

BULLET TERMINAL

BULLET TERMINAL
$.69
$.69
Ships Immediately
5+ Items in stock
Required: 1
31
0514487 - Socket Terminal
0514487
0514487 ← 0514487

TERMINAL, SOCKET

TERMINAL, SOCKET
$4.95
You save 5%. $5.19
Leaves in 3-5 days
Required: 2
33
0328074 - Cap
0328074
0328074 ← 0328074

CAP

CAP
$9.50
$9.50
Leaves in 3-5 days
Required: 1
34
0126664 - Terminal Sleeve
0126664
0126664 ← 0126664

SLEEVE

SLEEVE
$3.09
You save 5%. $3.25
Leaves in 6-8 days
Required: 2
36
0514790 - Lead Plug Seal
0514790
0514790 ← 0514790

SEAL, CONNECTOR

SEAL, CONNECTOR
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 1
44
0513357 - 1 pin recept Temperature Switch Connector
0513357
0513357 ← 0513357

CONNECTOR, 1-PIN

CONNECTOR, 1-PIN
$13.06
You save 5%. $13.75
Leaves in 3-5 days
Required: 1
49
0316487 - Retainer
0316487
0316487 ← 0316487

RETAINER

RETAINER
$9.50
$9.50
Leaves in 3-5 days
Required: 1
58
0513663 - 2 Terminal Receptacle Connector
0513663
0513663 ← 0513663

CONNECTOR

CONNECTOR
$14.75
$14.75
Leaves in 3-5 days
Required: 1
61
0512947 - Bullet Terminal
0512947
0512947 ← 0512947

TERMINAL, BULLET

TERMINAL, BULLET
$.69
$.69
Ships Immediately
5+ Items in stock
Required: 2
62
0513185 - Bullet Term Sleeve
0513185
0513185 ← 0513185

SLEEVE

SLEEVE
$4.99
You save 13%. $5.75
Leaves in 3-5 days
Required: 2
63
0513666 - Terminal
0513666
0513666 ← 0513666

TERMINAL, BLADE

TERMINAL, BLADE
$2.56
You save 5%. $2.69
Leaves in 3-5 days
Required: 2
68
0311349 - Nut
0311349
0311349 ← 0311349

NUT, TERMINAL

NUT, TERMINAL
$5.75
$5.75
Leaves in 3-5 days
Required: 3
71
0331259 - Lockwasher
0331259
0331259 ← 0331259

LOCK WASHER

LOCK WASHER
$3.56
You save 5%. $3.75
Leaves in 3-5 days
Required: 3
73
0331927 - Retainer
0331927
0331927 ← 0331927

CLAMP, TIMER BASE

CLAMP, TIMER BASE
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 2
80
0433850 - Brush & Spring set
0433850
0433850 ← 0433850

BRUSH & SPRING SET

BRUSH & SPRING SET
$29.95
You save $1.34. $31.29
Leaves in 3-5 days
Required: 1
83
0397376 - Cover Assembly
0397376
0397376 ← 0397376

COVER ASSEMBLY

COVER ASSEMBLY
$5.95
$6.00
Leaves in 6-8 days
Required: 1
87
0513398 - Retaining Ring
0513398
0513398 ← 0513398

RETAINING RING

RETAINING RING
$5.99
You save 10%. $6.69
Ships Immediately
1 Items in stock
Required: 1
88
0336975 - Washer
0336975
0336975 ← 0336975

WASHER

WASHER
$1.43
You save 5%. $1.50
Leaves in 6-8 days
Required: 1
94
0330157 - Clamp
0330157
0330157 ← 0330157

CLAMP

CLAMP
$5.95
$6.00
Leaves in 6-8 days
Required: 2
107
0584663 - Circuit Breaker
0584663
0584663 ← 0584663

CIRCUIT BREAKER

CIRCUIT BREAKER
$57.00
You save $3.00. $60.00
Leaves in 6-8 days
Required: 1
108
0512876 - Socket Terminal
0512876
0512876 ← 0512876

TERMINAL, SOCKET

TERMINAL, SOCKET
$1.99
You save 26%. $2.69
Ships Immediately
1 Items in stock
Required: 1
109
0513186 - Socket Sleeve Blue
0513186
0513186 ← 0513186

SLEEVE, BLUE

SLEEVE, BLUE
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 1
114
0584348 - Cable Assembly
0584348
0584348 ← 0584348

BATTERY CABLE

BATTERY CABLE
$112.66
You save $5.93. $118.59
Leaves in 3-5 days
Required: 1
116
0513186 - Socket Sleeve Blue
0513186
0513186 ← 0513186

SLEEVE

SLEEVE
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 1
117
0512876 - Socket Terminal
0512876
0512876 ← 0512876

SOCKET, TERMINAL

SOCKET, TERMINAL
$1.99
You save 26%. $2.69
Ships Immediately
1 Items in stock
Required: 1
118
0513185 - Bullet Term Sleeve
0513185
0513185 ← 0513185

SLEEVE

SLEEVE
$4.99
You save 13%. $5.75
Leaves in 3-5 days
Required: 4
119
0512947 - Bullet Terminal
0512947
0512947 ← 0512947

TERMINAL, BULLET

TERMINAL, BULLET
$.69
$.69
Ships Immediately
5+ Items in stock
Required: 4
122
0512749 - Connector
0512749
0512749 ← 0512749

CONNECTOR

CONNECTOR
$14.96
You save 5%. $15.75
Leaves in 3-5 days
Required: 2
125
0510818 - Terminal
0510818
0510818 ← 0510818

TERMINAL, GROUND

TERMINAL, GROUND
$2.56
You save 5%. $2.69
Leaves in 3-5 days
Required: 1
