1998 Evinrude Outboards 130 - BE130TLECE

CRANKSHAFT & PISTON section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

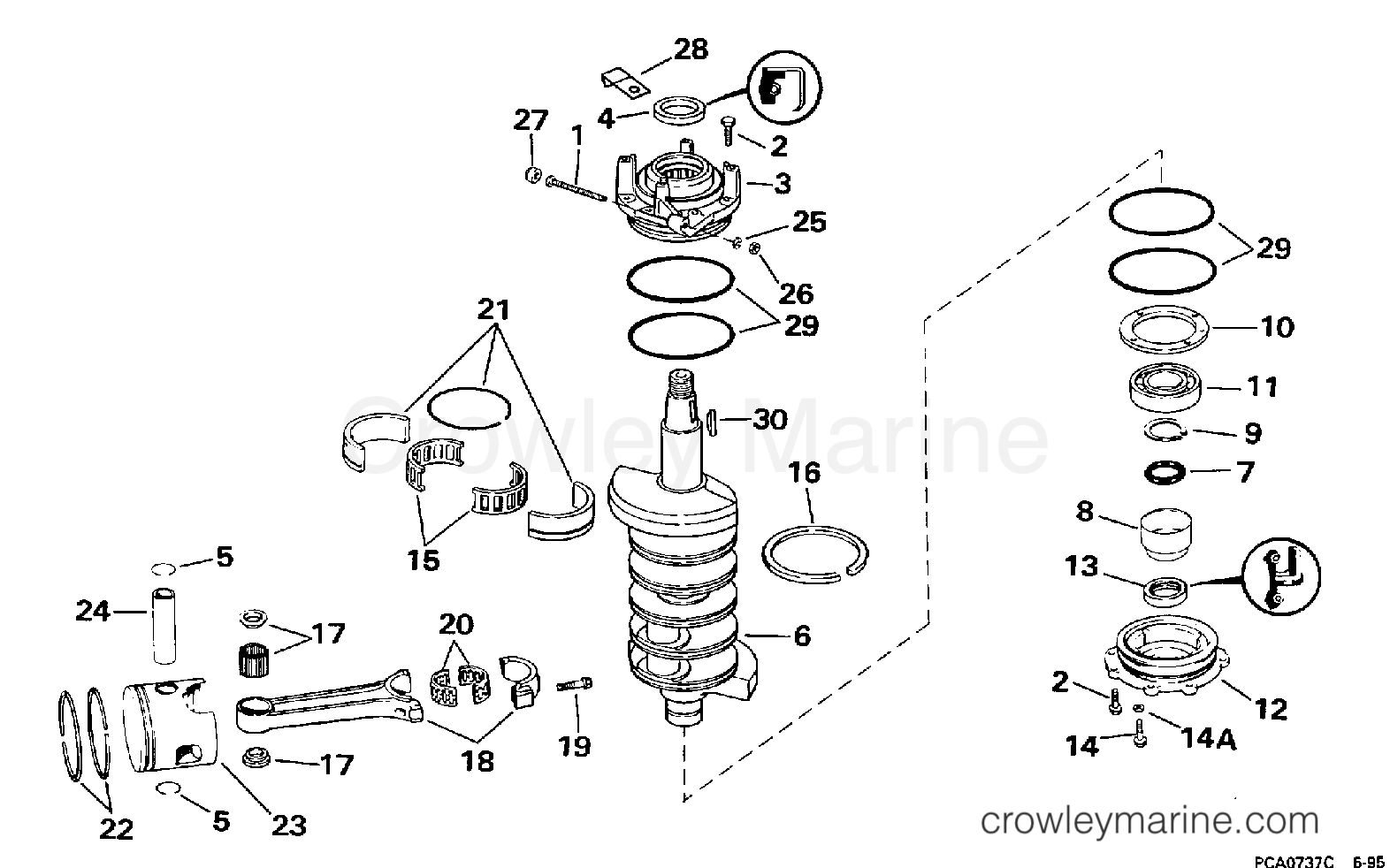

1998 Evinrude Outboards 130 - BE130TLECE CRANKSHAFT & PISTON section
Use two fingers to zoom
and move the diagram
1998 Evinrude Outboards 130 - BE130TLECE - CRANKSHAFT & PISTON section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

2
0344020 - Screw
0344020
0344020 ← 0344020

SCREW, CRANKCASE HEAD

SCREW, CRANKCASE HEAD
$9.99
You save 37%. $15.75
Ships Immediately
5+ Items in stock
Required: 16
6
0434772 - Crankshaft Assembly
0434772
0434772 ← 0434772

CRANKSHAFT ASSEMBLY.

CRANKSHAFT ASSEMBLY.
$2,090.00
You save $523.50. $2,613.50
Leaves in 3-5 days
Required: 1
8
0336988 - Crankshaft Sleeve
0336988
0336988 ← 0336988

SLEEVE, CRANKSHAFT

SLEEVE, CRANKSHAFT
$17.10
You save 5%. $18.00
Leaves in 3-5 days
Required: 1
11
0390641 - Bearing
0390641
0390641 ← 0390641

BEARING, BALL

BEARING, BALL
$44.99
You save $20.50. $65.49
Ships Immediately
1 Items in stock
Required: 1
14A
0332585 - Washer
0332585
0332585 ← 0332585

RUBBER WASHER

RUBBER WASHER
$1.99
You save 36%. $3.09
Ships Immediately
4 Items in stock
Required: 1
16
0326749 - Crank Seal Ring
0326749
0326749 ← 0326749

SEAL RING

SEAL RING
$16.33
You save 5%. $17.19
Leaves in 3-5 days
Required: 6
19
0330081 - Screw
0330081
0330081 ← 0330081

SCREW, ROD CAP

SCREW, ROD CAP
$9.95
$10.09
Leaves in 3-5 days
Required: 2

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
