1998 Johnson Outboards 50 - X50ESLECC

THROTTLE LINKAGE section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

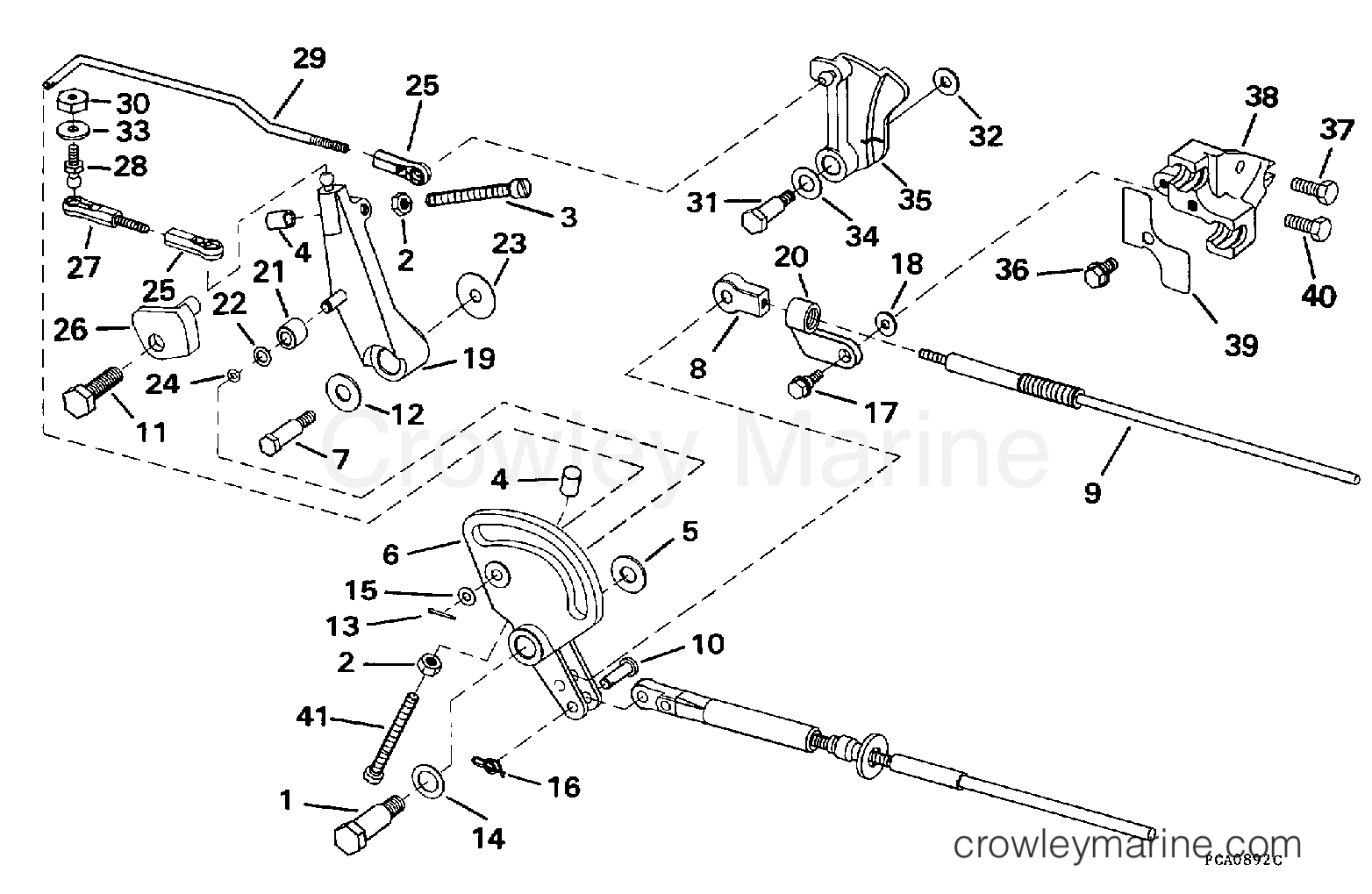

1998 Johnson Outboards 50 - X50ESLECC THROTTLE LINKAGE section
Use two fingers to zoom
and move the diagram
1998 Johnson Outboards 50 - X50ESLECC - THROTTLE LINKAGE section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

8
0334120 - Shift cable end Connector
0334120
0334120 ← 0334120

CONNECTOR, THROTTLE CABLE

CONNECTOR, THROTTLE CABLE
Notes: RE, RL, TE, TEL, TTL
$8.99
You save 5%. $9.50
Ships Immediately
1 Items in stock
Required: 1
20
0334083 - Throttle Cable Anchor
0334083
0334083 ← 0334083

ANCHOR, THROTTLE CABLE

ANCHOR, THROTTLE CABLE
Notes: RE, RL, TE, TEL, TTL
$9.98
You save 5%. $10.50
Leaves in 3-5 days
Required: 1
28
0334334 - Ball Joint Screw
0334334
0334334 ← 0334334

BALL JOINT, SHELL

BALL JOINT, SHELL
$28.11
You save $1.48. $29.59
Leaves in 6-8 days
Required: 1
29
0334788 - Throttle Cam Link
0334788
0334788 ← 0334788

LINK, THROTTLE CAM

LINK, THROTTLE CAM
$22.70
You save $1.19. $23.89
Leaves in 6-8 days
Required: 1
39
0334175 - Retainer
0334175
0334175 ← 0334175

RETAINER

RETAINER
$14.75
$14.75
Leaves in 3-5 days
Required: 1
41
0339220 - Screw
0339220
0339220 ← 0339220

SCREW, WOT STOP

SCREW, WOT STOP
$5.59
$5.59
Leaves in 6-8 days
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
