1998 Johnson Outboards 50 - X50ESLECC

IGNITION SYSTEM -- 40-50 ELECTRIC START section

Change Section

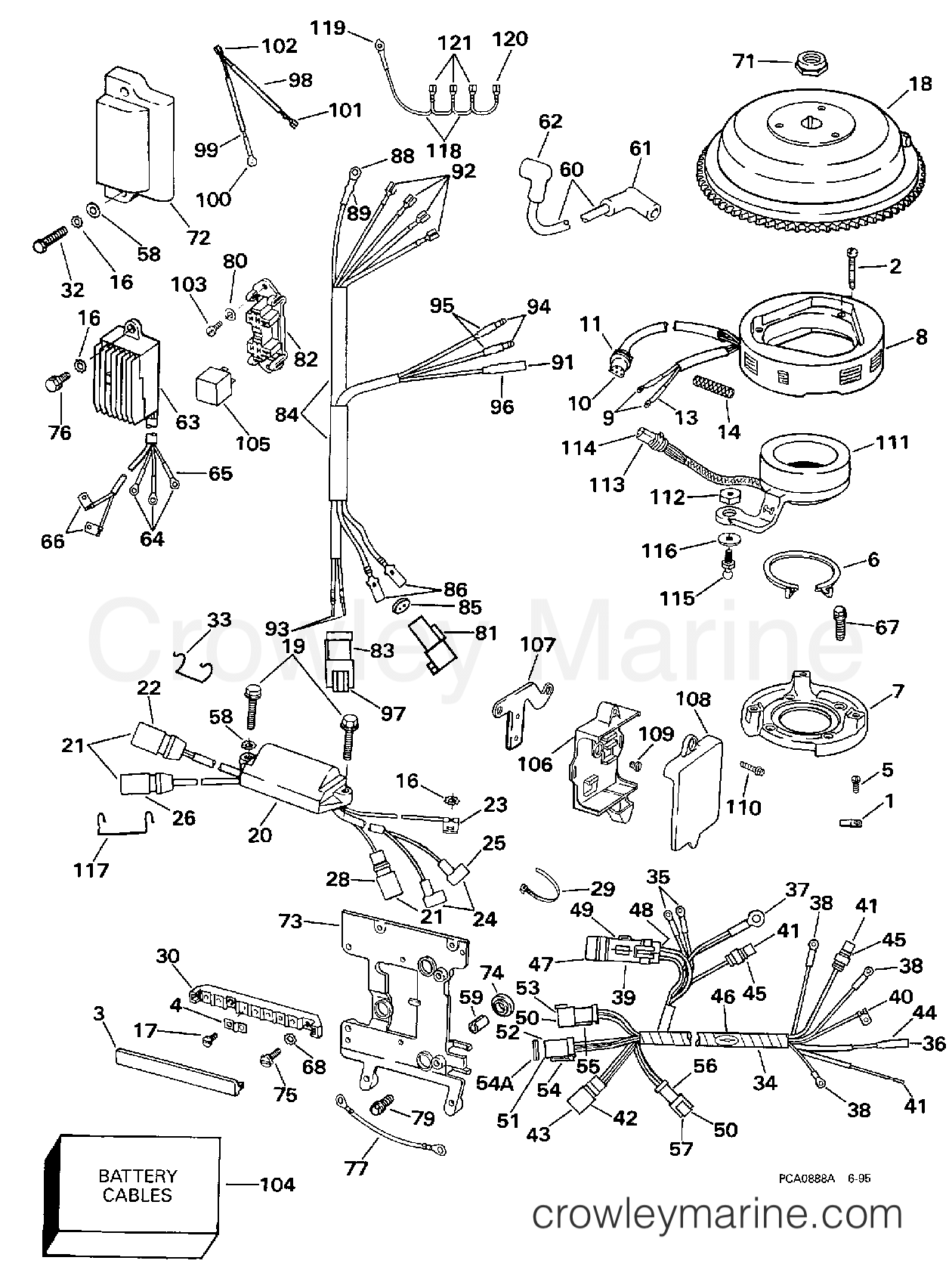

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1998 Johnson Outboards 50 - X50ESLECC IGNITION SYSTEM -- 40-50 ELECTRIC START section
Use two fingers to zoom
and move the diagram
1998 Johnson Outboards 50 - X50ESLECC - IGNITION SYSTEM -- 40-50 ELECTRIC START section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

7
0126671 - Stator Mounting Plate
0126671
0126671 0126671

PLATE, STATOR MOUNTING

PLATE, STATOR MOUNTING
$34.99
You save $15.01. $50.00
Ships Immediately
1 Items in stock
Required: 1
9
0511829 - Terminal Ring
0511829
0511829 0511829

TERMINAL

TERMINAL
$.69
$.69
Leaves in 3-5 days
Required: 2
14
0512937 - Sleeve
0512937
0512937 0512937

SLEEVE

SLEEVE
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 1
18
0585190 - Flywheel Assembly
0585190
0585190 0585190

FLYWHEEL ASSEMBLY.

FLYWHEEL ASSEMBLY.
$578.00
You save $30.75. $608.75
Leaves in 3-5 days
Required: 1
26
0512754 - 5-Pin Connector
0512754
0512754 0512754

CONNECTOR, STATOR

CONNECTOR, STATOR
$14.96
You save 5%. $15.75
Leaves in 3-5 days
Required: 1
30
0329895 - Terminal Block
0329895
0329895 0329895

TERMINAL BLOCK

TERMINAL BLOCK
$14.75
$14.75
Leaves in 3-5 days
Required: 1
34
0586020 - Cable Assembly
0586020
0586020 0586020

MOTOR CABLE ASSEMBLY.

MOTOR CABLE ASSEMBLY.
$324.95
You save $17.30. $342.25
Leaves in 3-5 days
Required: 1
35
0511829 - Terminal Ring
0511829
0511829 0511829

RING TERMINAL

RING TERMINAL
$.69
$.69
Leaves in 3-5 days
Required: 2
36
0512876 - Socket Terminal
0512876
0512876 0512876

SOCKET TERMINAL

SOCKET TERMINAL
$1.99
You save 26%. $2.69
Ships Immediately
1 Items in stock
Required: 1
42
0512750 - Connector
0512750
0512750 0512750

CONNECTOR

CONNECTOR
$13.06
You save 5%. $13.75
Leaves in 3-5 days
Required: 1
44
0513186 - Socket Sleeve Blue
0513186
0513186 0513186

INSULATING SLEEVE

INSULATING SLEEVE
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 1
45
0513356 - 1 Socket Connector, Water Temperature
0513356
0513356 0513356

CONNECTOR, 1-SOCKET

CONNECTOR, 1-SOCKET
$11.58
You save 5%. $12.19
Leaves in 3-5 days
Required: 2
48
0514033 - Fuse Plug Connector
0514033
0514033 0514033

CONNECTOR, FUSE

CONNECTOR, FUSE
$9.50
$9.50
Leaves in 3-5 days
Required: 1
52
0514683 - Wedge Lock
0514683
0514683 0514683

LOCK WEDGE, PLUG

LOCK WEDGE, PLUG
$3.56
You save 5%. $3.75
Leaves in 3-5 days
Required: 1
54
0514687 - 6-socket Connector, keyswitch - Y
0514687
0514687 0514687

CONNECTOR, 6-SOCKET

CONNECTOR, 6-SOCKET
$18.05
You save 5%. $19.00
Leaves in 3-5 days
Required: 1
54A
0514790 - Lead Plug Seal
0514790
0514790 0514790

SEAL

SEAL
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 1
55
0514688 - 6-pin Connector, sl System Check
0514688
0514688 0514688

CONNECTOR, 6-PIN

CONNECTOR, 6-PIN
$17.10
You save 5%. $18.00
Leaves in 3-5 days
Required: 1
56
0514696 - 2 Pin Rcpt Connector
0514696
0514696 0514696

CONNECTOR, 2-PIN

CONNECTOR, 2-PIN
$12.11
You save 5%. $12.75
Leaves in 3-5 days
Required: 1
57
0514697 - Lock Wedge
0514697
0514697 0514697

LOCK WEDGE, 2-PIN

LOCK WEDGE, 2-PIN
$2.61
You save 5%. $2.75
Leaves in 3-5 days
Required: 1
64
0511829 - Terminal Ring
0511829
0511829 0511829

RING TERMINAL

RING TERMINAL
$.69
$.69
Leaves in 3-5 days
Required: 3
73
0338431 - Electrical Bracket
0338431
0338431 0338431

BRACKET, ELECTRICAL

BRACKET, ELECTRICAL
$49.95
You save $2.55. $52.50
Leaves in 3-5 days
Required: 1
74
0326136 - Grommet
0326136
0326136 0326136

GROMMET, BRACKET

GROMMET, BRACKET
$7.31
You save 5%. $7.69
Leaves in 6-8 days
Required: 6
77
0376349 - Lead
0376349
0376349 0376349

LEAD, GROUND

LEAD, GROUND
$9.95
$10.00
Leaves in 6-8 days
Required: 1
78
0315182 - Clamp
0315182
0315182 0315182

CLAMP, CABLE

CLAMP, CABLE
$24.95
You save $1.80. $26.75
Leaves in 3-5 days
Required: 1
80
0328739 - Washer
0328739
0328739 0328739

WASHER

WASHER
Notes: Trim Tilt Equipped Models Only
$7.60
You save 5%. $8.00
Leaves in 3-5 days
Required: 2
81
0513663 - 2 Terminal Receptacle Connector
0513663
0513663 0513663

CONNECTOR, 2-TERMINAL

CONNECTOR, 2-TERMINAL
Notes: Trim Tilt Equipped Models Only
$14.75
$14.75
Leaves in 3-5 days
Required: 1
84
0585015 - Cable Assembly
0585015
0585015 0585015

CABLE ASSEMBLY.

CABLE ASSEMBLY.
Notes: Trim Tilt Equipped Models Only
$59.95
You save $5.05. $65.00
Leaves in 3-5 days
Required: 1
86
0513666 - Terminal
0513666
0513666 0513666

TERMINAL

TERMINAL
$1.99
You save 26%. $2.69
Ships Immediately
1 Items in stock
Required: 2
91
0512876 - Socket Terminal
0512876
0512876 0512876

TERMINAL, SOCKET

TERMINAL, SOCKET
$1.99
You save 26%. $2.69
Ships Immediately
1 Items in stock
Required: 1
96
0513186 - Socket Sleeve Blue
0513186
0513186 0513186

SLEEVE

SLEEVE
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 1
98
0583706 - Lead Assembly
0583706
0583706 0583706

LEAD ASSEMBLY.

LEAD ASSEMBLY.
Notes: Trim Tilt Equipped Models Only
$11.68
You save 5%. $12.29
Leaves in 6-8 days
Required: 1
103
0324064 - Screw
0324064
0324064 0324064

SCREW, BRACKET

SCREW, BRACKET
Notes: Trim Tilt Equipped Models Only
$4.59
$4.59
Leaves in 6-8 days
Required: 2
108
0342265 - Conn Bracket Cover
0342265
0342265 0342265

COVER, BRACKET

COVER, BRACKET
$14.96
You save 5%. $15.75
Leaves in 3-5 days
Required: 1
115
0334334 - Ball Joint Screw
0334334
0334334 0334334

BALL JOINT

BALL JOINT
$28.11
You save $1.48. $29.59
Leaves in 6-8 days
Required: 1
117
0512742 - Retainer
0512742
0512742 0512742

RETAINER, CONNECTOR

RETAINER, CONNECTOR
$8.55
You save 5%. $9.00
Leaves in 3-5 days
Required: 1
118
0585016 - Cable Assembly
0585016
0585016 0585016

CABLE ASSEMBLY., RELASSEMBLY

CABLE ASSEMBLY., RELASSEMBLY
Notes: Trim Tilt Equipped Models Only
$12.53
You save 5%. $13.19
Leaves in 6-8 days
Required: 1
119
0511829 - Terminal Ring
0511829
0511829 0511829

TERMINAL, RING

TERMINAL, RING
$.69
$.69
Leaves in 3-5 days
Required: 1
120
0513166 - Terminal
0513166
0513166 0513166

TERMINAL

TERMINAL
$2.56
You save 5%. $2.69
Leaves in 3-5 days
Required: 1
121
0513167 - Terminal
0513167
0513167 0513167

TERMINAL

TERMINAL
$2.56
You save 5%. $2.69
Leaves in 3-5 days
Required: 3
