1998 Johnson Outboards 50 - X50ESLECC

GEARCASE section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1998 Johnson Outboards 50 - X50ESLECC GEARCASE section
Use two fingers to zoom
and move the diagram

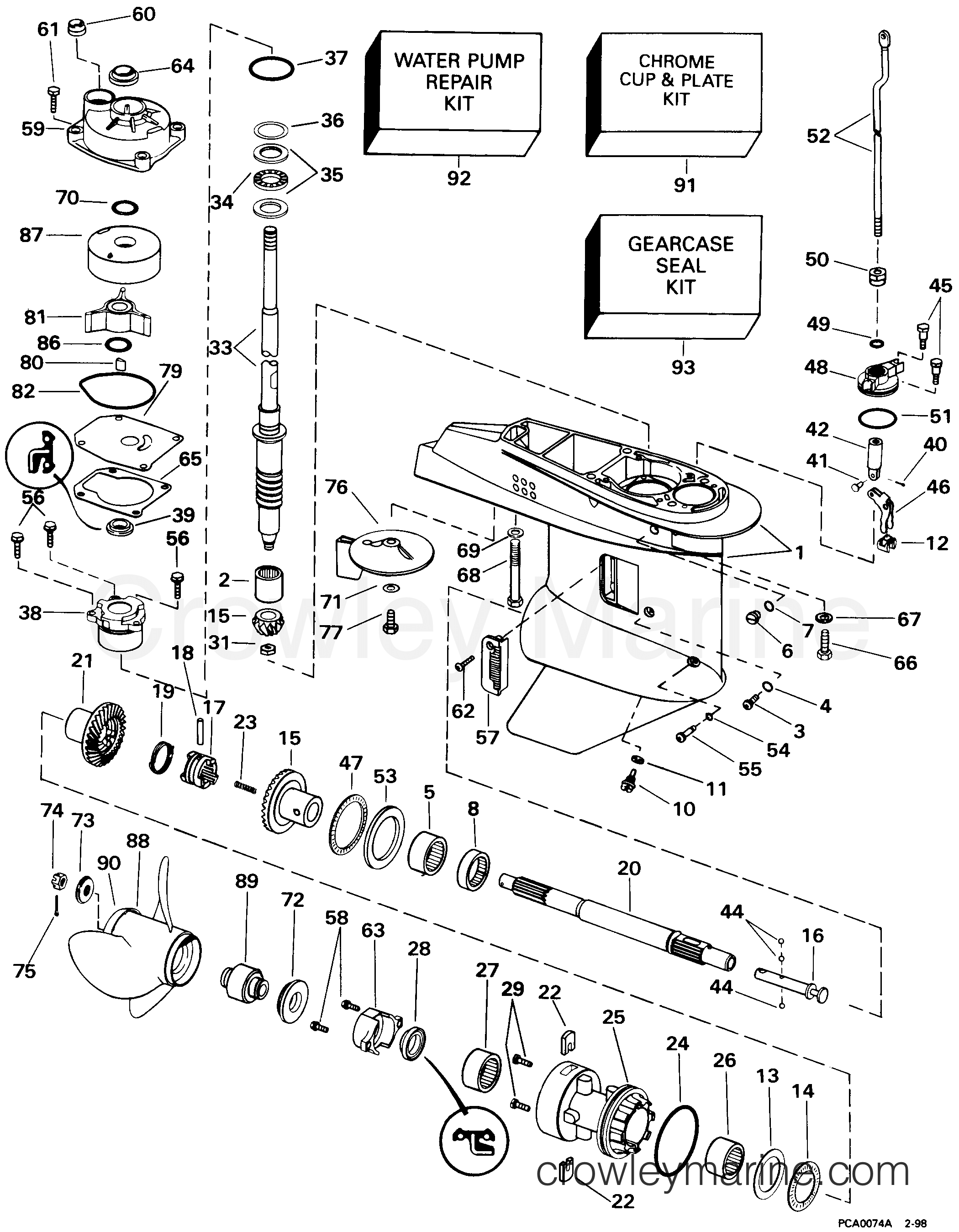

1998 Johnson Outboards 50 - X50ESLECC - GEARCASE section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

16
0332503 - Shift Dog Shaft
0332503
0332503 ← 0332503

SHAFT, SHIFT DOG

SHAFT, SHIFT DOG
$52.99
You save 10%. $58.75
Ships Immediately
1 Items in stock
Required: 1
21
0332489 - Reverse Gear-
0332489
0332489 ← 0332489

GEAR, REVERSE

GEAR, REVERSE
$214.95
You save $11.14. $226.09
Leaves in 3-5 days
Required: 1
28
0342887 - OIL Seal
0342887
0342887 ← 0342887

SEAL

SEAL
$16.99
You save 11%. $19.00
Ships Immediately
5+ Items in stock
Required: 1
33
0438399 - Driveshaft Assembly
0438399
0438399 ← 0438399

DRIVESHAFT ASSEMBLY., LONG

DRIVESHAFT ASSEMBLY., LONG
$444.99
You save $191.76. $636.75
Ships Immediately
4 Items in stock
Required: 1
41
0302504 - Pin
0302504
0302504 ← 0302504

PIN, CONNECTOR, SHIFT ROD

PIN, CONNECTOR, SHIFT ROD
$7.99
You save 6%. $8.50
Ships Immediately
3 Items in stock
Required: 1
42
0332508 - Connector
0332508
0332508 ← 0332508

CONNECTOR, SHIFT ROD

CONNECTOR, SHIFT ROD
$24.95
$25.79
Ships Immediately
1 Items in stock
Required: 1
46
0332492 - Shifter Lever
0332492
0332492 ← 0332492

LEVER, SHIFT

LEVER, SHIFT
$21.56
You save $1.13. $22.69
Leaves in 6-8 days
Required: 1
48
0434588 - Cover & Bushing Assembly
0434588
0434588 ← 0434588

COVER, SHIFT ROD

COVER, SHIFT ROD
$19.99
You save 14%. $23.29
Ships Immediately
1 Items in stock
Required: 1
50
0333780 - Shift Rod Bushing
0333780
0333780 ← 0333780

BUSHING, SHIFT ROD

BUSHING, SHIFT ROD
$14.96
You save 5%. $15.75
Ships Immediately
2 Items in stock
Required: 1
52
0332509 - Shift Rod-
0332509
0332509 ← 0332509

SHIFT ROD, STANDARD.

SHIFT ROD, STANDARD.
$82.83
You save $4.36. $87.19
Leaves in 6-8 days
Required: 1
59
0438544 - Impeller Housing Assembly
0438544
0438544 ← 0438544

IMPELLER HOUSING

IMPELLER HOUSING
$12.53
You save 5%. $13.19
Leaves in 3-5 days
Required: 1
65
0336530 - Gasket
0336530
0336530 ← 0336530

GASKET, PLATE

GASKET, PLATE
Notes: Also included in kit 433550
$2.95
You save 5%. $3.09
Ships Immediately
5+ Items in stock
Required: 1
79
0341038 - Impeller Housing Plate
0341038
0341038 ← 0341038

PLATE, IMPELLER HOUSING

PLATE, IMPELLER HOUSING
Notes: Stainless Steel
$7.99
You save 13%. $9.19
Ships Immediately
5+ Items in stock
Required: 1
79
0341187 - Plate
0341187
0341187 ← 0341187

PLATE, IMPELLER HOUSING

PLATE, IMPELLER HOUSING
Notes: Chrome Plated
$149.95
You save $9.05. $159.00
Leaves in 3-5 days
Required: 1
87
0340619 - Cup Impeller Housing
0340619
0340619 ← 0340619

CUP, IMPELLER HOUSING

CUP, IMPELLER HOUSING
Notes: Stainless Steel
$13.48
You save 5%. $14.19
Leaves in 3-5 days
Required: 1
87
0341186 - Cup Impeller Housing
0341186
0341186 ← 0341186

CUP, IMPELLER HOUSING

CUP, IMPELLER HOUSING
Notes: Chrome Plated
$72.91
You save $3.84. $76.75
Leaves in 3-5 days
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
