1998 Evinrude Outboards 20 - BE20SEECB

MIDSECTION section

Change Section

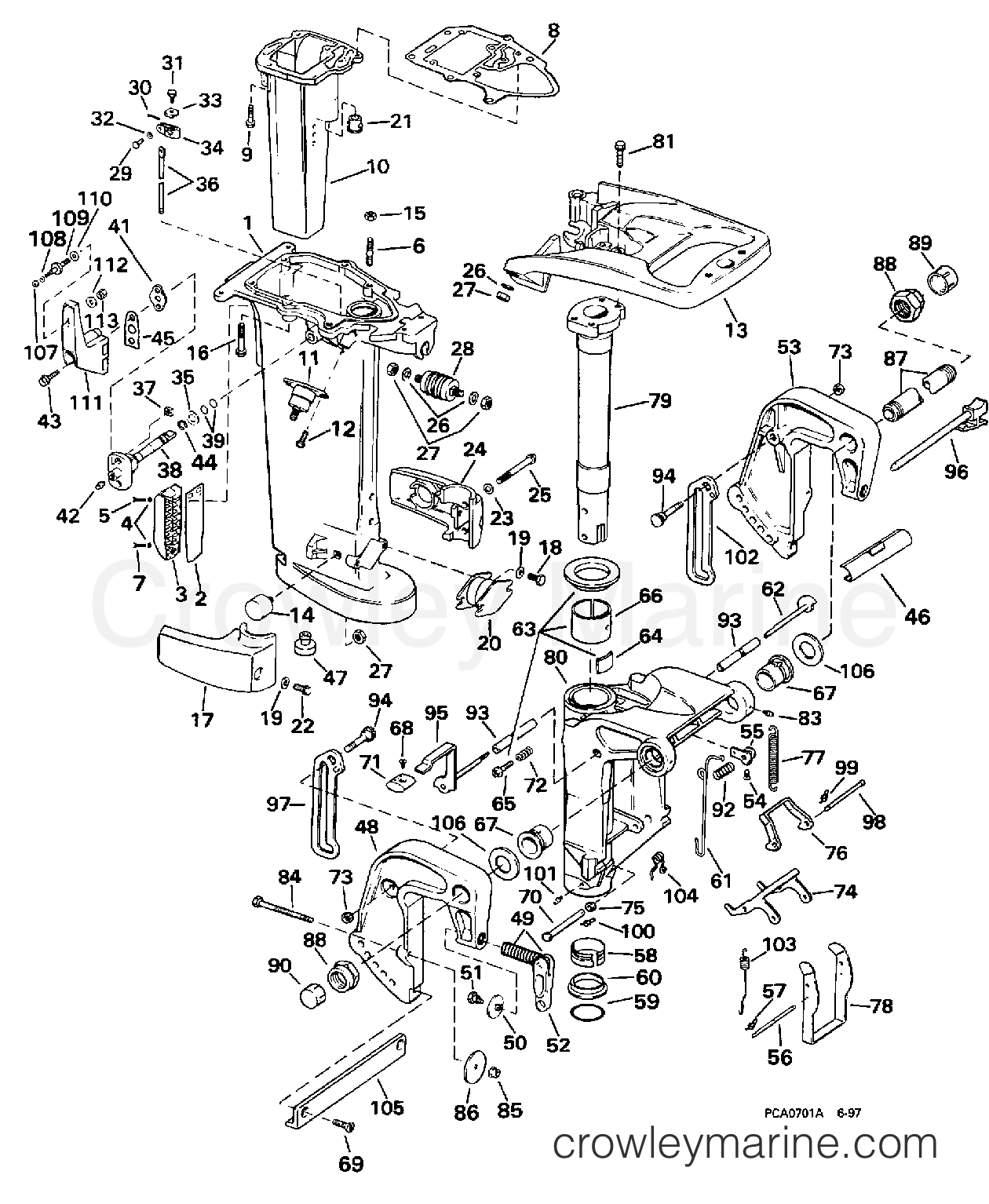

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1998 Evinrude Outboards 20 - BE20SEECB MIDSECTION section
Use two fingers to zoom
and move the diagram
1998 Evinrude Outboards 20 - BE20SEECB - MIDSECTION section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

6
0324815 - Stud
0324815
0324815 ← 0324815

STUD

STUD
$22.33
You save $1.17. $23.50
Leaves in 3-5 days
Required: 2
7
0334521 - Screw
0334521
0334521 ← 0334521

SCREW, LOWER

SCREW, LOWER
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 1
10
0336258 - Inner Exhaust Tube
0336258
0336258 ← 0336258

EXHAUST TUBE, INNER

EXHAUST TUBE, INNER
$184.95
You save $10.30. $195.25
Leaves in 3-5 days
Required: 1
13
0335430 - Steering Bracket
0335430
0335430 ← 0335430

BRACKET, STEERING

BRACKET, STEERING
$214.95
You save $11.94. $226.89
Leaves in 6-8 days
Required: 1
19
0303886 - Shift Rod to Link Washer
0303886
0303886 ← 0303886

WASHER

WASHER
$5.75
$5.75
Leaves in 3-5 days
Required: 4
23
0304144 - Washer
0304144
0304144 ← 0304144

LOCK WASHER

LOCK WASHER
$7.31
You save 5%. $7.69
Leaves in 6-8 days
Required: 2
29
0302504 - Pin
0302504
0302504 ← 0302504

PIN, SHIFT ROD TO LEVER

PIN, SHIFT ROD TO LEVER
$7.99
You save 6%. $8.50
Ships Immediately
3 Items in stock
Required: 1
31
0308017 - Screw
0308017
0308017 ← 0308017

SCREW, SHIFT ROD

SCREW, SHIFT ROD
$5.99
You save 30%. $8.50
Ships Immediately
5+ Items in stock
Required: 1
34
0322092 - Shift Rod Lever
0322092
0322092 ← 0322092

LEVER, SHIFT ROD

LEVER, SHIFT ROD
$9.98
You save 5%. $10.50
Leaves in 3-5 days
Required: 1
41
0342387 - Lever
0342387
0342387 ← 0342387

LEVER, SHIFT

LEVER, SHIFT
$13.58
You save 5%. $14.29
Leaves in 6-8 days
Required: 1
44
0315786 - Retainer
0315786
0315786 ← 0315786

RETAINER, SHIFT SHAFT

RETAINER, SHIFT SHAFT
$4.99
You save 35%. $7.69
Ships Immediately
5+ Items in stock
Required: 1
46
0342908 - Tilt Tube Shield
0342908
0342908 ← 0342908

SHIELD, TILT TUBE

SHIELD, TILT TUBE
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 1
53
0342535 - Port Stern Bracket
0342535
0342535 ← 0342535

STERN BRACKET, PORT

STERN BRACKET, PORT
$259.95
You save $14.54. $274.49
Leaves in 6-8 days
Required: 1
69
0324579 - Screw
0324579
0324579 ← 0324579

SCREW, TIE BAR

SCREW, TIE BAR
$6.26
You save 5%. $6.59
Leaves in 6-8 days
Required: 2
80
0323158 - Swivel Bracket
0323158
0323158 ← 0323158

BRACKET, SWIVEL

BRACKET, SWIVEL
$527.00
You save $28.39. $555.39
Leaves in 6-8 days
Required: 1
0432294
0432294 - Screw & Nut Assembly
0432294
0432294 ← 0432294

SCREW & NUT ASSEMBLY.

SCREW & NUT ASSEMBLY.
Notes: Not Shown
$14.96
You save 5%. $15.75
Leaves in 3-5 days
Required: 2
85
0310702 - Screw Nut
0310702
0310702 ← 0310702

NUT

NUT
$7.36
You save 5%. $7.75
Leaves in 3-5 days
Required: 1
86
0315776 - Washer
0315776
0315776 ← 0315776

WASHER

WASHER
$4.99
You save 29%. $7.00
Ships Immediately
1 Items in stock
Required: 2
106
0319699 - Stern Bracket Thrust Washer
0319699
0319699 ← 0319699

WASHER

WASHER
$8.99
You save 5%. $9.50
Ships Immediately
2 Items in stock
Required: 2
107
0328064 - Nut
0328064
0328064 ← 0328064

NUT, SHIFT CABLE MOUNTING

NUT, SHIFT CABLE MOUNTING
$7.99
You save 11%. $9.00
Ships Immediately
2 Items in stock
Required: 1
0392563
0392563 - Shift Lever
0392563
0392563 ← 0392563

SHIFT LEVER ASSEMBLY.

SHIFT LEVER ASSEMBLY.
Notes: Not Shown
$49.95
You save $3.55. $53.50
Leaves in 3-5 days
Required: 1
113
0313022 - Lock Nut
0313022
0313022 ← 0313022

NUT, BOLT TO SHIFT LEVER

NUT, BOLT TO SHIFT LEVER
$7.99
You save 11%. $9.00
Ships Immediately
4 Items in stock
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
