1998 Evinrude Outboards 25 - BE25ARECA

POWER TRIM/TILT ELECTRICAL section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

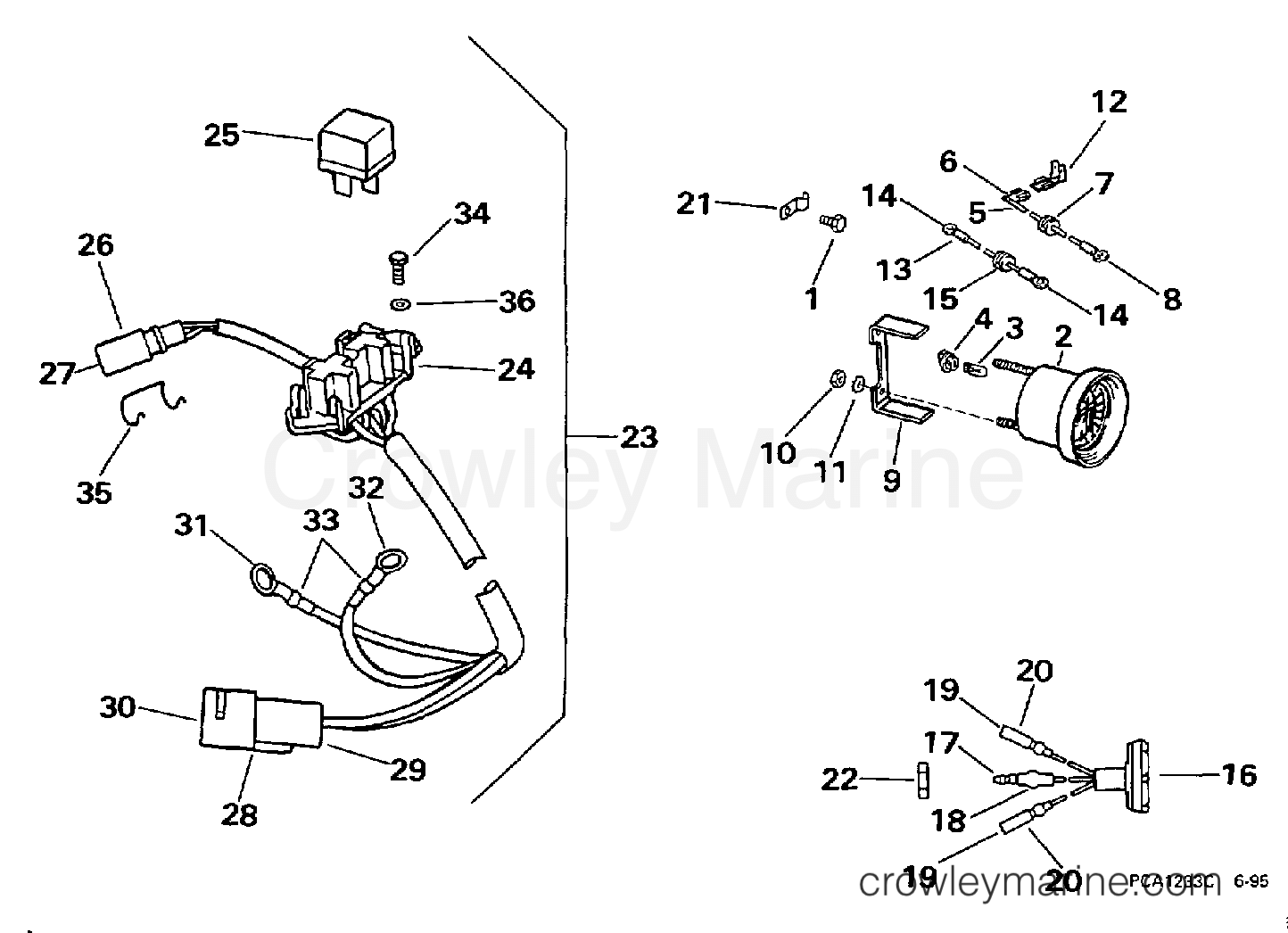

1998 Evinrude Outboards 25 - BE25ARECA POWER TRIM/TILT ELECTRICAL section
Use two fingers to zoom
and move the diagram
1998 Evinrude Outboards 25 - BE25ARECA - POWER TRIM/TILT ELECTRICAL section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

28
0513663 - 2 Terminal Receptacle Connector
0513663
0513663 ← 0513663

CONNECTOR

CONNECTOR
$14.75
$14.75
Leaves in 3-5 days
Required: 1
30
0513666 - Terminal
0513666
0513666 ← 0513666

TERMINAL, BLADE

TERMINAL, BLADE
$2.56
You save 5%. $2.69
Leaves in 3-5 days
Required: 2
31
0330100 - Ring Terminal
0330100
0330100 ← 0330100

TERMINAL, RING, 5/16

TERMINAL, RING, 5/16
$3.56
You save 5%. $3.75
Leaves in 3-5 days
Required: 1
32
0510818 - Terminal
0510818
0510818 ← 0510818

TERMINAL, RING, 1/4

TERMINAL, RING, 1/4
$2.56
You save 5%. $2.69
Leaves in 3-5 days
Required: 1
34
0341992 - Screw
0341992
0341992 ← 0341992

SCREW, MOUNTING, M5

SCREW, MOUNTING, M5
$9.98
You save 5%. $10.50
Leaves in 3-5 days
Required: 2
35
0512741 - Retainer
0512741
0512741 ← 0512741

RETAINER, CONNECTOR

RETAINER, CONNECTOR
$108.54
You save $5.71. $114.25
Leaves in 3-5 days
Required: 1
1
0310981 - Screw
0310981
0310981 ← 0310981

SCREW, CLAMP

SCREW, CLAMP
Notes: Optional
$3.33
You save 5%. $3.50
Leaves in 6-8 days
Required: 1
3
0125432 - Instrument Bulb
0125432
0125432 ← 0125432

BULB

BULB
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 1
4
0122553 - Bulb Socket
0122553
0122553 ← 0122553

SOCKET

SOCKET
$8.55
You save 5%. $9.00
Leaves in 3-5 days
Required: 1
5
0172873 - Lead Assembly
0172873
0172873 ← 0172873

LEAD ASSEMBLY.

LEAD ASSEMBLY.
$18.99
You save 28%. $26.50
Ships Immediately
5+ Items in stock
Required: 1
6
0309437 - Terminal
0309437
0309437 ← 0309437

TERMINAL

TERMINAL
$4.25
$4.25
Leaves in 3-5 days
Required: 1
7
0510905 - Grommet
0510905
0510905 ← 0510905

GROMMET

GROMMET
$1.99
You save 39%. $3.25
Ships Immediately
2 Items in stock
Required: 1
9
0126272 - Mounting Bracket
0126272
0126272 ← 0126272

BRACKET

BRACKET
$8.55
You save 5%. $9.00
Leaves in 3-5 days
Required: 1
10
0125410 - Nut
0125410
0125410 ← 0125410

NUT

NUT
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 10
11
0125411 - Lock Washer-
0125411
0125411 ← 0125411

WASHER

WASHER
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 10
12
0319984 - Adapter Terminal
0319984
0319984 ← 0319984

ADAPTER, TERMINAL

ADAPTER, TERMINAL
$9.98
You save 5%. $10.50
Leaves in 3-5 days
Required: 1
13
0386682 - Lead Assembly
0386682
0386682 ← 0386682

LEAD ASSEMBLY.

LEAD ASSEMBLY.
$11.40
You save 5%. $12.00
Leaves in 6-8 days
Required: 1
15
0510905 - Grommet
0510905
0510905 ← 0510905

GROMMET

GROMMET
$1.99
You save 39%. $3.25
Ships Immediately
2 Items in stock
Required: 1
19
0512876 - Socket Terminal
0512876
0512876 ← 0512876

SOCKET TERMINAL

SOCKET TERMINAL
$1.99
You save 26%. $2.69
Ships Immediately
1 Items in stock
Required: 2
20
0513186 - Socket Sleeve Blue
0513186
0513186 ← 0513186

SLEEVE, SOCKET

SLEEVE, SOCKET
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 2
21
0317000 - Clamp
0317000
0317000 ← 0317000

CLAMP, CABLE ASSEMBLY.

CLAMP, CABLE ASSEMBLY.
Notes: Optional
$9.98
You save 5%. $10.50
Leaves in 3-5 days
Required: 1
