1998 Evinrude Outboards 25 - BE25ARECA

LOWER ENGINE COVER section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1998 Evinrude Outboards 25 - BE25ARECA LOWER ENGINE COVER section
Use two fingers to zoom
and move the diagram

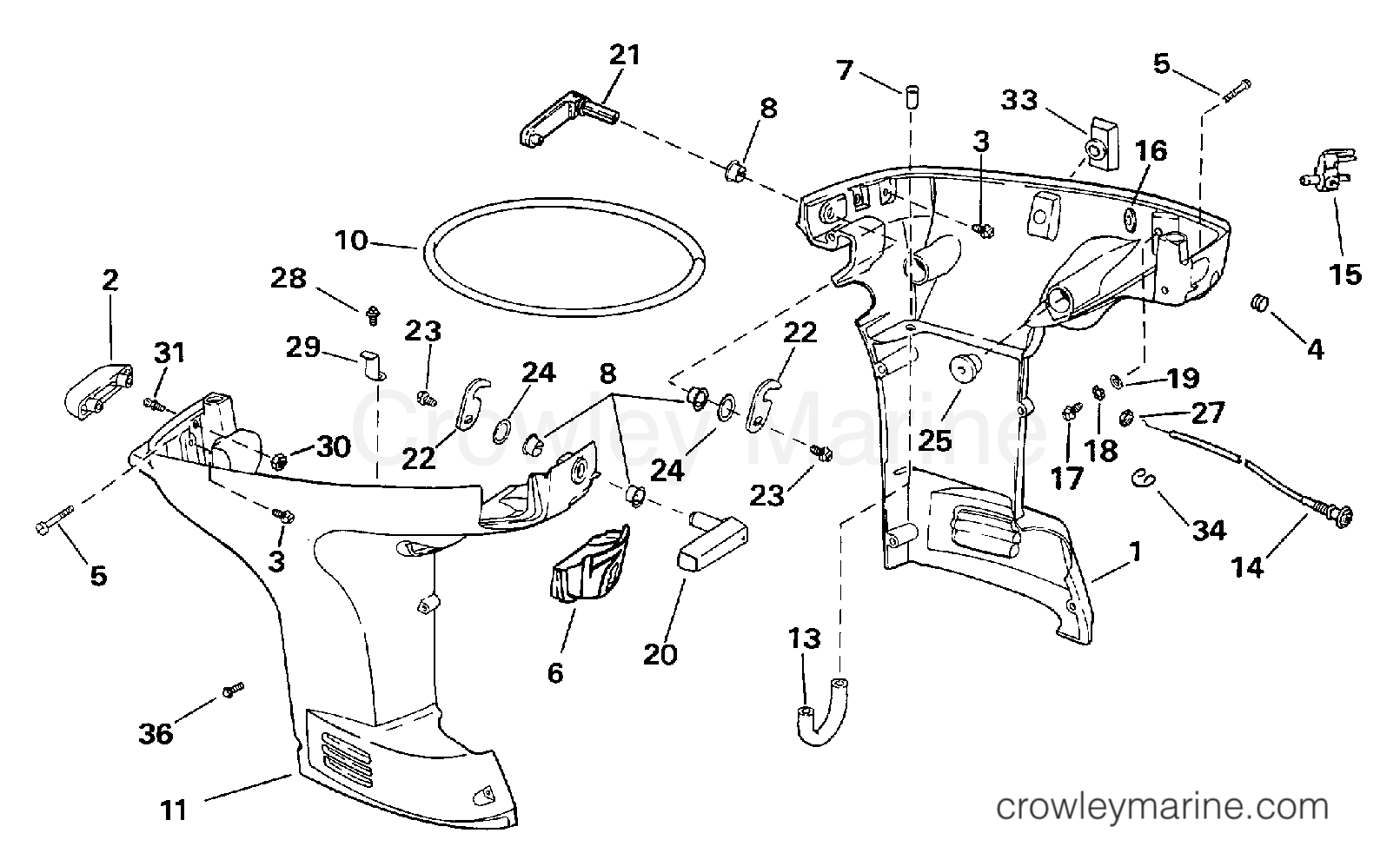

1998 Evinrude Outboards 25 - BE25ARECA - LOWER ENGINE COVER section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

4
0341231 - Plug
0341231
0341231 ← 0341231

PLUG, CHOKE CABLE HOLE

PLUG, CHOKE CABLE HOLE
Notes: 25K, KL, 35K, KL 25QL, 35QL
$28.02
You save $1.47. $29.49
Leaves in 6-8 days
Required: 1
16
0343736 - Seal
0343736
0343736 ← 0343736

SEAL, FUEL CONNECTOR

SEAL, FUEL CONNECTOR
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 1
17
0336165 - Screw
0336165
0336165 ← 0336165

SCREW, FUEL CONNECTOR

SCREW, FUEL CONNECTOR
$3.56
You save 5%. $3.75
Ships Immediately
4 Items in stock
Required: 1
27
0331639 - Nut
0331639
0331639 ← 0331639

NUT, CHOKE CABLE

NUT, CHOKE CABLE
$4.99
You save 35%. $7.69
Ships Immediately
1 Items in stock
Required: 1
29
0341245 - Clamp
0341245
0341245 ← 0341245

CLAMP

CLAMP
$4.95
$5.00
Leaves in 6-8 days
Required: 1
31
0339575 - Screw
0339575
0339575 ← 0339575

BALL SCREW

BALL SCREW
$14.96
You save 5%. $15.75
Leaves in 3-5 days
Required: 1
33
0335694 - Plug
0335694
0335694 ← 0335694

SWITCH HOLE PLUG

SWITCH HOLE PLUG
Notes: 25AR, ARL, RM, RML, 35AR, ARL 25K, KL, 35K, KL 25TK, TKL, 35TKL
$9.98
You save 5%. $10.50
Leaves in 3-5 days
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
