1998 Evinrude Outboards 25 - BE25ARECA

INTAKE MANIFOLD & AIR SILENCER section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

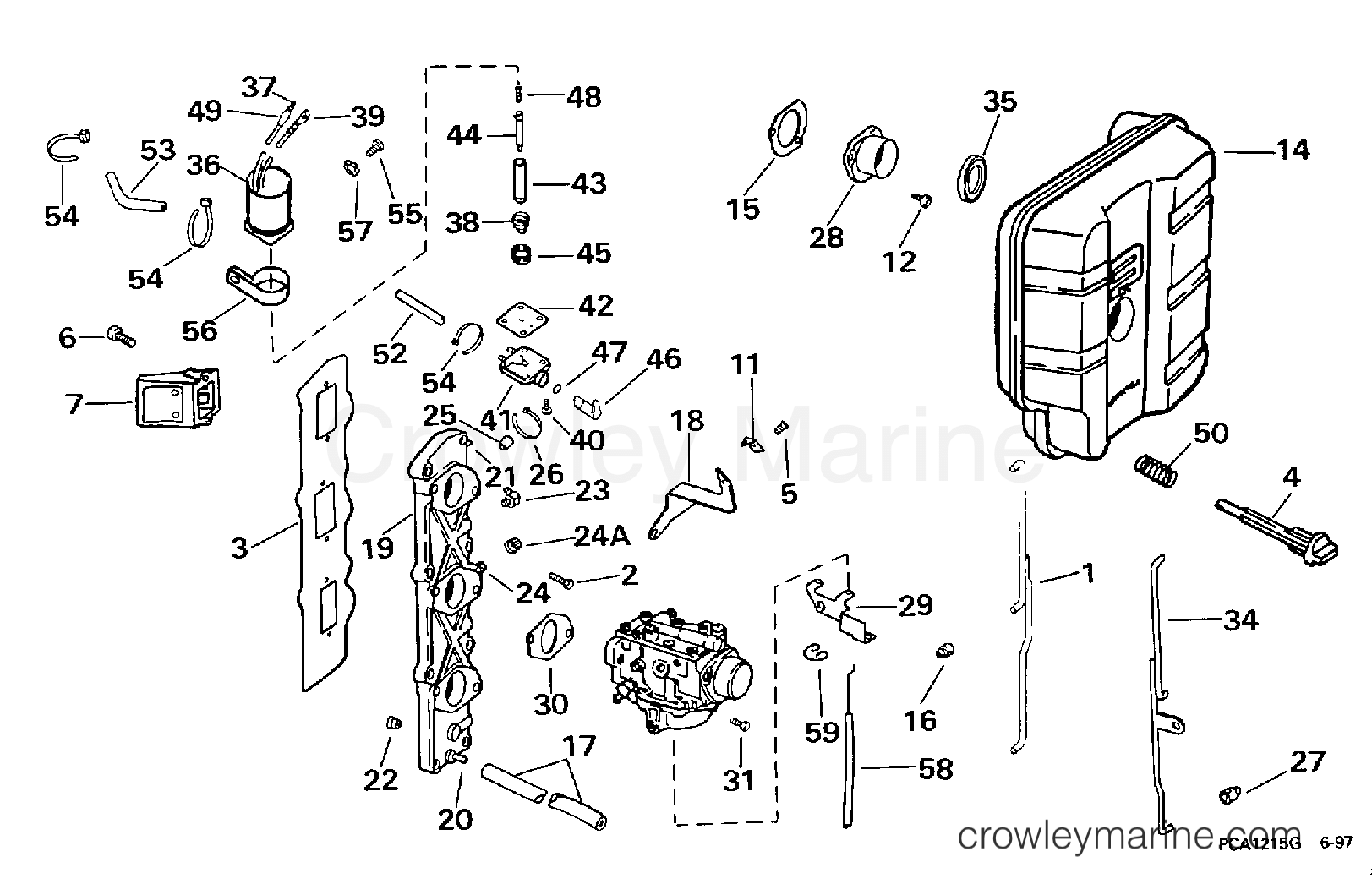

1998 Evinrude Outboards 25 - BE25ARECA INTAKE MANIFOLD & AIR SILENCER section
Use two fingers to zoom
and move the diagram
1998 Evinrude Outboards 25 - BE25ARECA - INTAKE MANIFOLD & AIR SILENCER section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

3
0339427 - Gasket
0339427
0339427 ← 0339427

GASKET, BLOCK TO MANIFOLD

GASKET, BLOCK TO MANIFOLD
Notes: Included in Powerhead Gasket Set
$13.06
You save 5%. $13.75
Leaves in 3-5 days
Required: 1
7
0438610 - Reed Box Assembly
0438610
0438610 ← 0438610

REED BOX ASSEMBLY

REED BOX ASSEMBLY
$49.95
You save $2.80. $52.75
Leaves in 3-5 days
Required: 3
22
0437773 - Check Valve Assembly
0437773
0437773 ← 0437773

CHECK VALVE, RECIRC., #3

CHECK VALVE, RECIRC., #3
$6.99
You save 26%. $9.50
Ships Immediately
5+ Items in stock
Required: 1
25
0327227 - Cap
0327227
0327227 ← 0327227

CAP, PRIMER NIPPLE

CAP, PRIMER NIPPLE
Notes: Tiller Models
$11.16
You save 5%. $11.75
Leaves in 3-5 days
Required: 1
30
0340461 - Gasket
0340461
0340461 ← 0340461

GASKET, CARBURETOR

GASKET, CARBURETOR
Notes: Included in Powerhead Gasket Set
$12.11
You save 5%. $12.75
Leaves in 3-5 days
Required: 3
34
0437028 - Link Assembly
0437028
0437028 ← 0437028

LINK, CHOKE

LINK, CHOKE
Notes: Tiller Models
$94.95
You save $5.05. $100.00
Leaves in 6-8 days
Required: 1
40
0330121 - Screw
0330121
0330121 ← 0330121

SCREW, COVER TO HOUSING

SCREW, COVER TO HOUSING
$5.99
You save 30%. $8.50
Ships Immediately
4 Items in stock
Required: 4
41
0341073 - Primer Solenoid Cover
0341073
0341073 ← 0341073

COVER, PRIMER SOLENOID

COVER, PRIMER SOLENOID
$17.99
You save 10%. $20.00
Ships Immediately
1 Items in stock
Required: 1
50
0340129 - Spring
0340129
0340129 ← 0340129

SPRING, KNOB

SPRING, KNOB
$3.09
You save 5%. $3.25
Leaves in 6-8 days
Required: 1
56
0910201 - Hose To Front Mount Clamp, Starboard
0910201
0910201 ← 0910201

CLAMP, PRIMER SOLENOID

CLAMP, PRIMER SOLENOID
Notes: Remote Models
$1.90
You save 5%. $2.00
Leaves in 6-8 days
Required: 1
59
0336417 - Retainer
0336417
0336417 ← 0336417

RETAINER, CABLE TO BRACKET

RETAINER, CABLE TO BRACKET
Notes: Tiller Models
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
