1998 Evinrude Outboards 25 - BE25ARECA

IGNITION SYSTEM -- ROPE/AC section

Change Section

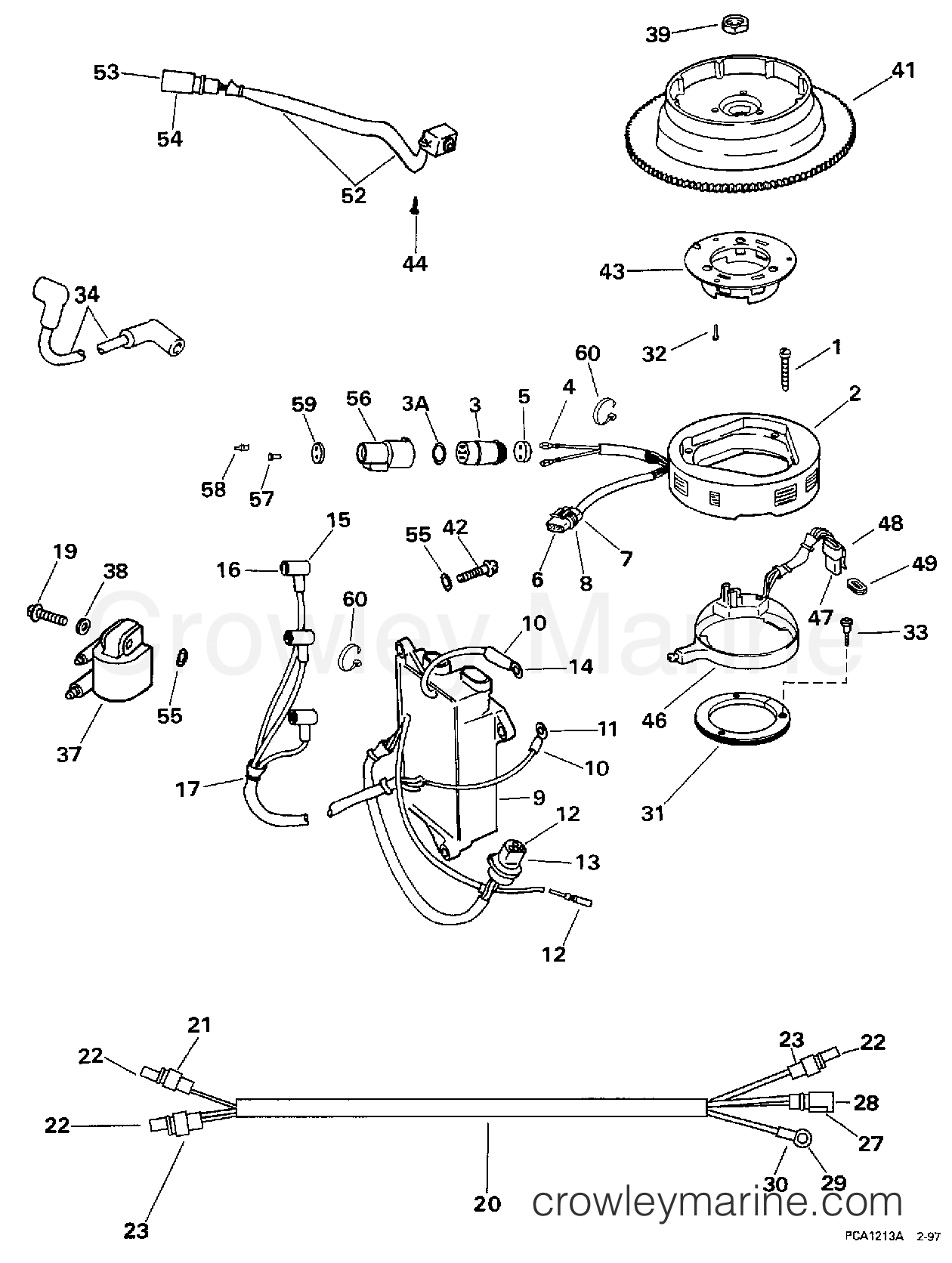

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1998 Evinrude Outboards 25 - BE25ARECA IGNITION SYSTEM -- ROPE/AC section
Use two fingers to zoom
and move the diagram
1998 Evinrude Outboards 25 - BE25ARECA - IGNITION SYSTEM -- ROPE/AC section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

1
0337147 - Screw
0337147
0337147 ← 0337147

SCREW, STATOR MOUNTING, M6

SCREW, STATOR MOUNTING, M6
$5.99
You save 30%. $8.50
Ships Immediately
1 Items in stock
Required: 3
2
0584954 - Compl-3/6 Stator Assembly
0584954
0584954 ← 0584954

STATOR ASSEMBLY., 3/6

STATOR ASSEMBLY., 3/6
$263.90
You save $13.89. $277.79
Leaves in 3-5 days
Required: 1
10
0512037 - Electric Wire Tube
0512037
0512037 ← 0512037

TUBING

TUBING
$7.60
You save 5%. $8.00
Leaves in 6-8 days
Required: 1
13
0512749 - Connector
0512749
0512749 ← 0512749

CONNECTOR, 4-SOCKET

CONNECTOR, 4-SOCKET
$14.96
You save 5%. $15.75
Leaves in 3-5 days
Required: 1
19
0337147 - Screw
0337147
0337147 ← 0337147

SCREW, COIL MOUNTING, M6

SCREW, COIL MOUNTING, M6
$5.99
You save 30%. $8.50
Ships Immediately
1 Items in stock
Required: 3
23
0512745 - 2-socket Charge coil Connector
0512745
0512745 ← 0512745

CONNECTOR, 2-SOCKET

CONNECTOR, 2-SOCKET
$7.69
You save 5%. $8.09
Leaves in 3-5 days
Required: 2
27
0512750 - Connector
0512750
0512750 ← 0512750

SOCKET, 4-PIN

SOCKET, 4-PIN
$13.06
You save 5%. $13.75
Leaves in 3-5 days
Required: 1
43
0514372 - Encoder
0514372
0514372 ← 0514372

ENCODER

ENCODER
$12.63
You save 5%. $13.29
Leaves in 6-8 days
Required: 1
48
0513440 - Sensor Assembly Connector
0513440
0513440 ← 0513440

CONNECTOR, 5-SOCKET

CONNECTOR, 5-SOCKET
$19.95
You save 5%. $20.89
Leaves in 6-8 days
Required: 1
49
0514754 - Connector Seal
0514754
0514754 ← 0514754

SEAL

SEAL
$3.09
You save 5%. $3.25
Leaves in 6-8 days
Required: 1
56
0513663 - 2 Terminal Receptacle Connector
0513663
0513663 ← 0513663

CONNECTOR

CONNECTOR
$14.75
$14.75
Leaves in 3-5 days
Required: 1
57
0914672 - Seal Plug
0914672
0914672 ← 0914672

PLUG, SEALING

PLUG, SEALING
$1.42
You save 5%. $1.49
Leaves in 6-8 days
Required: 2
58
0513666 - Terminal
0513666
0513666 ← 0513666

TERMINAL, BLADE

TERMINAL, BLADE
Notes: Optional
$2.56
You save 5%. $2.69
Leaves in 3-5 days
Required: 2

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
