1998 Evinrude Outboards 6 - BE6DRECR

GEARCASE section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

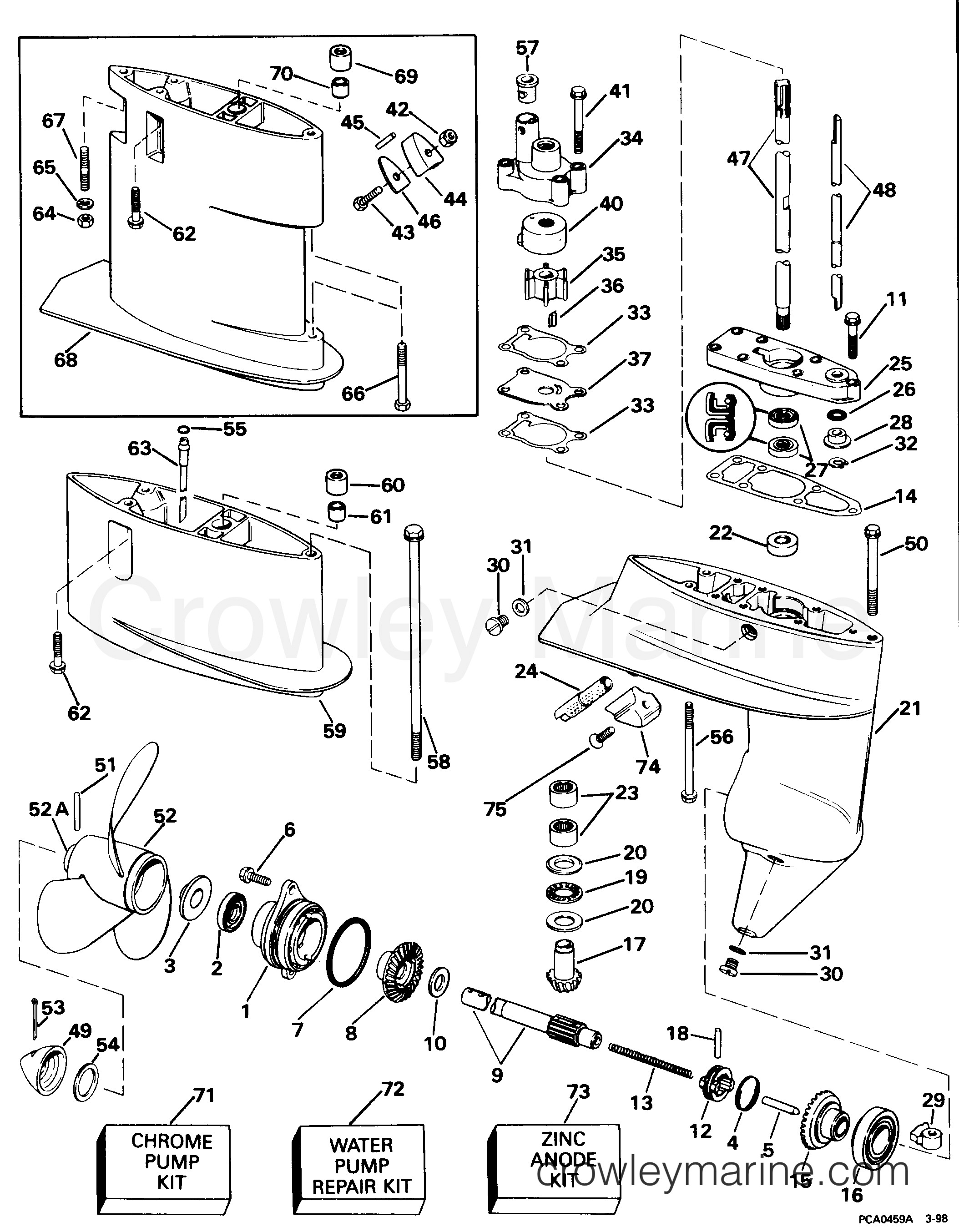

1998 Evinrude Outboards 6 - BE6DRECR GEARCASE section
Use two fingers to zoom
and move the diagram
1998 Evinrude Outboards 6 - BE6DRECR - GEARCASE section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

10
0303361 - Thrust Washer
0303361
0303361 ← 0303361

WASHER, THRUST

WASHER, THRUST
$19.95
You save $2.05. $22.00
Leaves in 6-8 days
Required: 2
16
0389858 - Roller Bearing Assembly
0389858
0389858 ← 0389858

ROLLER BEARING

ROLLER BEARING
$24.99
You save 12%. $28.25
Leaves in 3-5 days
Required: 1
17
0336297 - Pinion Gear
0336297
0336297 ← 0336297

PINION, GEAR

PINION, GEAR
$169.95
You save $10.30. $180.25
Leaves in 3-5 days
Required: 1
24
0396200 - Screen & Plug Assembly
0396200
0396200 ← 0396200

SCREEN & PLUG, WATER INTAKE

SCREEN & PLUG, WATER INTAKE
$79.99
You save $8.26. $88.25
Ships Immediately
1 Items in stock
Required: 1
29
0324615 - Cam
0324615
0324615 ← 0324615

CAM, SHIFT

CAM, SHIFT
$16.43
You save 5%. $17.29
Leaves in 6-8 days
Required: 1
42
0313022 - Lock Nut
0313022
0313022 ← 0313022

NUT, EXHAUST PLUG

NUT, EXHAUST PLUG
Notes: 8SRL Models Only
$7.99
You save 11%. $9.00
Ships Immediately
4 Items in stock
Required: 1
44
0327501 - Exhaust Plug
0327501
0327501 ← 0327501

EXHAUST PLUG

EXHAUST PLUG
Notes: 8SRL Models Only
$13.06
You save 5%. $13.75
Leaves in 3-5 days
Required: 1
46
0327505 - Plate
0327505
0327505 ← 0327505

PLATE, EXHAUST PLUG

PLATE, EXHAUST PLUG
Notes: 8SRL Models Only
$11.16
You save 5%. $11.75
Leaves in 3-5 days
Required: 2
47
0337940 - Driveshaft (20" Models)
0337940
0337940 ← 0337940

DRIVESHAFT, LONG

DRIVESHAFT, LONG
Notes: 5 INCH LONGER PARTS
$671.00
You save $36.00. $707.00
Leaves in 3-5 days
Required: 1
47
0337940 - Driveshaft (20" Models)
0337940
0337940 ← 0337940

DRIVESHAFT, LONG, 20 IN.

DRIVESHAFT, LONG, 20 IN.
Notes: 5 INCH LONGER PARTS
$671.00
You save $36.00. $707.00
Leaves in 3-5 days
Required: 1
75
0328725 - Screw
0328725
0328725 ← 0328725

SCREW, ANODE

SCREW, ANODE
$5.95
You save 8%. $6.50
Ships Immediately
5+ Items in stock
Required: 1
59
0396308 - Gearcase Extension Assembly
0396308
0396308 ← 0396308

GEARCASE EXTENSION

GEARCASE EXTENSION
Notes: 5 INCH LONGER PARTS
$234.95
You save $13.80. $248.75
Leaves in 3-5 days
Required: 1
60
0310674 - Bushing
0310674
0310674 ← 0310674

BUSHING

BUSHING
Notes: 5 INCH LONGER PARTS
$9.99
You save 27%. $13.75
Ships Immediately
1 Items in stock
Required: 1
61
0326742 - Sleeve
0326742
0326742 ← 0326742

SLEEVE

SLEEVE
Notes: 5 INCH LONGER PARTS
$9.99
You save 37%. $15.75
Ships Immediately
1 Items in stock
Required: 1
63
0320025 - Water tube 20 INCH
0320025
0320025 ← 0320025

EXTENSION, WATER TUBE

EXTENSION, WATER TUBE
Notes: 5 INCH LONGER PARTS
$42.04
You save $2.21. $44.25
Leaves in 3-5 days
Required: 1
68
0396032 - Gearcase Extension
0396032
0396032 ← 0396032

EXTENSION ASSEMBLY.

EXTENSION ASSEMBLY.
Notes: 8SRL Models Only
$94.95
You save $5.05. $100.00
Leaves in 6-8 days
Required: 1
69
0310674 - Bushing
0310674
0310674 ← 0310674

BUSHING

BUSHING
Notes: 8SRL Models Only
$9.99
You save 27%. $13.75
Ships Immediately
1 Items in stock
Required: 1
70
0326742 - Sleeve
0326742
0326742 ← 0326742

SLEEVE

SLEEVE
Notes: 8SRL Models Only
$9.99
You save 37%. $15.75
Ships Immediately
1 Items in stock
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
