1998 Evinrude Outboards 5 - BE5FRBECC

CYLINDER & CRANKCASE section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

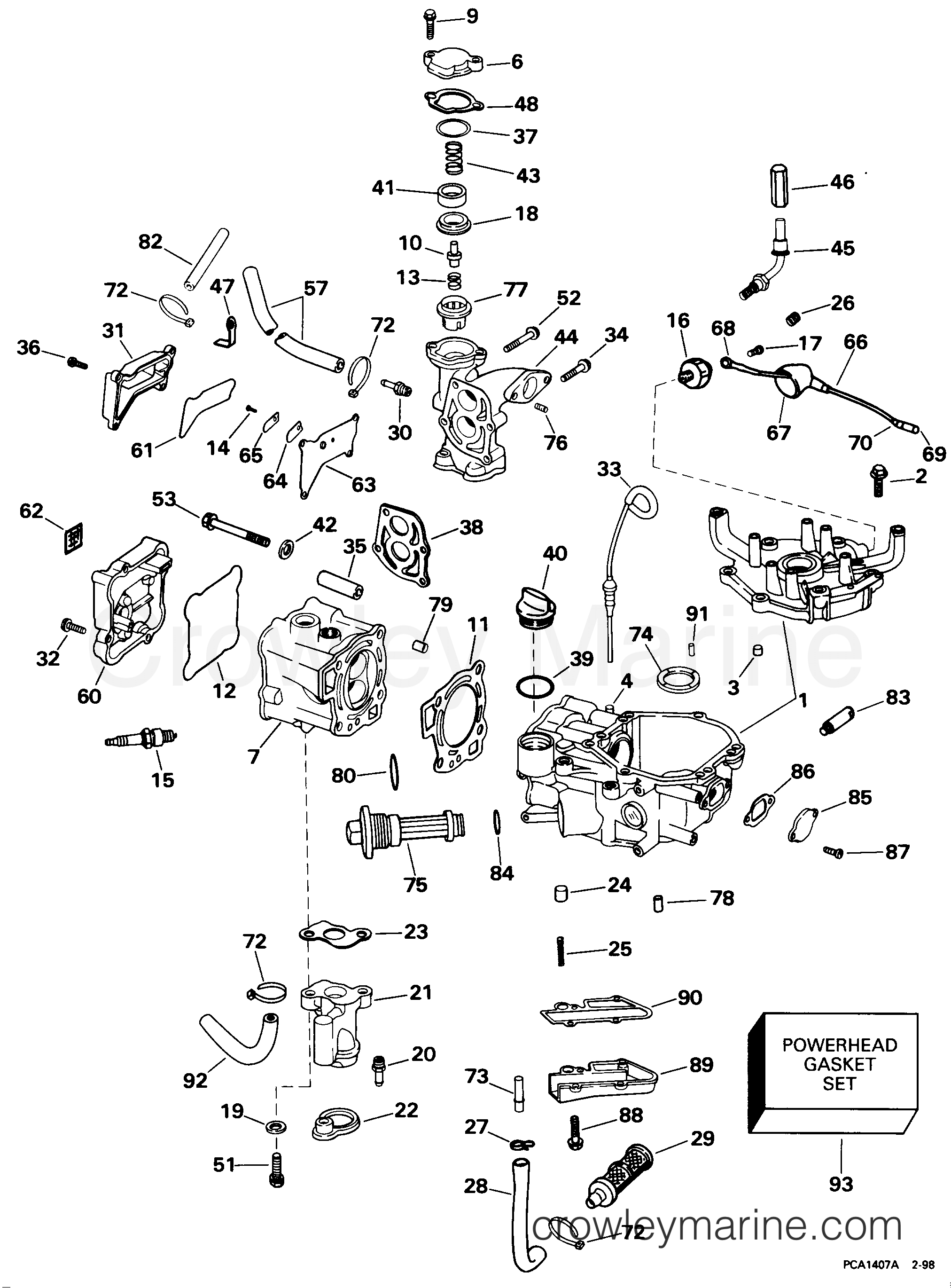

1998 Evinrude Outboards 5 - BE5FRBECC CYLINDER & CRANKCASE section
Use two fingers to zoom
and move the diagram
1998 Evinrude Outboards 5 - BE5FRBECC - CYLINDER & CRANKCASE section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

2
0441107 - Screw
0441107
0441107 ← 0441107

SCREW, BLOCK

SCREW, BLOCK
$.95
You save 5%. $1.00
Leaves in 6-8 days
Required: 6
22
0446074 - Exhaust Tube Seal
0446074
0446074 ← 0446074

SEAL, EXHAUST TUBE

SEAL, EXHAUST TUBE
$12.11
You save 5%. $12.75
Leaves in 3-5 days
Required: 1
29
0338520 - Screen Assembly
0338520
0338520 ← 0338520

SCREEN, OIL

SCREEN, OIL
$13.99
You save 30%. $20.00
Ships Immediately
1 Items in stock
Required: 1
39
0446111 - O-Ring
0446111
0446111 ← 0446111

O-RING, OIL FILL PLUG

O-RING, OIL FILL PLUG
$3.99
You save 29%. $5.59
Ships Immediately
2 Items in stock
Required: 1
40
0446110 - Fill Plug
0446110
0446110 ← 0446110

PLUG, OIL FILL

PLUG, OIL FILL
$6.36
You save 5%. $6.69
Leaves in 6-8 days
Required: 1
44
0441063 - Intake Manifold
0441063
0441063 ← 0441063

INTAKE MANIFOLD

INTAKE MANIFOLD
$124.95
You save $7.04. $131.99
Leaves in 6-8 days
Required: 1
68
0510780 - Ring Terminal
0510780
0510780 ← 0510780

TERMINAL, RING

TERMINAL, RING
$3.99
You save 5%. $4.19
Ships Immediately
4 Items in stock
Required: 1
80
0446209 - O-Ring
0446209
0446209 ← 0446209

O-RING, COVER TO HOUSING

O-RING, COVER TO HOUSING
$4.99
You save 24%. $6.59
Ships Immediately
2 Items in stock
Required: 1
84
0446210 - O-Ring
0446210
0446210 ← 0446210

O-RING, FILTER TO HOUSING

O-RING, FILTER TO HOUSING
$4.99
You save 24%. $6.59
Ships Immediately
1 Items in stock
Required: 1
86
0441084 - Gasket
0441084
0441084 ← 0441084

GASKET, PLATE

GASKET, PLATE
$3.41
You save 5%. $3.59
Leaves in 6-8 days
Required: 1
90
0441086 - Cover Gasket
0441086
0441086 ← 0441086

GASKET, COVER

GASKET, COVER
$5.59
$5.59
Leaves in 6-8 days
Required: 1
91
0441045 - Pin
0441045
0441045 ← 0441045

PIN, THRUST WASHER

PIN, THRUST WASHER
$.95
You save 5%. $1.00
Leaves in 6-8 days
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
