1997 Evinrude Outboards 130 - BE130TLEUB

IGNITION SYSTEM section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

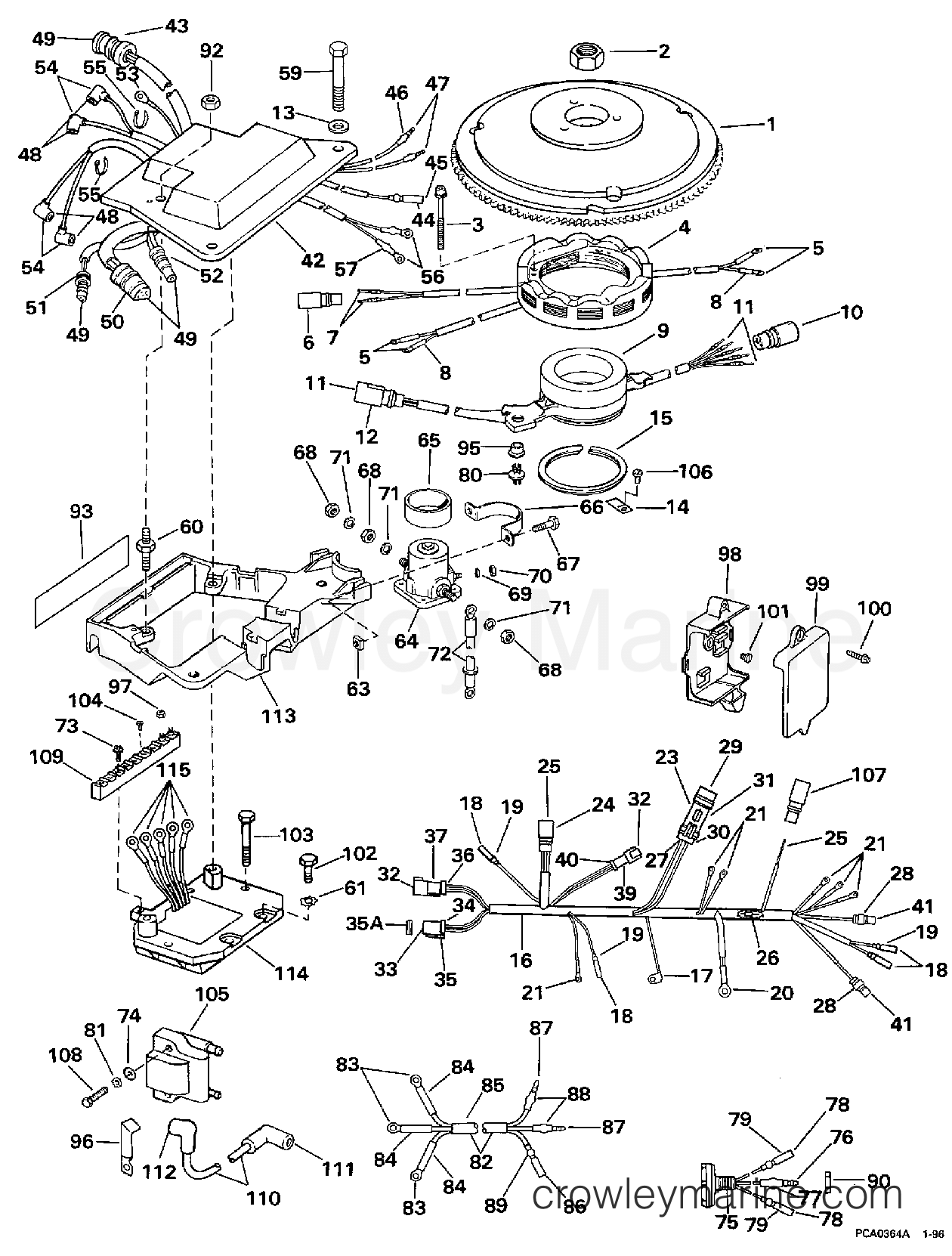

1997 Evinrude Outboards 130 - BE130TLEUB IGNITION SYSTEM section
Use two fingers to zoom
and move the diagram
1997 Evinrude Outboards 130 - BE130TLEUB - IGNITION SYSTEM section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

5
0511829 - Terminal Ring
0511829
0511829 ← 0511829

RING TERMINAL

RING TERMINAL
$.69
$.69
Leaves in 3-5 days
Required: 4
7
0511469 - Temperature Switch Pin
0511469
0511469 ← 0511469

PIN

PIN
$.99
You save 9%. $1.09
Ships Immediately
5+ Items in stock
Required: 2
10
0512754 - 5-Pin Connector
0512754
0512754 ← 0512754

CONNECTOR

CONNECTOR
$14.96
You save 5%. $15.75
Leaves in 3-5 days
Required: 1
11
0511469 - Temperature Switch Pin
0511469
0511469 ← 0511469

PIN

PIN
$.99
You save 9%. $1.09
Ships Immediately
5+ Items in stock
Required: 9
12
0512750 - Connector
0512750
0512750 ← 0512750

CONNECTOR

CONNECTOR
$13.06
You save 5%. $13.75
Leaves in 3-5 days
Required: 1
13
0329241 - Washer
0329241
0329241 ← 0329241

WASHER, POWER PACK

WASHER, POWER PACK
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 1
14
0326439 - Clamp
0326439
0326439 ← 0326439

CLAMP, TIMER BASE

CLAMP, TIMER BASE
$19.95
You save 5%. $20.89
Leaves in 6-8 days
Required: 4
16
0586022 - Engine Cable Assembly
0586022
0586022 ← 0586022

ENGINE CABLE ASSEMBLY.

ENGINE CABLE ASSEMBLY.
$367.65
You save $19.35. $387.00
Leaves in 3-5 days
Required: 1
18
0512876 - Socket Terminal
0512876
0512876 ← 0512876

TERMINAL, RECEPTACLE

TERMINAL, RECEPTACLE
$1.99
You save 26%. $2.69
Ships Immediately
1 Items in stock
Required: 4
19
0513186 - Socket Sleeve Blue
0513186
0513186 ← 0513186

SLEEVE

SLEEVE
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 4
21
0511829 - Terminal Ring
0511829
0511829 ← 0511829

RING TERMINAL

RING TERMINAL
$.69
$.69
Leaves in 3-5 days
Required: 6
23
0514021 - 20A Fuse
0514021
0514021 ← 0514021

FUSE, 20 AMP.

FUSE, 20 AMP.
$1.99
You save 20%. $2.49
Ships Immediately
5+ Items in stock
Required: 2
24
0512750 - Connector
0512750
0512750 ← 0512750

CONNECTOR

CONNECTOR
$13.06
You save 5%. $13.75
Leaves in 3-5 days
Required: 1
25
0511469 - Temperature Switch Pin
0511469
0511469 ← 0511469

PIN

PIN
$.99
You save 9%. $1.09
Ships Immediately
5+ Items in stock
Required: 5
27
0514035 - Fuse connector Terminal
0514035
0514035 ← 0514035

TERMINAL

TERMINAL
$2.56
You save 5%. $2.69
Leaves in 3-5 days
Required: 2
28
0513356 - 1 Socket Connector, Water Temperature
0513356
0513356 ← 0513356

CONNECTOR

CONNECTOR
$9.95
You save 10%. $11.09
Leaves in 3-5 days
Required: 2
30
0514033 - Fuse Plug Connector
0514033
0514033 ← 0514033

CONNECTOR, FUSE

CONNECTOR, FUSE
$9.50
$9.50
Leaves in 3-5 days
Required: 1
34
0514683 - Wedge Lock
0514683
0514683 ← 0514683

LOCK WEDGE

LOCK WEDGE
$3.56
You save 5%. $3.75
Leaves in 3-5 days
Required: 1
35
0514687 - 6-socket Connector, keyswitch - Y
0514687
0514687 ← 0514687

CONNECTOR, 6-SOCKET

CONNECTOR, 6-SOCKET
$18.05
You save 5%. $19.00
Leaves in 3-5 days
Required: 1
35A
0514790 - Lead Plug Seal
0514790
0514790 ← 0514790

SEAL

SEAL
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 1
36
0514684 - Wedge Lock
0514684
0514684 ← 0514684

LOCK WEDGE

LOCK WEDGE
$2.61
You save 5%. $2.75
Leaves in 3-5 days
Required: 1
37
0514688 - 6-pin Connector, sl System Check
0514688
0514688 ← 0514688

CONNECTOR, 6-PIN

CONNECTOR, 6-PIN
$17.10
You save 5%. $18.00
Leaves in 3-5 days
Required: 1
38
0514690 - Sealing Plug
0514690
0514690 ← 0514690

PLUG

PLUG
$9.50
$9.50
Leaves in 3-5 days
Required: 1
39
0514696 - 2 Pin Rcpt Connector
0514696
0514696 ← 0514696

CONNECTOR, 2-PIN

CONNECTOR, 2-PIN
$12.11
You save 5%. $12.75
Leaves in 3-5 days
Required: 1
40
0514697 - Lock Wedge
0514697
0514697 ← 0514697

LOCK WEDGE

LOCK WEDGE
$2.61
You save 5%. $2.75
Leaves in 3-5 days
Required: 1
42
0584041 - Powerpack Kit Assembly
0584041
0584041 ← 0584041

POWER PACK

POWER PACK
$238.73
You save $12.56. $251.29
Leaves in 3-5 days
Required: 1
43
0512749 - Connector
0512749
0512749 ← 0512749

CONNECTOR

CONNECTOR
$14.96
You save 5%. $15.75
Leaves in 3-5 days
Required: 1
44
0513186 - Socket Sleeve Blue
0513186
0513186 ← 0513186

SLEEVE

SLEEVE
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 1
45
0512876 - Socket Terminal
0512876
0512876 ← 0512876

SOCKET, TERMINAL

SOCKET, TERMINAL
$1.99
You save 26%. $2.69
Ships Immediately
1 Items in stock
Required: 1
46
0513185 - Bullet Term Sleeve
0513185
0513185 ← 0513185

SLEEVE

SLEEVE
$4.99
You save 13%. $5.75
Leaves in 3-5 days
Required: 2
47
0512947 - Bullet Terminal
0512947
0512947 ← 0512947

TERMINAL, BULLET

TERMINAL, BULLET
$.69
$.69
Ships Immediately
5+ Items in stock
Required: 2
52
0513356 - 1 Socket Connector, Water Temperature
0513356
0513356 ← 0513356

PLUG, IGNITION SWITCH

PLUG, IGNITION SWITCH
$9.95
You save 10%. $11.09
Leaves in 3-5 days
Required: 1
53
0510818 - Terminal
0510818
0510818 ← 0510818

TERMINAL, GROUND

TERMINAL, GROUND
$2.56
You save 5%. $2.69
Leaves in 3-5 days
Required: 1
56
0511829 - Terminal Ring
0511829
0511829 ← 0511829

TERMINAL

TERMINAL
$.69
$.69
Leaves in 3-5 days
Required: 2
68
0311349 - Nut
0311349
0311349 ← 0311349

NUT, TERMINAL

NUT, TERMINAL
$5.75
$5.75
Leaves in 3-5 days
Required: 3
71
0331259 - Lockwasher
0331259
0331259 ← 0331259

LOCK WASHER

LOCK WASHER
$3.56
You save 5%. $3.75
Leaves in 3-5 days
Required: 3
76
0512947 - Bullet Terminal
0512947
0512947 ← 0512947

BULLET TERMINAL

BULLET TERMINAL
$.69
$.69
Ships Immediately
5+ Items in stock
Required: 1
77
0513185 - Bullet Term Sleeve
0513185
0513185 ← 0513185

SLEEVE

SLEEVE
$4.99
You save 13%. $5.75
Leaves in 3-5 days
Required: 1
78
0512876 - Socket Terminal
0512876
0512876 ← 0512876

SOCKET TERMINAL

SOCKET TERMINAL
$1.99
You save 26%. $2.69
Ships Immediately
1 Items in stock
Required: 2
79
0513186 - Socket Sleeve Blue
0513186
0513186 ← 0513186

SLEEVE, SOCKET

SLEEVE, SOCKET
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 2
83
0510780 - Ring Terminal
0510780
0510780 ← 0510780

RING TERMINAL

RING TERMINAL
$3.99
You save 5%. $4.19
Ships Immediately
5+ Items in stock
Required: 3
85
0511144 - Tubing
0511144
0511144 ← 0511144

TUBING

TUBING
$.95
You save 5%. $1.00
Leaves in 6-8 days
Required: 1
86
0512876 - Socket Terminal
0512876
0512876 ← 0512876

SOCKET

SOCKET
$1.99
You save 26%. $2.69
Ships Immediately
1 Items in stock
Required: 1
87
0512947 - Bullet Terminal
0512947
0512947 ← 0512947

BULLET TERMINAL

BULLET TERMINAL
$.69
$.69
Ships Immediately
5+ Items in stock
Required: 2
88
0513185 - Bullet Term Sleeve
0513185
0513185 ← 0513185

SLEEVE, BULLET

SLEEVE, BULLET
$4.99
You save 13%. $5.75
Leaves in 3-5 days
Required: 2
89
0513186 - Socket Sleeve Blue
0513186
0513186 ← 0513186

SLEEVE, SOCKET

SLEEVE, SOCKET
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 1
98
0342201 - Connectors Bracket
0342201
0342201 ← 0342201

BRACKET, CONNECTORS

BRACKET, CONNECTORS
$12.63
You save 5%. $13.29
Leaves in 6-8 days
Required: 1
99
0342265 - Conn Bracket Cover
0342265
0342265 ← 0342265

COVER, BRACKET

COVER, BRACKET
$14.96
You save 5%. $15.75
Leaves in 3-5 days
Required: 1
104
0329275 - Screw
0329275
0329275 ← 0329275

SCREW, TERMINAL BLOCK

SCREW, TERMINAL BLOCK
$2.61
You save 5%. $2.75
Leaves in 3-5 days
Required: 5
107
0513357 - 1 pin recept Temperature Switch Connector
0513357
0513357 ← 0513357

RECEPTACLE

RECEPTACLE
$13.06
You save 5%. $13.75
Leaves in 3-5 days
Required: 1
115
0511829 - Terminal Ring
0511829
0511829 ← 0511829

RING TERMINAL

RING TERMINAL
$.69
$.69
Leaves in 3-5 days
Required: 5
