1997 Evinrude Outboards 130 - BE130TLEUB

GEARCASE - 130TL & 130TX STANDARD ROTATION section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

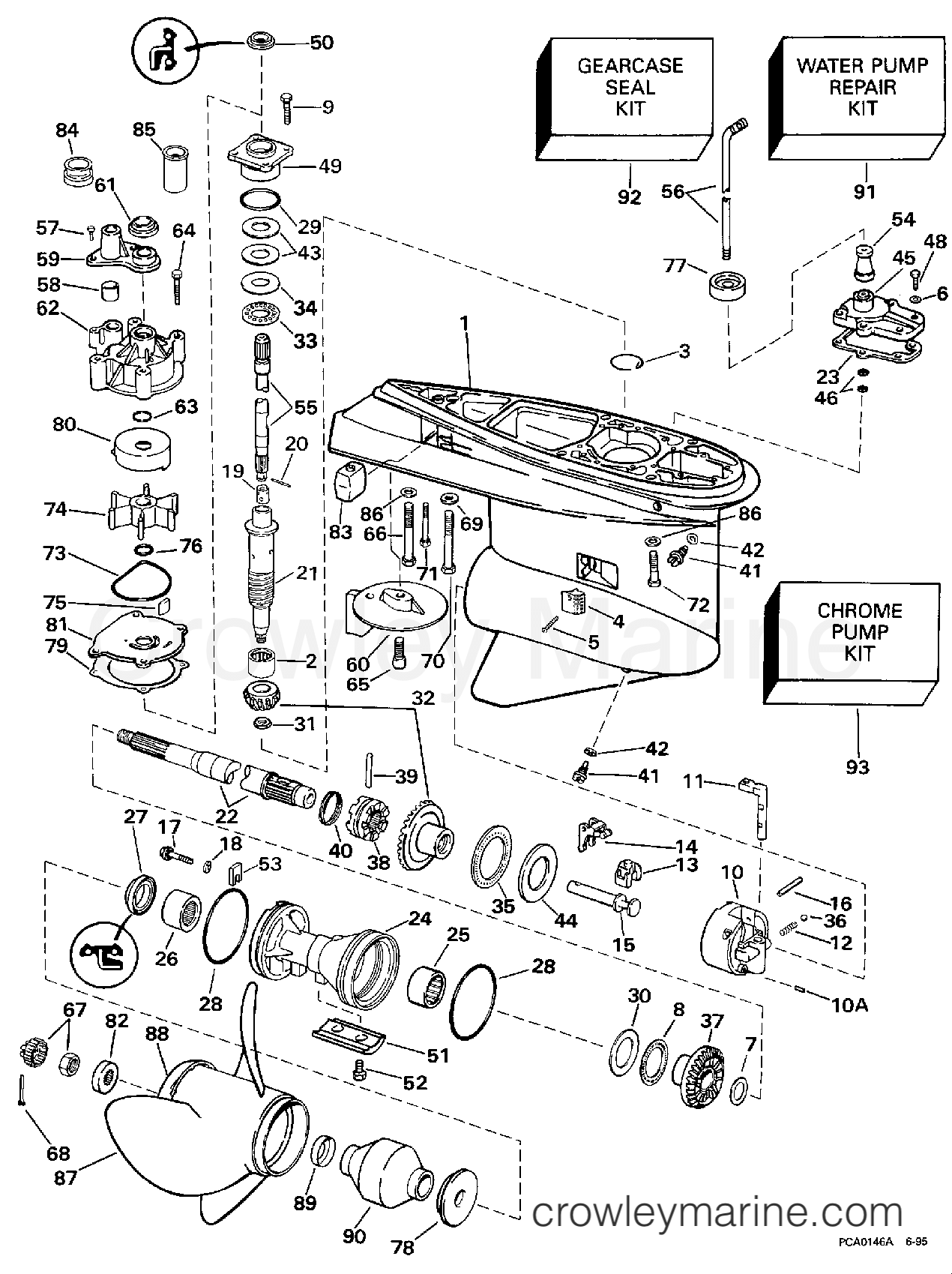

1997 Evinrude Outboards 130 - BE130TLEUB GEARCASE - 130TL & 130TX STANDARD ROTATION section
Use two fingers to zoom
and move the diagram
1997 Evinrude Outboards 130 - BE130TLEUB - GEARCASE - 130TL & 130TX STANDARD ROTATION section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

5
0337061 - Screw
0337061
0337061 ← 0337061

SCREW, SCREEN

SCREW, SCREEN
$5.59
$5.59
Leaves in 3-5 days
Required: 2
18
0328743 - Washer
0328743
0328743 ← 0328743

WASHER, SCREW, TAB

WASHER, SCREW, TAB
$4.99
You save 5%. $5.25
Ships Immediately
3 Items in stock
Required: 2
19
0338504 - Retainer
0338504
0338504 ← 0338504

RETAINER

RETAINER
$5.59
$5.59
Leaves in 3-5 days
Required: 1
37
0336574 - Reverse Gear
0336574
0336574 ← 0336574

GEAR, REVERSE

GEAR, REVERSE
$242.53
You save $12.76. $255.29
Leaves in 3-5 days
Required: 1
53
0333957 - Retaining Tab
0333957
0333957 ← 0333957

TAB, RETAINER

TAB, RETAINER
$29.95
You save $2.34. $32.29
Leaves in 3-5 days
Required: 2
56
0329864 - Shift Rod
0329864
0329864 ← 0329864

SHIFT ROD

SHIFT ROD
Notes: 20 in. Transom Models
$99.95
You save $6.55. $106.50
Leaves in 3-5 days
Required: 1
57
0306643 - Screw
0306643
0306643 ← 0306643

SCREW, COVER TO IMPELLER

SCREW, COVER TO IMPELLER
Notes: Also included in kit 434421
$2.99
You save 17%. $3.59
Ships Immediately
3 Items in stock
Required: 2
59
0338893 - Impeller Housing Cover
0338893
0338893 ← 0338893

COVER, IMPELLER HOUSING

COVER, IMPELLER HOUSING
Notes: Also included in kit 434421
$8.99
You save 7%. $9.69
Ships Immediately
1 Items in stock
Required: 1
62
0435990 - Impeller Housing Assembly
0435990
0435990 ← 0435990

IMPELLER HOUSING, GEARCASE

IMPELLER HOUSING, GEARCASE
Notes: Also included in kit 434421
$17.85
You save 5%. $18.79
Leaves in 3-5 days
Required: 1
76
0302035 - Spacer to Impeller O-Ring (5" Longer Model)
0302035
0302035 ← 0302035

O-RING

O-RING
Notes: Also included in kit 434421
$2.99
You save 17%. $3.59
Ships Immediately
5+ Items in stock
Required: 1
80
0338486 - Cup Impeller Housing
0338486
0338486 ← 0338486

CUP, IMPELLER

CUP, IMPELLER
Notes: Also included in kit 434421
$14.95
You save $1.24. $16.19
Leaves in 3-5 days
Required: 1
80
0338551 - Impeller Housing Cup
0338551
0338551 ← 0338551

CUP, IMPELLER

CUP, IMPELLER
Notes: Chrome Plated
$83.60
You save $4.40. $88.00
Leaves in 3-5 days
Required: 1
81
0338552 - Plate Water Pump
0338552
0338552 ← 0338552

PLATE, IMPELLER HOUSING

PLATE, IMPELLER HOUSING
Notes: Chrome Plated
$89.95
You save $5.30. $95.25
Leaves in 3-5 days
Required: 1
87
 -
← 0

PROPELLER

PROPELLER
Notes: Refer to OMC Genuine Parts Propeller Chart
Items in stock
Required: 1
89
0313926 - Sleeve
0313926
0313926 ← 0313926

SLEEVE

SLEEVE
$7.99
You save 6%. $8.50
Ships Immediately
1 Items in stock
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
