1997 Evinrude Outboards 18 - B25JREUR

GEARCASE section

Change Section

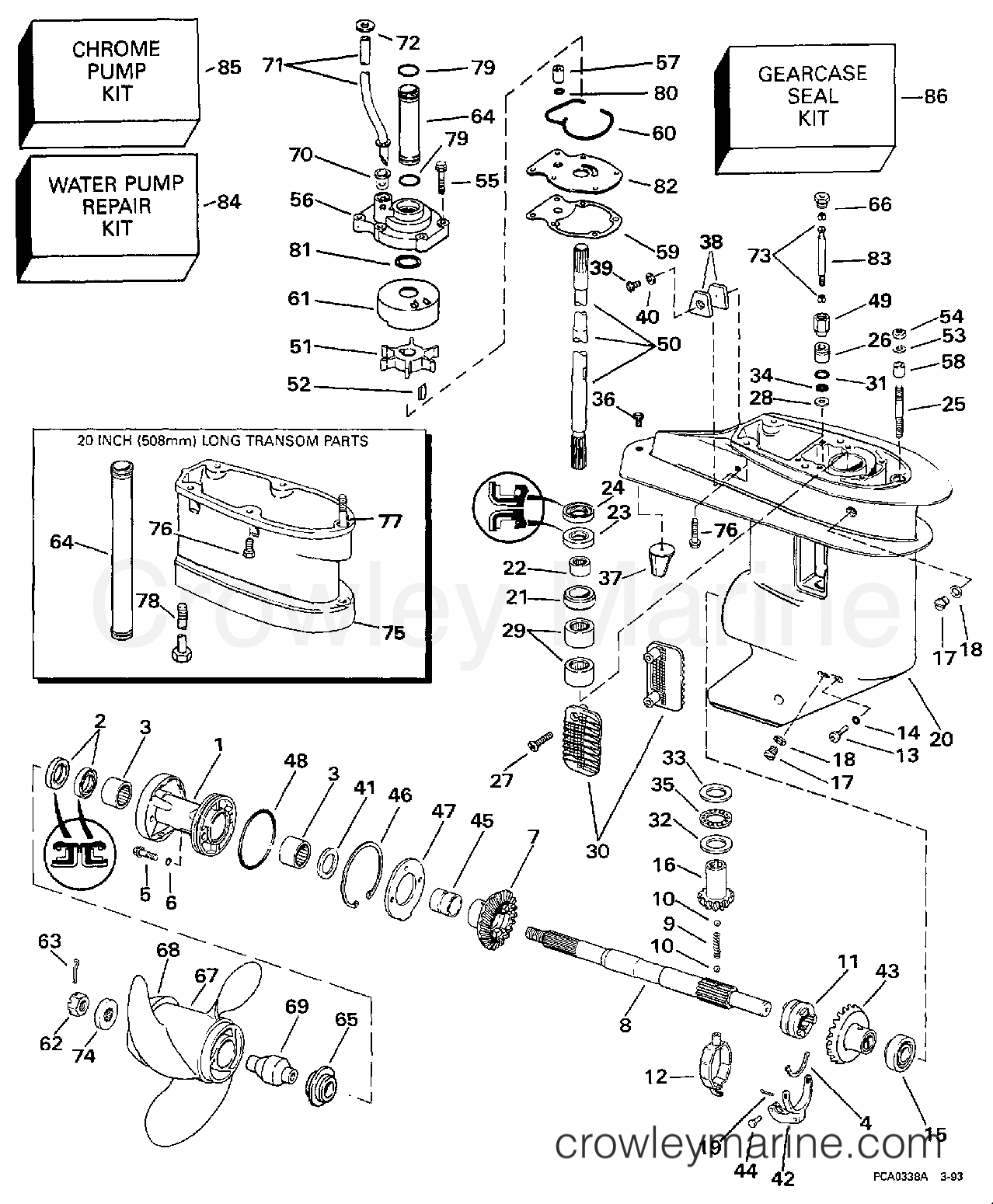

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1997 Evinrude Outboards 18 - B25JREUR GEARCASE section
Use two fingers to zoom
and move the diagram
1997 Evinrude Outboards 18 - B25JREUR - GEARCASE section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

4
0328311 - Clutch Dog Cradle
0328311
0328311 ← 0328311

CRADLE, CLUTCH DOG

CRADLE, CLUTCH DOG
$14.96
You save 5%. $15.75
Leaves in 3-5 days
Required: 1
7
0327655 - Reverse Gear
0327655
0327655 ← 0327655

GEAR, REVERSE

GEAR, REVERSE
$174.99
You save $75.26. $250.25
Ships Immediately
1 Items in stock
Required: 1
8
0439143 - Propeller Shaft Assembly
0439143
0439143 ← 0439143

PROPELLER SHAFT

PROPELLER SHAFT
$454.99
You save $195.76. $650.75
Ships Immediately
1 Items in stock
Required: 1
11
0337020 - Clutch dog Shifter
0337020
0337020 ← 0337020

SHIFTER, CLUTCH DOG

SHIFTER, CLUTCH DOG
$133.99
You save $58.01. $192.00
Ships Immediately
1 Items in stock
Required: 1
32
0330441 - Lower Thrust Washer
0330441
0330441 ← 0330441

THRUST WASHER, LOWER

THRUST WASHER, LOWER
$23.99
You save $2.26. $26.25
Ships Immediately
1 Items in stock
Required: 1
33
0327716 - Thrust Washer
0327716
0327716 ← 0327716

THRUST WASHER, UPPER

THRUST WASHER, UPPER
$28.03
You save $1.47. $29.50
Leaves in 3-5 days
Required: 1
38
0434029 - KIT AY,ANODE
0434029
0434029 ← 0434029

ANODE KIT ASSEMBLY.

ANODE KIT ASSEMBLY.
$.00
You save 100%. $.00
Ships Immediately
2 Items in stock
Required: 1
40
0304454 - Lockwasher
0304454
0304454 ← 0304454

LOCK WASHER

LOCK WASHER
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 1
42
0337019 - Shift Lever
0337019
0337019 ← 0337019

LEVER, SHIFTER

LEVER, SHIFTER
$28.03
You save $1.47. $29.50
Leaves in 3-5 days
Required: 1
45
0319635 - Reverse Gear Bushing
0319635
0319635 ← 0319635

BUSHING, REVERSE GEAR

BUSHING, REVERSE GEAR
$24.95
You save $1.55. $26.50
Leaves in 3-5 days
Required: 1
47
0319746 - Housing Retaining Plate
0319746
0319746 ← 0319746

RETAINER PLATE, HOUSING

RETAINER PLATE, HOUSING
$24.99
You save $2.51. $27.50
Ships Immediately
1 Items in stock
Required: 1
50
0341635 - Driveshaft (15" Models)
0341635
0341635 ← 0341635

DRIVESHAFT, STANDARD.

DRIVESHAFT, STANDARD.
$278.83
You save $14.67. $293.50
Leaves in 3-5 days
Required: 1
54
0306422 - Nut
0306422
0306422 ← 0306422

NUT

NUT
Notes: 20 INCH (508mm) LONG TRANSOM PARTS
$5.75
$5.75
Leaves in 3-5 days
Required: 1
55
0328725 - Screw
0328725
0328725 ← 0328725

SCREW, IMPELLER HOUSING

SCREW, IMPELLER HOUSING
$5.95
You save 8%. $6.50
Ships Immediately
5+ Items in stock
Required: 6
57
0328754 - Bushing
0328754
0328754 ← 0328754

BUSHING, IMPELLER HOUSING

BUSHING, IMPELLER HOUSING
$9.95
You save 6%. $10.59
Ships Immediately
1 Items in stock
Required: 1
58
0319785 - Bushing
0319785
0319785 ← 0319785

BUSHING

BUSHING
Notes: 20 INCH (508mm) LONG TRANSOM PARTS
$14.95
You save 11%. $16.75
Leaves in 3-5 days
Required: 1
58
0319785 - Bushing
0319785
0319785 ← 0319785

BUSHING, STUD

BUSHING, STUD
Notes: 20 INCH (508mm) LONG TRANSOM PARTS
$14.95
You save 11%. $16.75
Leaves in 3-5 days
Required: 1
68
0332542 - Converging Ring
0332542
0332542 ← 0332542

CONVERGING RING

CONVERGING RING
$26.13
You save $1.37. $27.50
Leaves in 3-5 days
Required: 1
79
0311338 - O-Ring 20 Inch (508Mm) Long Transom Parts
0311338
0311338 ← 0311338

O-RING

O-RING
Notes: Also included in kit 393630
$2.95
You save 5%. $3.09
Ships Immediately
5+ Items in stock
Required: 2
83
0331479 - Lower Shift Rod
0331479
0331479 ← 0331479

SHIFT ROD, LOWER

SHIFT ROD, LOWER
$31.11
You save $1.64. $32.75
Leaves in 3-5 days
Required: 1
50
0341637 - DRIVESHAFT,20"
0341637 ← 0341638
0341637

DRIVESHAFT, LONG

DRIVESHAFT, LONG
Notes: 20 INCH (508mm) LONG TRANSOM PARTS
$299.95
You save $17.30. $317.25
Leaves in 3-5 days
Required: 1
78
0305283 - Screw
0305283
0305283 ← 0305283

SCREW, EXTENSION

SCREW, EXTENSION
Notes: 20 INCH (508mm) LONG TRANSOM PARTS
$37.99
You save $16.00. $53.99
Ships Immediately
5+ Items in stock
Required: 1
0325974
0325974 - RUBBER MOUNT, Upper 20 INCH (508 MM) LONG PARTS
0325974
0325974 ← 0325974

MOUNT, RUBBER, UPPER

MOUNT, RUBBER, UPPER
Notes: Not Shown 20 INCH (508mm) LONG TRANSOM PARTS
$31.99
You save $3.01. $35.00
Ships Immediately
5+ Items in stock
Required: 2

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
