1997 Evinrude Outboards 9.9 - BE10FRELUA

MIDSECTION section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

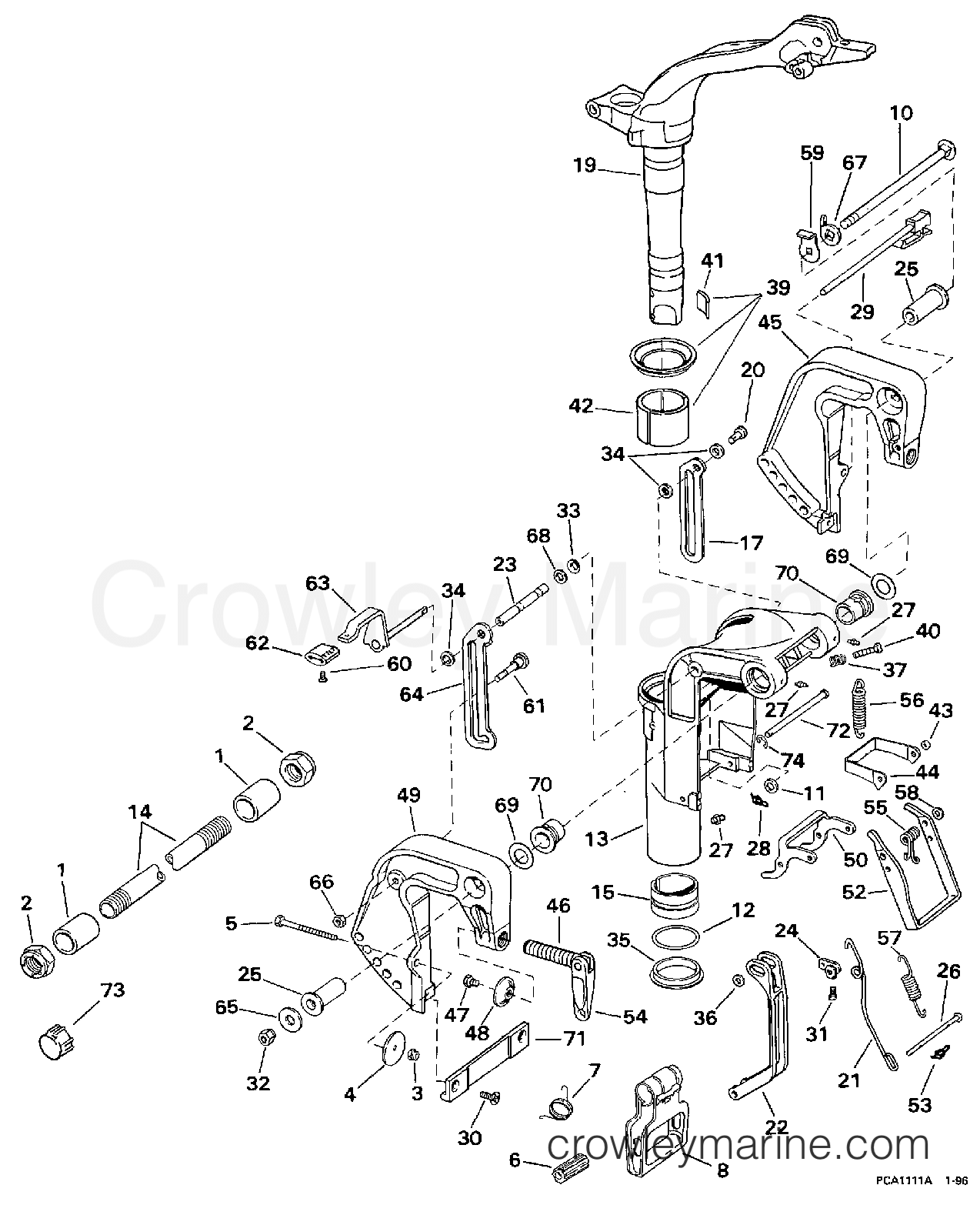

1997 Evinrude Outboards 9.9 - BE10FRELUA MIDSECTION section
Use two fingers to zoom
and move the diagram
1997 Evinrude Outboards 9.9 - BE10FRELUA - MIDSECTION section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

1
0124346 - Tilt Tube Spacer
0124346
0124346 ← 0124346

SPACER, TUBE

SPACER, TUBE
Notes: 9.9 REL High Thrust 15 RE
$13.06
You save 5%. $13.75
Leaves in 3-5 days
Required: 2
3
0310702 - Screw Nut
0310702
0310702 ← 0310702

NUT, SCREW

NUT, SCREW
Notes: 9.9 TE High Thrust 9.9 REL High Thrust 15 RE
$7.36
You save 5%. $7.75
Leaves in 3-5 days
Required: 2
4
0315776 - Washer
0315776
0315776 ← 0315776

WASHER, SCREW

WASHER, SCREW
Notes: 9.9 TE High Thrust 9.9 REL High Thrust 15 RE
$4.99
You save 29%. $7.00
Ships Immediately
1 Items in stock
Required: 2
5
0334427 - Screw
0334427
0334427 ← 0334427

SCREW, STERN BRACKET. TO TRANSOM

SCREW, STERN BRACKET. TO TRANSOM
Notes: 9.9 TE High Thrust 9.9 REL High Thrust 15 RE
$13.06
You save 5%. $13.75
Leaves in 3-5 days
Required: 2
6
0339024 - Lift Handle Spacer
0339024
0339024 ← 0339024

SPACER, LIFT HANDLE

SPACER, LIFT HANDLE
Notes: 9.9 Rope 9.9 TE High Thrust 15 Rope & TE
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 1
7
0338297 - Torsion Spring
0338297
0338297 ← 0338297

SPRING, LIFT HANDLE

SPRING, LIFT HANDLE
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 1
8
0338298 - Lift Handle
0338298
0338298 ← 0338298

LIFT HANDLE

LIFT HANDLE
$49.95
You save $3.55. $53.50
Leaves in 3-5 days
Required: 1
22
0338874 - Carrying Handle
0338874
0338874 ← 0338874

CARRYING HANDLE

CARRYING HANDLE
$23.99
You save $1.26. $25.25
Leaves in 3-5 days
Required: 1
31
0319108 - Screw
0319108
0319108 ← 0319108

SCREW, BELLCRANK

SCREW, BELLCRANK
$5.99
You save 30%. $8.50
Ships Immediately
1 Items in stock
Required: 1
37
0551113 - Spring
0551113
0551113 ← 0551113

SPRING, FRICTION ADJUST.

SPRING, FRICTION ADJUST.
$22.99
You save $2.26. $25.25
Ships Immediately
5+ Items in stock
Required: 1
44
0319050 - Locking Lever
0319050
0319050 ← 0319050

LOCKING LEVER, REVERSE LEVER

LOCKING LEVER, REVERSE LEVER
Notes: 9.9 Rope 15 Rope & TE 15 RE
$28.26
You save $1.49. $29.75
Leaves in 3-5 days
Required: 1
56
0338489 - Spring
0338489
0338489 ← 0338489

SPRING, REVERSE LOCK

SPRING, REVERSE LOCK
Notes: 9.9 Rope 15 Rope & TE 15 RE
$13.06
You save 5%. $13.75
Leaves in 3-5 days
Required: 3
56
0340219 - Spring
0340219
0340219 ← 0340219

SPRING, REVERSE LOCK

SPRING, REVERSE LOCK
Notes: 9.9 TE High Thrust 9.9 REL High Thrust
$11.77
You save 5%. $12.39
Leaves in 6-8 days
Required: 3
58
0204293 - Washer
0204293
0204293 ← 0204293

WASHER, PIN LINK TO LEVER

WASHER, PIN LINK TO LEVER
Notes: 9.9 Rope 15 Rope & TE 15 RE
$4.50
$4.50
Leaves in 6-8 days
Required: 2
65
0314099 - Washer
0314099
0314099 ← 0314099

WASHER, TILT BOLT TO SWIVEL BRACKET.

WASHER, TILT BOLT TO SWIVEL BRACKET.
Notes: 9.9 Rope 9.9 TE High Thrust 15 Rope & TE
$8.55
You save 5%. $9.00
Leaves in 3-5 days
Required: 1
66
0313022 - Lock Nut
0313022
0313022 ← 0313022

LOCKNUT, PIN

LOCKNUT, PIN
$7.99
You save 11%. $9.00
Ships Immediately
4 Items in stock
Required: 2
67
0300364 - Link
0300364
0300364 ← 0300364

LINK, SAFETY CHAIN

LINK, SAFETY CHAIN
Notes: 9.9 Rope 9.9 TE High Thrust 15 Rope & TE
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 1
69
0319699 - Stern Bracket Thrust Washer
0319699
0319699 ← 0319699

WASHER, STERN BRACKET

WASHER, STERN BRACKET
$8.99
You save 5%. $9.50
Ships Immediately
2 Items in stock
Required: 2

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
