1997 Evinrude Outboards 9.9 - BE10FRELUA

CYLINDER & CRANKCASE section

Change Section

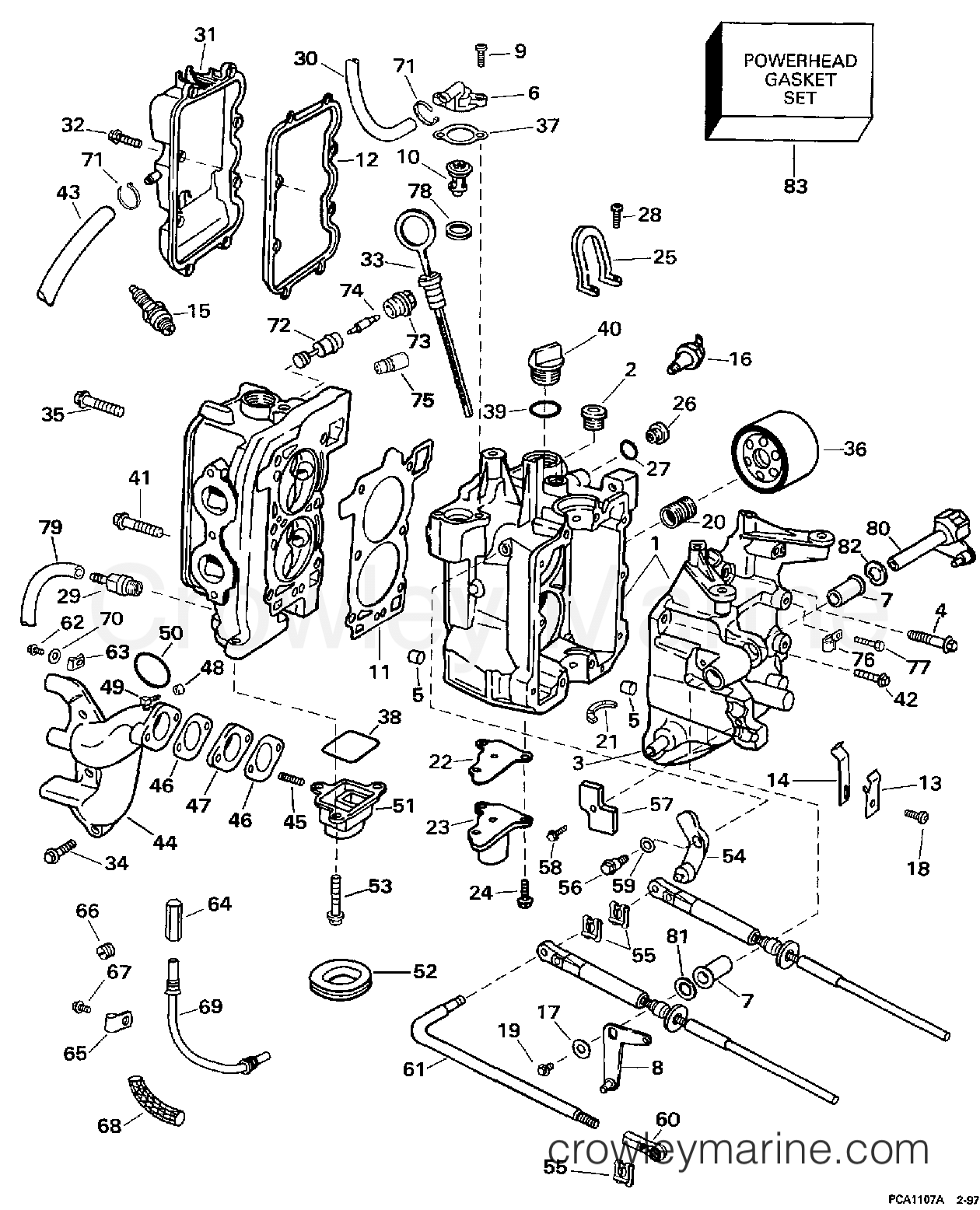

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1997 Evinrude Outboards 9.9 - BE10FRELUA CYLINDER & CRANKCASE section
Use two fingers to zoom
and move the diagram
1997 Evinrude Outboards 9.9 - BE10FRELUA - CYLINDER & CRANKCASE section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

3
0332406 - Pin
0332406
0332406 ← 0332406

PIN, ROLL

PIN, ROLL
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 2
5
0337228 - Dowel Pin
0337228
0337228 ← 0337228

PIN, DOWEL

PIN, DOWEL
$4.59
$4.59
Leaves in 6-8 days
Required: 4
14
0330913 - Shift detent Bracket Spring
0330913
0330913 ← 0330913

SPRING, SHIFT DETENT

SPRING, SHIFT DETENT
$8.55
You save 5%. $9.00
Leaves in 3-5 days
Required: 1
20
0338326 - Oil Filter Adaptor
0338326
0338326 ← 0338326

ADAPTER, OIL FILTER

ADAPTER, OIL FILTER
$6.54
You save 5%. $6.88
Leaves in 6-8 days
Required: 1
28
0337244 - Screw
0337244
0337244 ← 0337244

SCREW, LIFT BRACKET

SCREW, LIFT BRACKET
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 2
29
0337229 - Valve Keeper
0337229
0337229 ← 0337229

KEEPER, VALVE

KEEPER, VALVE
$2.85
You save 5%. $3.00
Leaves in 6-8 days
Required: 8
32
0337197 - Cam Pulley
0337197
0337197 ← 0337197

PULLEY, CAM

PULLEY, CAM
$214.95
You save $11.74. $226.69
Leaves in 6-8 days
Required: 1
48
0337216 - Rocker Arm Shaft
0337216
0337216 ← 0337216

SHAFT, ROCKER ARM

SHAFT, ROCKER ARM
$23.74
You save $1.25. $24.99
Leaves in 6-8 days
Required: 1
50
0329241 - Washer
0329241
0329241 ← 0329241

WASHER, NUT, COVER

WASHER, NUT, COVER
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 2
58
0337186 - Valve Guide
0337186
0337186 ← 0337186

GUIDE, VALVE

GUIDE, VALVE
$12.63
You save 5%. $13.29
Leaves in 6-8 days
Required: 4

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
