1997 Evinrude Outboards 3 - E3REUC

TILLER ARM section

Change Section

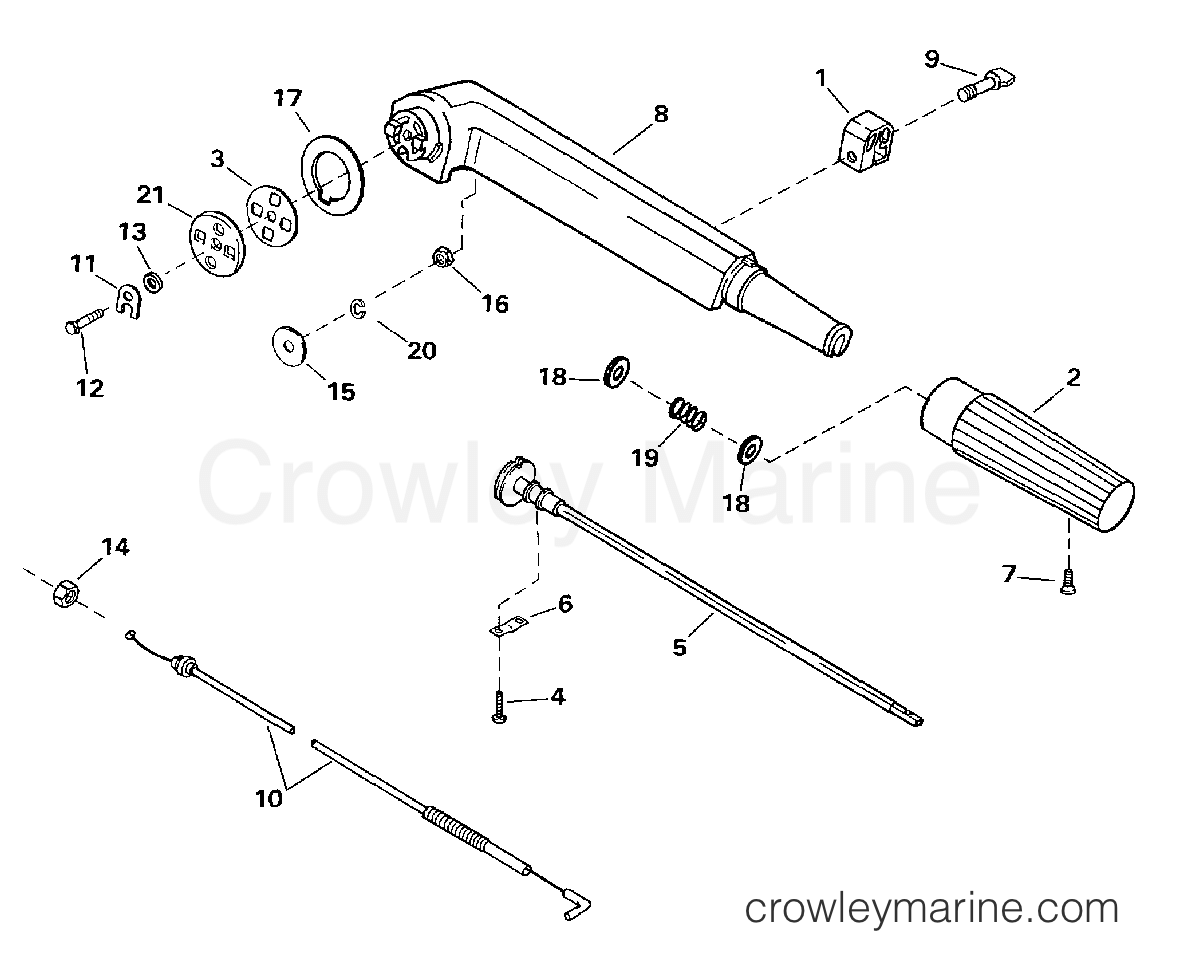

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1997 Evinrude Outboards 3 - E3REUC TILLER ARM section
Use two fingers to zoom
and move the diagram
1997 Evinrude Outboards 3 - E3REUC - TILLER ARM section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

2
0433578 - Grip Assembly
0433578
0433578 ← 0433578

GRIP, TILLER ARM

GRIP, TILLER ARM
$28.02
You save $1.47. $29.49
Leaves in 6-8 days
Required: 1
4
0124880 - Screw
0124880
0124880 ← 0124880

SCREW, RETAINER

SCREW, RETAINER
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 2
7
0511292 - Screw
0511292
0511292 ← 0511292

SCREW, GRIP TO ROD

SCREW, GRIP TO ROD
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 1
10
0437512 - Throttle Cable Assembly
0437512
0437512 ← 0437512

THROTTLE CABLE

THROTTLE CABLE
$99.99
You save $5.26. $105.25
Leaves in 3-5 days
Required: 1
13
0329070 - Washer
0329070
0329070 ← 0329070

WASHER, RETAINER

WASHER, RETAINER
$9.50
$9.50
Leaves in 3-5 days
Required: 1
14
0912072 - Cable to manifold Nut
0912072
0912072 ← 0912072

NUT, CABLE TO MANIFOLD

NUT, CABLE TO MANIFOLD
$5.99
You save 25%. $7.99
Ships Immediately
5+ Items in stock
Required: 2
15
0331249 - Washer
0331249
0331249 ← 0331249

WASHER, TILLER ARM

WASHER, TILLER ARM
$5.99
You save 30%. $8.50
Ships Immediately
1 Items in stock
Required: 1
16
0123603 - Locknut
0123603
0123603 ← 0123603

NUT, LOCK

NUT, LOCK
$5.75
$5.75
Leaves in 3-5 days
Required: 1
17
0336214 - Washer
0336214
0336214 ← 0336214

WASHER, SCREW

WASHER, SCREW
$7.31
You save 5%. $7.69
Leaves in 6-8 days
Required: 1
19
0336640 - Spring
0336640
0336640 ← 0336640

SPRING, GRIP TO ARM

SPRING, GRIP TO ARM
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 1
21
0338956 - Retaining Plate
0338956
0338956 ← 0338956

PLATE, RETAINING

PLATE, RETAINING
$9.50
$9.50
Leaves in 3-5 days
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
