1994 Evinrude Outboards 185 - E185ESERK

INTAKE MANIFOLD - SUFFIX "C, M, R, S" MODELS section

Change Section

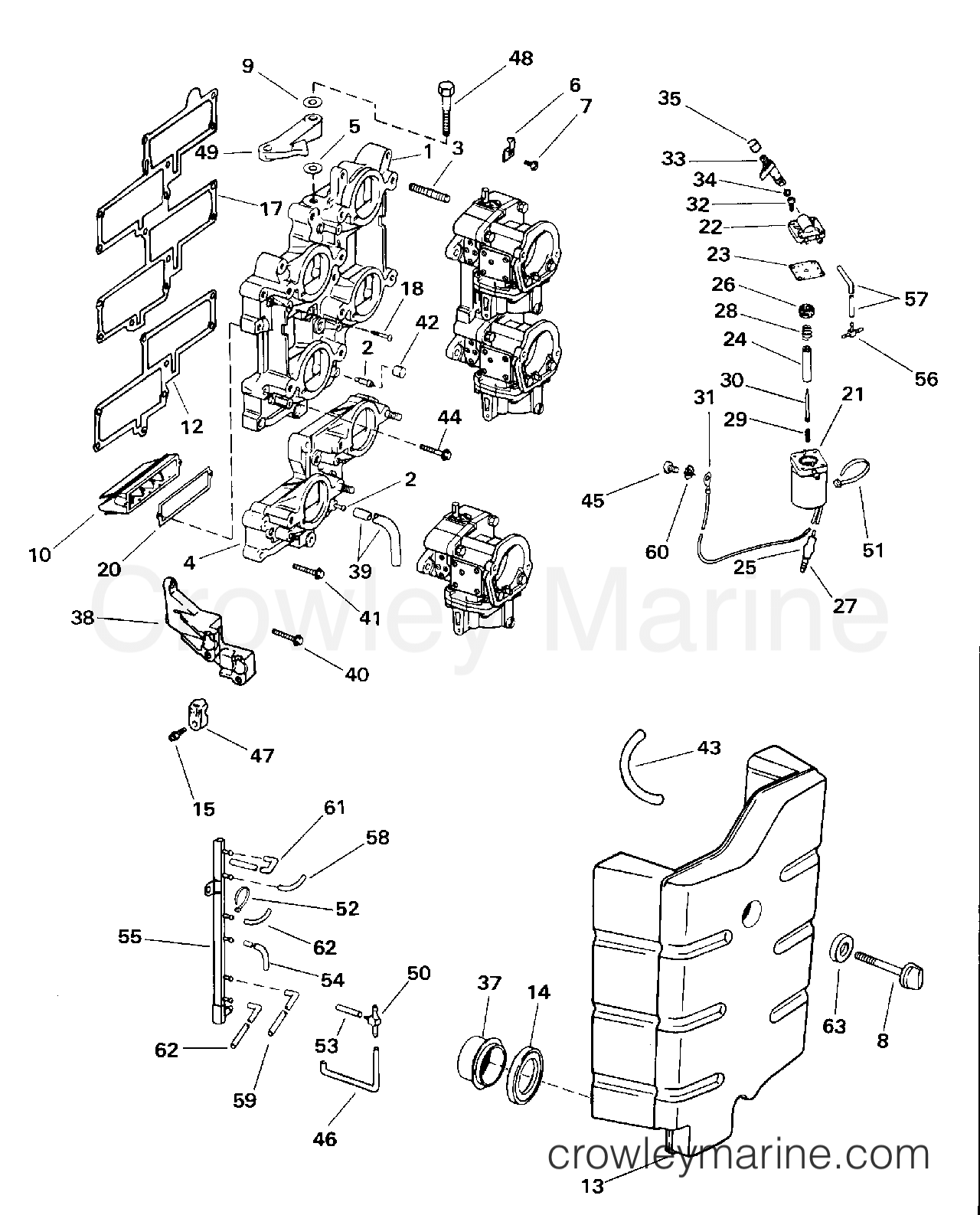

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1994 Evinrude Outboards 185 - E185ESERK INTAKE MANIFOLD - SUFFIX "C, M, R, S" MODELS section
Use two fingers to zoom
and move the diagram
1994 Evinrude Outboards 185 - E185ESERK - INTAKE MANIFOLD - SUFFIX "C, M, R, S" MODELS section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

3
0310872 - Stud
0310872
0310872 ← 0310872

STUD

STUD
$5.95
$6.00
Leaves in 6-8 days
Required: 0
5
0320744 - Washer
0320744
0320744 ← 0320744

WASHER, SCREW

WASHER, SCREW
$3.80
You save 5%. $4.00
Leaves in 6-8 days
Required: 1
7
0310379 - Screw
0310379
0310379 ← 0310379

SCREW, TIMING POINTER

SCREW, TIMING POINTER
$4.99
You save 35%. $7.69
Ships Immediately
1 Items in stock
Required: 1
9
0341381 - Washer
0341381
0341381 ← 0341381

WASHER, THROTTLE CAM

WASHER, THROTTLE CAM
$4.95
You save 5%. $5.19
Leaves in 6-8 days
Required: 1
10
0397336 - Reed Box
0397336
0397336 ← 0397336

REED BOX ASSEMBLY.

REED BOX ASSEMBLY.
$154.99
You save $16.01. $171.00
Ships Immediately
1 Items in stock
Required: 6
15
0328725 - Screw
0328725
0328725 ← 0328725

SCREW, TRUNNION COVER

SCREW, TRUNNION COVER
$5.95
You save 8%. $6.50
Ships Immediately
5+ Items in stock
Required: 2
18
0332265 - Screw
0332265
0332265 ← 0332265

SCREW, REED BOX

SCREW, REED BOX
$5.99
You save 30%. $8.50
Ships Immediately
1 Items in stock
Required: 12
31
0510818 - Terminal
0510818
0510818 ← 0510818

TERMINAL

TERMINAL
$2.56
You save 5%. $2.69
Leaves in 3-5 days
Required: 1
32
0330121 - Screw
0330121
0330121 ← 0330121

SCREW, COVER TO HOUSING

SCREW, COVER TO HOUSING
$5.99
You save 30%. $8.50
Ships Immediately
4 Items in stock
Required: 4
35
0126341 - Valve Cap
0126341
0126341 ← 0126341

CAP

CAP
$8.99
You save 5%. $9.50
Ships Immediately
2 Items in stock
Required: 1
37
0339842 - Silencer to Carburetor Sleeve
0339842
0339842 ← 0339842

SLEEVE, AIR SILENCER

SLEEVE, AIR SILENCER
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 6
38
0340132 - Trunnion Block
0340132
0340132 ← 0340132

TRUNNION BLOCK

TRUNNION BLOCK
$3.80
You save 5%. $4.00
Leaves in 6-8 days
Required: 1
41
0307471 - Screw
0307471
0307471 ← 0307471

SCREW, MANIFOLD, SHORT

SCREW, MANIFOLD, SHORT
$5.99
You save 14%. $7.00
Ships Immediately
2 Items in stock
Required: 9
42
0322892 - Cap.
0322892
0322892 ← 0322892

CAP, FITTING, UPPER

CAP, FITTING, UPPER
$3.56
You save 5%. $3.75
Leaves in 3-5 days
Required: 1
43
 -
← 0

HOSE, AIR SILENCER TO CRANKCASE

HOSE, AIR SILENCER TO CRANKCASE
Notes: Cut to Length From 25 ft. (7,6m) Roll, 335802
Items in stock
Required: 1
47
0329271 - Trunnion Cover
0329271
0329271 ← 0329271

COVER, TRUNNION

COVER, TRUNNION
$19.95
$20.00
Leaves in 3-5 days
Required: 2
57
 -
← 0

HOSE, PRIMER

HOSE, PRIMER
Notes: Cut to Length From 25 ft. (7,6m) Roll, 327229
Items in stock
Required: 0
60
0303701 - Lockwasher
0303701
0303701 ← 0303701

WASHER

WASHER
$5.75
$5.75
Leaves in 3-5 days
Required: 1
