1994 Evinrude Outboards 185 - E185ESERK

GEARCASE - COUNTER ROTATION section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

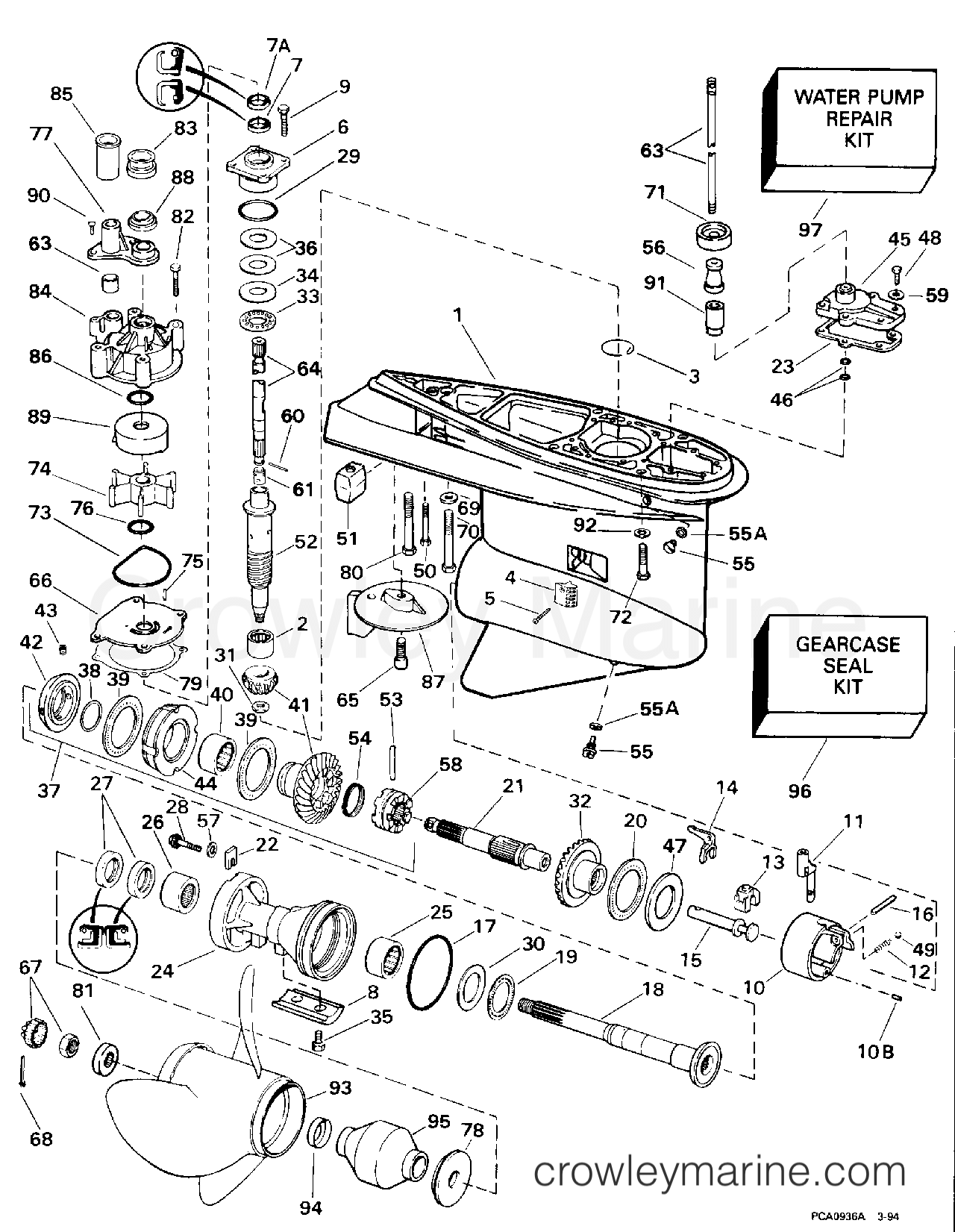

1994 Evinrude Outboards 185 - E185ESERK GEARCASE - COUNTER ROTATION section
Use two fingers to zoom
and move the diagram
1994 Evinrude Outboards 185 - E185ESERK - GEARCASE - COUNTER ROTATION section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

5
0337061 - Screw
0337061
0337061 ← 0337061

SCREW, SCREEN

SCREW, SCREEN
$5.59
$5.59
Leaves in 3-5 days
Required: 2
10
0431693 - Housing Assembly
0431693
0431693 ← 0431693

HOUSING & BEARING ASSEMBLY.

HOUSING & BEARING ASSEMBLY.
$253.99
You save $108.26. $362.25
Ships Immediately
2 Items in stock
Required: 1
14
0334160 - Shifter Lever
0334160
0334160 ← 0334160

SHIFTER

SHIFTER
$78.85
You save $4.15. $83.00
Leaves in 3-5 days
Required: 1
15
0334143 - Shaft-Shifter
0334143
0334143 ← 0334143

SHAFT, SHIFTER

SHAFT, SHIFTER
$88.83
You save $4.67. $93.50
Leaves in 3-5 days
Required: 1
16
0319627 - Dowel Pin
0319627
0319627 ← 0319627

PIN, SHIFT LEVER

PIN, SHIFT LEVER
$9.98
You save 5%. $10.50
Leaves in 3-5 days
Required: 1
22
0333957 - Retaining Tab
0333957
0333957 ← 0333957

TAB, RETAINER

TAB, RETAINER
$29.95
You save $2.34. $32.29
Leaves in 3-5 days
Required: 2
25
0431926 - Bearing, Needle, Assembly
0431926
0431926 ← 0431926

NEEDLE BEARING ASSEMBLY.

NEEDLE BEARING ASSEMBLY.
$32.99
You save $3.01. $36.00
Ships Immediately
1 Items in stock
Required: 1
27
0334950 - Propeller Shaft Seal
0334950
0334950 ← 0334950

SEAL

SEAL
$16.95
You save 14%. $19.79
Ships Immediately
5+ Items in stock
Required: 2
32
0431703 - Gear Assembly-Reverse
0431703
0431703 ← 0431703

REVERSE GEAR & BEARING.

REVERSE GEAR & BEARING.
$528.00
You save $28.75. $556.75
Leaves in 3-5 days
Required: 1
38
0338717 - Shim .003
0338717
0338717 ← 0338717

SHIM, 0.003 IN.

SHIM, 0.003 IN.
$9.50
$9.50
Leaves in 3-5 days
Required: 0
38
0338718 - Shim .004
0338718
0338718 ← 0338718

SHIM, 0.004 IN.

SHIM, 0.004 IN.
$9.50
$9.50
Leaves in 3-5 days
Required: 0
38
0338719 - Shim
0338719
0338719 ← 0338719

SHIM, 0.005 IN.

SHIM, 0.005 IN.
$9.50
$9.50
Leaves in 3-5 days
Required: 0
42
0337796 - Thrust Flange
0337796
0337796 ← 0337796

THRUST FLANGE

THRUST FLANGE
$284.95
You save $15.80. $300.75
Leaves in 3-5 days
Required: 1
43
0338716 - Set Screw
0338716
0338716 ← 0338716

SET SCREW

SET SCREW
$4.99
You save 5%. $5.25
Leaves in 3-5 days
Required: 4
44
0333885 - Bearing Housing
0333885
0333885 ← 0333885

HOUSING, BEARING

HOUSING, BEARING
$329.95
You save $17.55. $347.50
Leaves in 3-5 days
Required: 1
57
0328743 - Washer
0328743
0328743 ← 0328743

WASHER, SCREW, TAB

WASHER, SCREW, TAB
$4.99
You save 5%. $5.25
Leaves in 3-5 days
Required: 2
66
0338552 - Plate Water Pump
0338552
0338552 ← 0338552

PLATE, IMPELLER HOUSING

PLATE, IMPELLER HOUSING
Notes: Chrome Plated
$89.95
You save $5.30. $95.25
Leaves in 3-5 days
Required: 1
77
0338893 - Impeller Housing Cover
0338893
0338893 ← 0338893

COVER, IMPELLER HOUSING

COVER, IMPELLER HOUSING
$8.99
You save 7%. $9.69
Ships Immediately
1 Items in stock
Required: 1
85
0354580 - Sleeve
0354580 ← 0338636
0354580

SLEEVE

SLEEVE
Notes: 25" Models
$8.99
You save 29%. $12.75
Ships Immediately
1 Items in stock
Required: 1
85
0354579 - Sleeve
0354579 ← 0338667
0354579

SLEEVE

SLEEVE
Notes: 30" Models
$13.06
You save 5%. $13.75
Leaves in 3-5 days
Required: 1
89
0338486 - Cup Impeller Housing
0338486
0338486 ← 0338486

CUP, IMPELLER

CUP, IMPELLER
Notes: Stainless Steel
$14.95
You save $1.24. $16.19
Leaves in 3-5 days
Required: 1
89
0338551 - Impeller Housing Cup
0338551
0338551 ← 0338551

CUP, IMPELLER HOUSING

CUP, IMPELLER HOUSING
Notes: Chrome Plated
$83.60
You save $4.40. $88.00
Leaves in 3-5 days
Required: 1
90
0306643 - Screw
0306643
0306643 ← 0306643

SCREW, COVER TO IMPELLER

SCREW, COVER TO IMPELLER
$2.99
You save 17%. $3.59
Ships Immediately
1 Items in stock
Required: 2
93
 -
← 0

PROPELLER

PROPELLER
Notes: Refer to OMC SysteMatched Parts & Accessories Catalog for Propeller Chart
Items in stock
Required: 0
94
0313926 - Sleeve
0313926
0313926 ← 0313926

SLEEVE, BUSHING

SLEEVE, BUSHING
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
