1994 Evinrude Outboards 185 - E185ESERK

CARBURETOR AND LINKAGE - 225 SUFFIX "K" MODELS section

Change Section

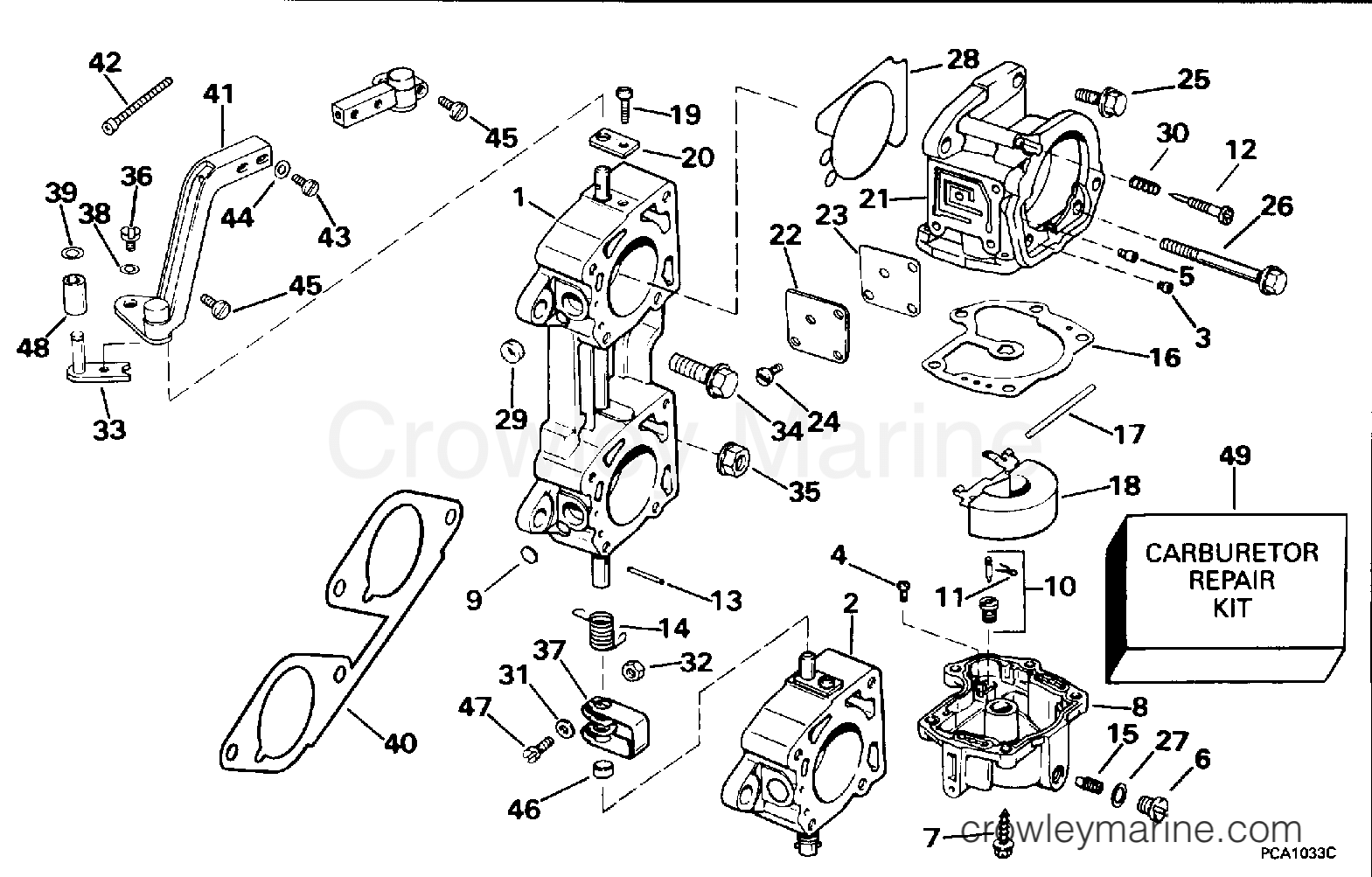

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1994 Evinrude Outboards 185 - E185ESERK CARBURETOR AND LINKAGE - 225 SUFFIX "K" MODELS section
Use two fingers to zoom
and move the diagram
1994 Evinrude Outboards 185 - E185ESERK - CARBURETOR AND LINKAGE - 225 SUFFIX "K" MODELS section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

1
0436139 - THROTTLE BODY, Upper
0436139
0436139 ← 0436139

THROTTLE BODY, UPPER

THROTTLE BODY, UPPER
$119.99
You save $52.59. $172.58
Ships Immediately
1 Items in stock
Required: 1
4
0326164 - Screw
0326164
0326164 ← 0326164

SCREW, HINGE PIN

SCREW, HINGE PIN
$7.31
You save 5%. $7.69
Leaves in 6-8 days
Required: 0
12
0341300 - Needle Valve
0341300
0341300 ← 0341300

SPRING, VALVE

SPRING, VALVE
$9.98
You save 5%. $10.50
Leaves in 6-8 days
Required: 0
18
0391508 - Float Assembly
0391508
0391508 ← 0391508

FLOAT ASSEMBLY.

FLOAT ASSEMBLY.
$14.95
You save $1.24. $16.19
Leaves in 3-5 days
Required: 0
20
0328765 - Clip
0328765
0328765 ← 0328765

CLIP

CLIP
$9.98
You save 5%. $10.50
Leaves in 3-5 days
Required: 1
21
0436014 - Carburetor Body
0436014
0436014 ← 0436014

CARBURETOR. BODY

CARBURETOR. BODY
$64.99
You save $30.92. $95.91
Ships Immediately
3 Items in stock
Required: 0
22
0335647 - Carb Body Assembly Cover
0335647
0335647 ← 0335647

COVER PLATE

COVER PLATE
$8.55
You save 5%. $9.00
Leaves in 6-8 days
Required: 1
23
0335648 - Carburetor Gasket
0335648
0335648 ← 0335648

GASKET, COVER PLATE

GASKET, COVER PLATE
$7.69
You save 5%. $8.09
Leaves in 3-5 days
Required: 1
30
0340001 - Spring
0340001
0340001 ← 0340001

SPRING, VALVE

SPRING, VALVE
$7.60
You save 5%. $8.00
Leaves in 6-8 days
Required: 0
36
0335739 - Screw
0335739
0335739 ← 0335739

SCREW, LEVER

SCREW, LEVER
$6.26
You save 5%. $6.59
Leaves in 6-8 days
Required: 2

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
