1994 Evinrude Outboards 150 - E150WTLERC

POWER TRIM/TILT ELECTRICAL section

Change Section

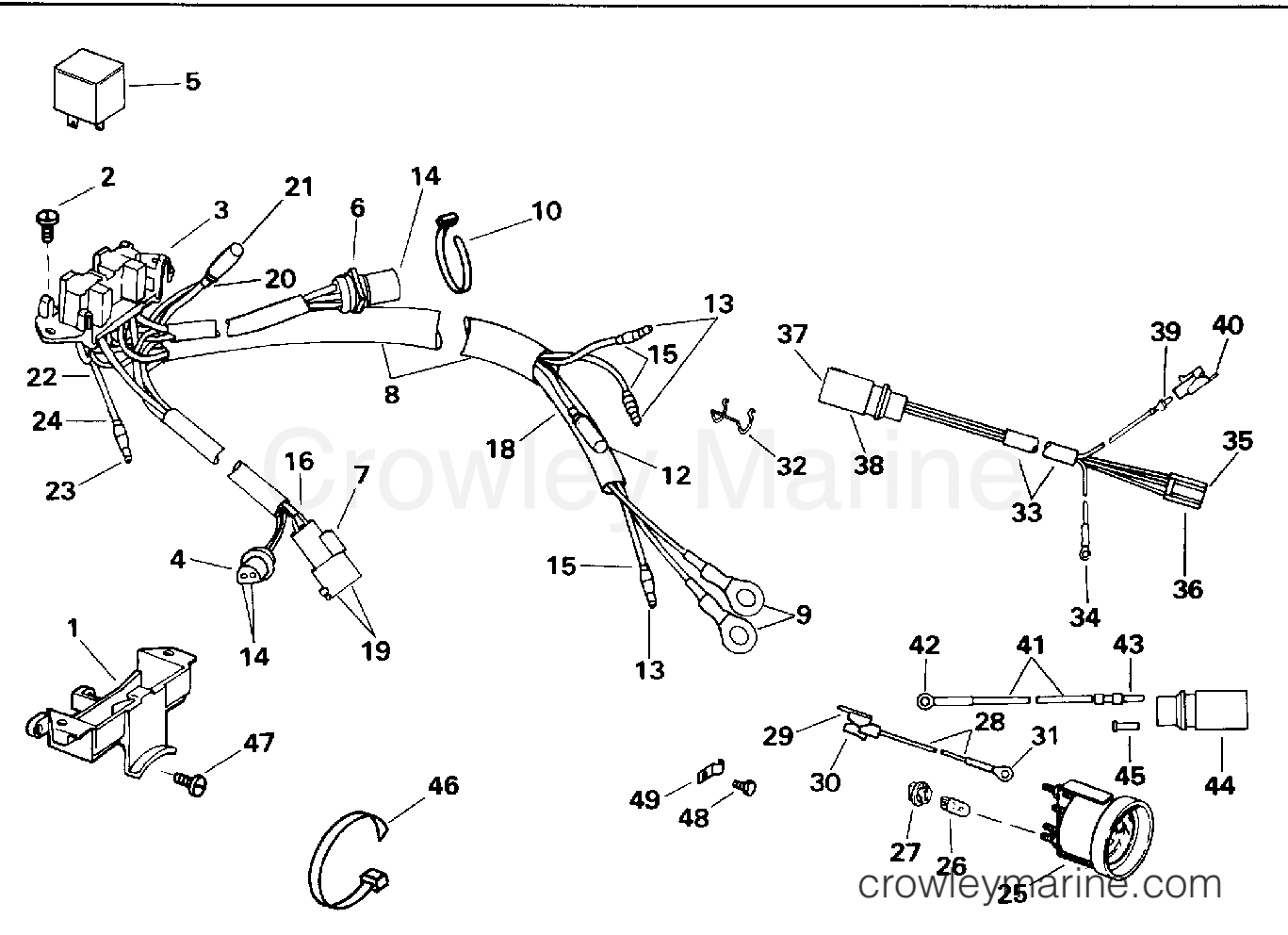

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1994 Evinrude Outboards 150 - E150WTLERC POWER TRIM/TILT ELECTRICAL section
Use two fingers to zoom
and move the diagram
1994 Evinrude Outboards 150 - E150WTLERC - POWER TRIM/TILT ELECTRICAL section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

4
0512745 - 2-socket Charge coil Connector
0512745
0512745 ← 0512745

CONNECTOR, 2 SKIT.

CONNECTOR, 2 SKIT.
$7.69
You save 5%. $8.09
Leaves in 3-5 days
Required: 1
9
0204053 - Ring Terminal
0204053
0204053 ← 0204053

TERMINAL, RING

TERMINAL, RING
$.69
$.69
Leaves in 6-8 days
Required: 2
12
0512876 - Socket Terminal
0512876
0512876 ← 0512876

TERMINAL, SOCKET

TERMINAL, SOCKET
$1.99
You save 26%. $2.69
Ships Immediately
4 Items in stock
Required: 1
13
0512947 - Bullet Terminal
0512947
0512947 ← 0512947

TERMINAL, BULLET

TERMINAL, BULLET
$.69
$.69
Ships Immediately
5+ Items in stock
Required: 3
15
0513185 - Bullet Term Sleeve
0513185
0513185 ← 0513185

SLEEVE

SLEEVE
$4.99
You save 13%. $5.75
Ships Immediately
1 Items in stock
Required: 3
18
0513186 - Socket Sleeve Blue
0513186
0513186 ← 0513186

SLEEVE

SLEEVE
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 1
19
0513666 - Terminal
0513666
0513666 ← 0513666

TERMINAL, BLADE

TERMINAL, BLADE
$2.56
You save 5%. $2.69
Leaves in 3-5 days
Required: 2
23
0512947 - Bullet Terminal
0512947
0512947 ← 0512947

TERMINAL, BULLET

TERMINAL, BULLET
$.69
$.69
Ships Immediately
5+ Items in stock
Required: 1
24
0513185 - Bullet Term Sleeve
0513185
0513185 ← 0513185

SLEEVE

SLEEVE
$4.99
You save 13%. $5.75
Ships Immediately
1 Items in stock
Required: 1
26
0125432 - Instrument Bulb
0125432
0125432 ← 0125432

BULB

BULB
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 1
27
0122553 - Bulb Socket
0122553
0122553 ← 0122553

SOCKET

SOCKET
$8.55
You save 5%. $9.00
Leaves in 3-5 days
Required: 1
28
0583255 - Trim Lead Assembly
0583255
0583255 ← 0583255

LEAD ASSEMBLY.

LEAD ASSEMBLY.
$5.49
$5.49
Leaves in 3-5 days
Required: 1
29
0310523 - Lead Terminal
0310523
0310523 ← 0310523

TERMINAL

TERMINAL
$5.69
$5.69
Leaves in 6-8 days
Required: 1
30
0310572 - 1 hole recept Connector
0310572
0310572 ← 0310572

HOUSING

HOUSING
$8.99
You save 5%. $9.50
Ships Immediately
4 Items in stock
Required: 1
31
0510780 - Ring Terminal
0510780
0510780 ← 0510780

RING TERMINAL

RING TERMINAL
$3.99
You save 5%. $4.19
Ships Immediately
4 Items in stock
Required: 1
34
0511829 - Terminal Ring
0511829
0511829 ← 0511829

RING TERMINAL

RING TERMINAL
$.69
$.69
Leaves in 3-5 days
Required: 1
35
0309433 - Terminal
0309433
0309433 ← 0309433

TERMINAL

TERMINAL
$9.50
$9.50
Leaves in 3-5 days
Required: 3
36
0309474 - Connector
0309474
0309474 ← 0309474

CONNECTOR

CONNECTOR
$9.50
$9.50
Leaves in 3-5 days
Required: 1
37
0511469 - Temperature Switch Pin
0511469
0511469 ← 0511469

PIN

PIN
$.99
You save 9%. $1.09
Ships Immediately
5+ Items in stock
Required: 4
38
0512754 - 5-Pin Connector
0512754
0512754 ← 0512754

CONNECTOR

CONNECTOR
$14.96
You save 5%. $15.75
Leaves in 3-5 days
Required: 1
39
0512904 - Terminal
0512904
0512904 ← 0512904

TERMINAL

TERMINAL
$.95
You save 5%. $1.00
Leaves in 6-8 days
Required: 1
40
0310572 - 1 hole recept Connector
0310572
0310572 ← 0310572

CONNECTOR

CONNECTOR
$8.99
You save 5%. $9.50
Ships Immediately
4 Items in stock
Required: 1
41
0582093 - Connector & Lead Assembly
0582093
0582093 ← 0582093

LEAD ASSEMBLY.

LEAD ASSEMBLY.
$18.53
You save 5%. $19.50
Leaves in 3-5 days
Required: 1
42
0511829 - Terminal Ring
0511829
0511829 ← 0511829

TERMINAL

TERMINAL
$.69
$.69
Leaves in 3-5 days
Required: 1
43
0511469 - Temperature Switch Pin
0511469
0511469 ← 0511469

PIN

PIN
$.99
You save 9%. $1.09
Ships Immediately
5+ Items in stock
Required: 1
45
0511496 - Plug-Connector
0511496
0511496 ← 0511496

PLUG CONNECTOR

PLUG CONNECTOR
$5.99
You save 25%. $8.00
Ships Immediately
1 Items in stock
Required: 2
48
0310981 - Screw
0310981
0310981 ← 0310981

SCREW, CLAMP

SCREW, CLAMP
$6.65
You save 5%. $7.00
Leaves in 6-8 days
Required: 1
