1994 Evinrude Outboards 150 - E150WTLERC

CYLINDER & CRANKCASE section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

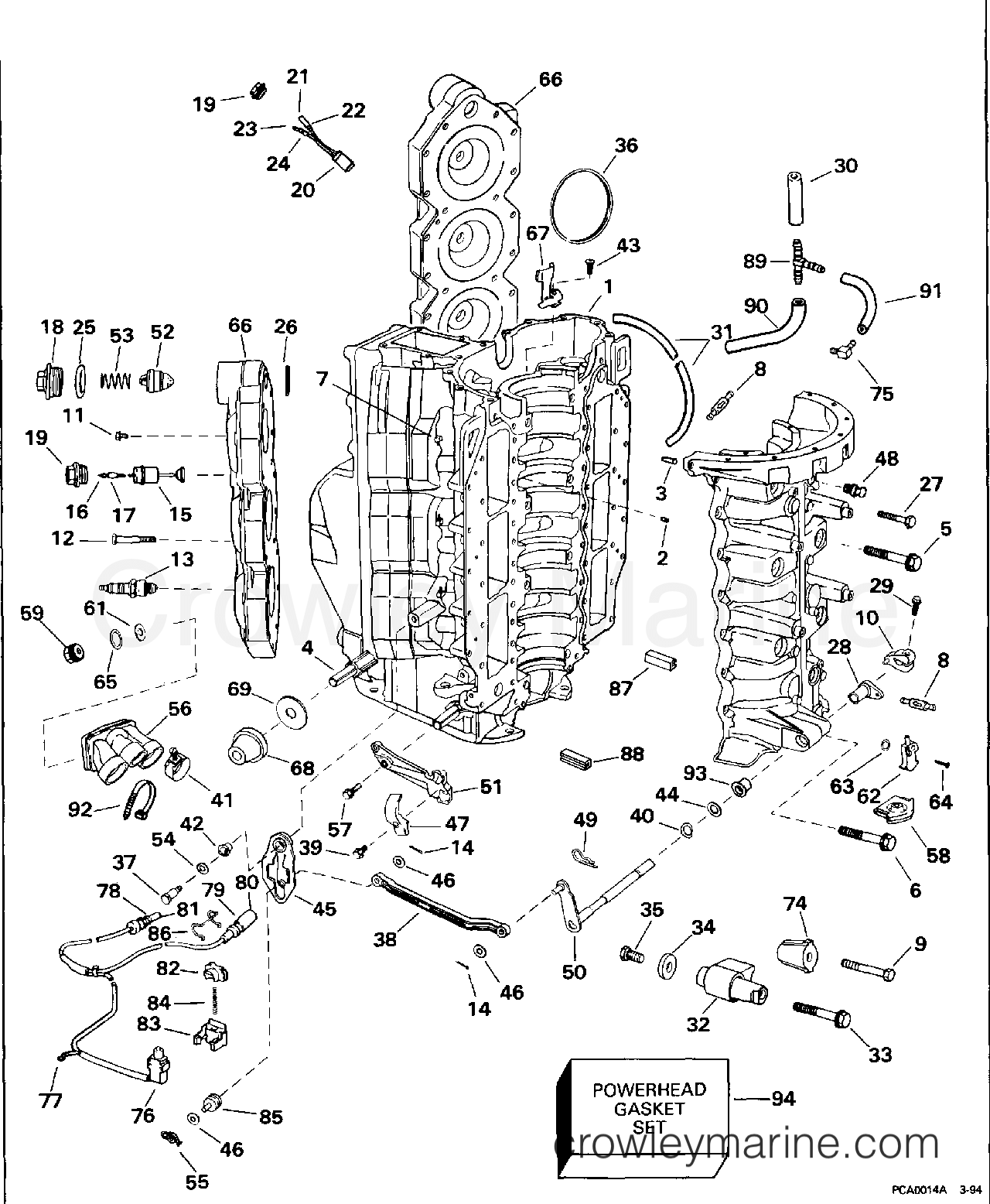

1994 Evinrude Outboards 150 - E150WTLERC CYLINDER & CRANKCASE section
Use two fingers to zoom
and move the diagram
1994 Evinrude Outboards 150 - E150WTLERC - CYLINDER & CRANKCASE section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

4
0336630 - Pin
0336630
0336630 ← 0336630

PIN, ROLL

PIN, ROLL
$23.51
You save $1.24. $24.75
Leaves in 3-5 days
Required: 4
7
0335369 - Nipple
0335369
0335369 ← 0335369

NIPPLE, DRAIN

NIPPLE, DRAIN
$11.99
You save 6%. $12.75
Ships Immediately
4 Items in stock
Required: 13
21
0512876 - Socket Terminal
0512876
0512876 ← 0512876

TERMINAL, SOCKET

TERMINAL, SOCKET
$1.99
You save 26%. $2.69
Ships Immediately
1 Items in stock
Required: 1
24
0513186 - Socket Sleeve Blue
0513186
0513186 ← 0513186

SLEEVE

SLEEVE
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 1
29
0328725 - Screw
0328725
0328725 ← 0328725

SCREW, SHIFT ROD LEVER

SCREW, SHIFT ROD LEVER
$5.95
You save 8%. $6.50
Ships Immediately
5+ Items in stock
Required: 1
31
 -
← 0

HOSE, DRAIN SYSTEM

HOSE, DRAIN SYSTEM
Notes: Cut to Length from 25 Ft. (7,6m) Roll, 335802
Items in stock
Required: 0
35
0312455 - Screw
0312455
0312455 ← 0312455

SCREW, WASHER, MOUNT

SCREW, WASHER, MOUNT
$6.99
You save 33%. $10.50
Ships Immediately
4 Items in stock
Required: 2
39
0328725 - Screw
0328725
0328725 ← 0328725

SCREW, COVER, TRUNNION

SCREW, COVER, TRUNNION
$5.95
You save 8%. $6.50
Ships Immediately
5+ Items in stock
Required: 1
48
0303492 - Straight Nipple
0303492
0303492 ← 0303492

NIPPLE, PULSE

NIPPLE, PULSE
$34.95
You save $2.05. $37.00
Leaves in 3-5 days
Required: 1
49
0330941 - Pin-Retainer
0330941
0330941 ← 0330941

PIN, SHIFT ARM

PIN, SHIFT ARM
$7.99
You save 6%. $8.50
Ships Immediately
4 Items in stock
Required: 1
58
0335316 - Shift Rod Seal
0335316
0335316 ← 0335316

SEAL, SHIFT ROD

SEAL, SHIFT ROD
$12.63
You save 5%. $13.29
Leaves in 6-8 days
Required: 1
62
0340767 - Lower Drain Nipple
0340767
0340767 ← 0340767

NIPPLE, LOWER DRAIN

NIPPLE, LOWER DRAIN
$11.68
You save 5%. $12.29
Leaves in 6-8 days
Required: 1
67
0337478 - Guide
0337478
0337478 ← 0337478

GUIDE, STATOR WIRES

GUIDE, STATOR WIRES
$9.95
You save 11%. $11.19
Leaves in 6-8 days
Required: 1
75
0335369 - Nipple
0335369
0335369 ← 0335369

NIPPLE, VENT, UPPER

NIPPLE, VENT, UPPER
$11.99
You save 6%. $12.75
Ships Immediately
4 Items in stock
Required: 1
76
0584666 - Switch&Cable Assembly
0584666
0584666 ← 0584666

SWITCH & CABLE

SWITCH & CABLE
$119.95
You save $7.30. $127.25
Leaves in 3-5 days
Required: 1
77
0510818 - Terminal
0510818
0510818 ← 0510818

TERMINAL

TERMINAL
$2.56
You save 5%. $2.69
Leaves in 3-5 days
Required: 1
78
0513356 - 1 Socket Connector, Water Temperature
0513356
0513356 ← 0513356

CONNECTOR, SOCKET

CONNECTOR, SOCKET
$11.58
You save 5%. $12.19
Leaves in 3-5 days
Required: 1
79
0513357 - 1 pin recept Temperature Switch Connector
0513357
0513357 ← 0513357

CONNECTOR, PIN

CONNECTOR, PIN
$13.06
You save 5%. $13.75
Leaves in 3-5 days
Required: 1
83
0513134 - Bracket
0513134
0513134 ← 0513134

BRACKET, SNAP

BRACKET, SNAP
$9.99
You save 15%. $11.75
Ships Immediately
2 Items in stock
Required: 1
84
0333749 - Spring
0333749
0333749 ← 0333749

SPRING, SHIFT ASSIST

SPRING, SHIFT ASSIST
$9.98
You save 5%. $10.50
Leaves in 3-5 days
Required: 1
85
0338990 - Shift Assist Pin
0338990
0338990 ← 0338990

PIN, SHIFT ASSIST

PIN, SHIFT ASSIST
$54.95
You save $2.34. $57.29
Leaves in 6-8 days
Required: 1
86
0512741 - Retainer
0512741
0512741 ← 0512741

RETAINER, CONNECTOR

RETAINER, CONNECTOR
$108.54
You save $5.71. $114.25
Leaves in 3-5 days
Required: 1
89
0338126 - Hoses Tee
0338126
0338126 ← 0338126

TEE, HOSES, VENT

TEE, HOSES, VENT
$14.95
You save $1.55. $16.50
Leaves in 6-8 days
Required: 1
90
 -
← 0

HOSE, TEE TO AIR SILENCER 19 IN.

HOSE, TEE TO AIR SILENCER 19 IN.
Notes: Cut to Length from 25 ft. (7,6m) Roll, 336317
Items in stock
Required: 1
94
0437155 - Powerhead Gasket Set
0437155
0437155 ← 0437155

POWERHEAD GASKET SET

POWERHEAD GASKET SET
$224.95
You save $12.74. $237.69
Leaves in 3-5 days
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
