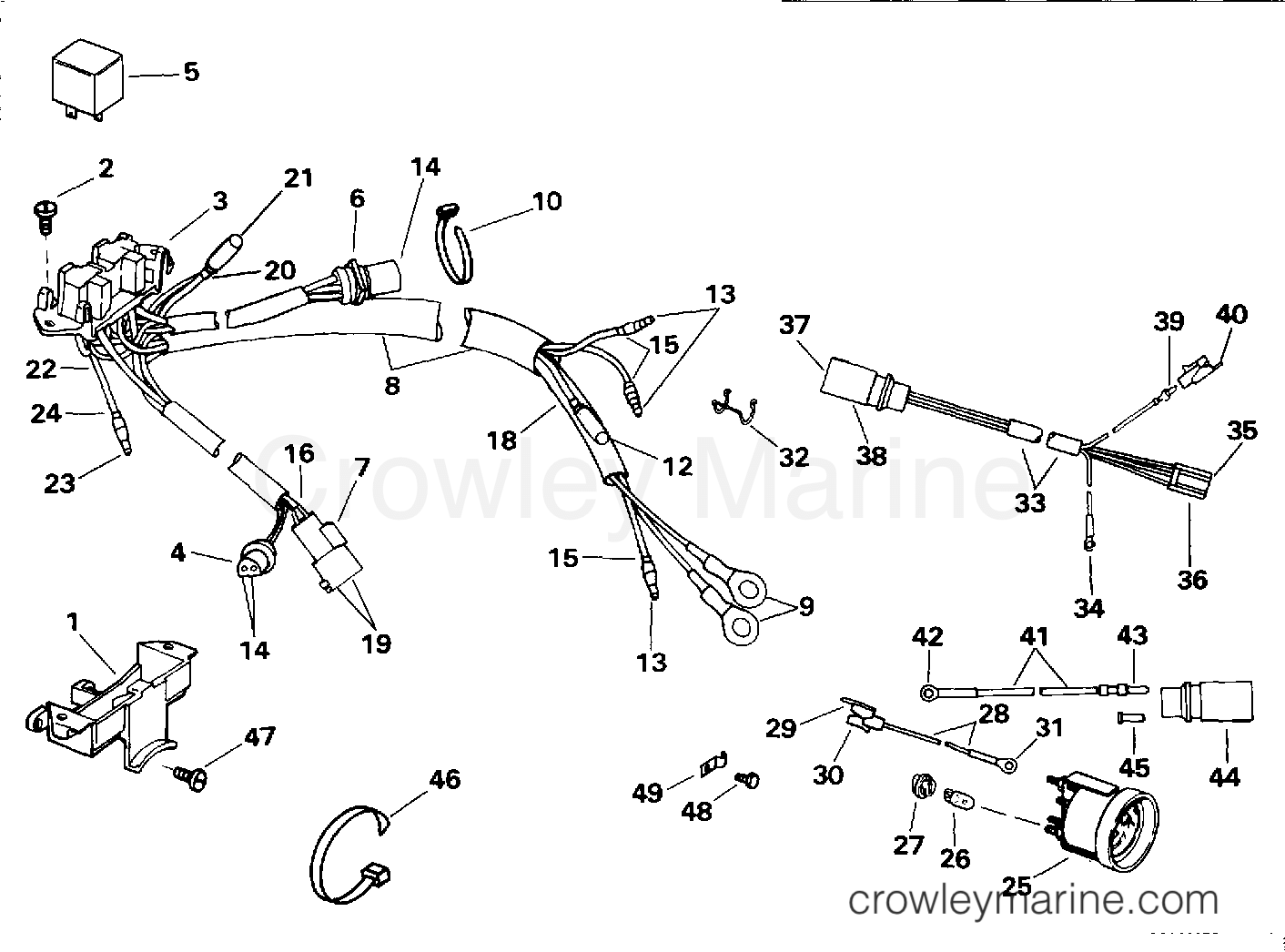

1994 Quiet Rider 150 - 150SLERC POWER TRIM/TILT ELECTRICAL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1994 Quiet Rider 150 - 150SLERC - POWER TRIM/TILT ELECTRICAL 1994 Quiet Rider 150 - 150SLERC - POWER TRIM/TILT ELECTRICAL
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

18
Socket Sleeve Blue
0513186 ← 0513186

SLEEVE

$7.40
You save 5%. $7.79
Cross Ship
19
Terminal
0513666 ← 0513666

TERMINAL, BLADE

$2.84
You save 5%. $2.99
Ships immediately
4 in stock
26
Instrument Bulb
0125432 ← 0125432

BULB

$7.40
You save 5%. $7.79
Cross Ship
27
Bulb Socket
0122553 ← 0122553

SOCKET

$9.97
You save 5%. $10.49
Cross Ship
29
Lead Terminal
0310523 ← 0310523

TERMINAL

$6.01
You save 5%. $6.33
Cross Ship
30
1 hole recept Connector
0310572 ← 0310572

HOUSING

$9.95
You save 13%. $11.49
Cross Ship
31
Ring Terminal
0510780 ← 0510780

RING TERMINAL

$4.99
$5.00
Ships immediately
1 in stock
35
Terminal
0309433 ← 0309433

TERMINAL

$9.95
You save 13%. $11.49
Cross Ship
36
Connector
0309474 ← 0309474

CONNECTOR

$9.95
You save 13%. $11.49
Cross Ship
39
Terminal
0512904 ← 0512904

TERMINAL

$1.89
You save 5%. $1.99
Cross Ship
40
1 hole recept Connector
0310572 ← 0310572

CONNECTOR

$9.95
You save 13%. $11.49
Cross Ship
41
Connector & Lead Assembly
0582093 ← 0582093

LEAD ASSEMBLY.

$21.84
You save $1.15. $22.99
Cross Ship
42
Terminal Ring
0511829 ← 0511829

TERMINAL

$0.77
Cross Ship
45
Plug-Connector
0511496 ← 0511496

PLUG CONNECTOR

$6.99
You save 21%. $8.90
Ships immediately
5+ in stock
48
Screw
0310981 ← 0310981

SCREW, CLAMP

$3.79
You save 5%. $3.99
Cross Ship

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
