1994 Evinrude Outboards 45 - E45RCERE

REWIND STARTER section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1994 Evinrude Outboards 45 - E45RCERE REWIND STARTER section
Use two fingers to zoom
and move the diagram

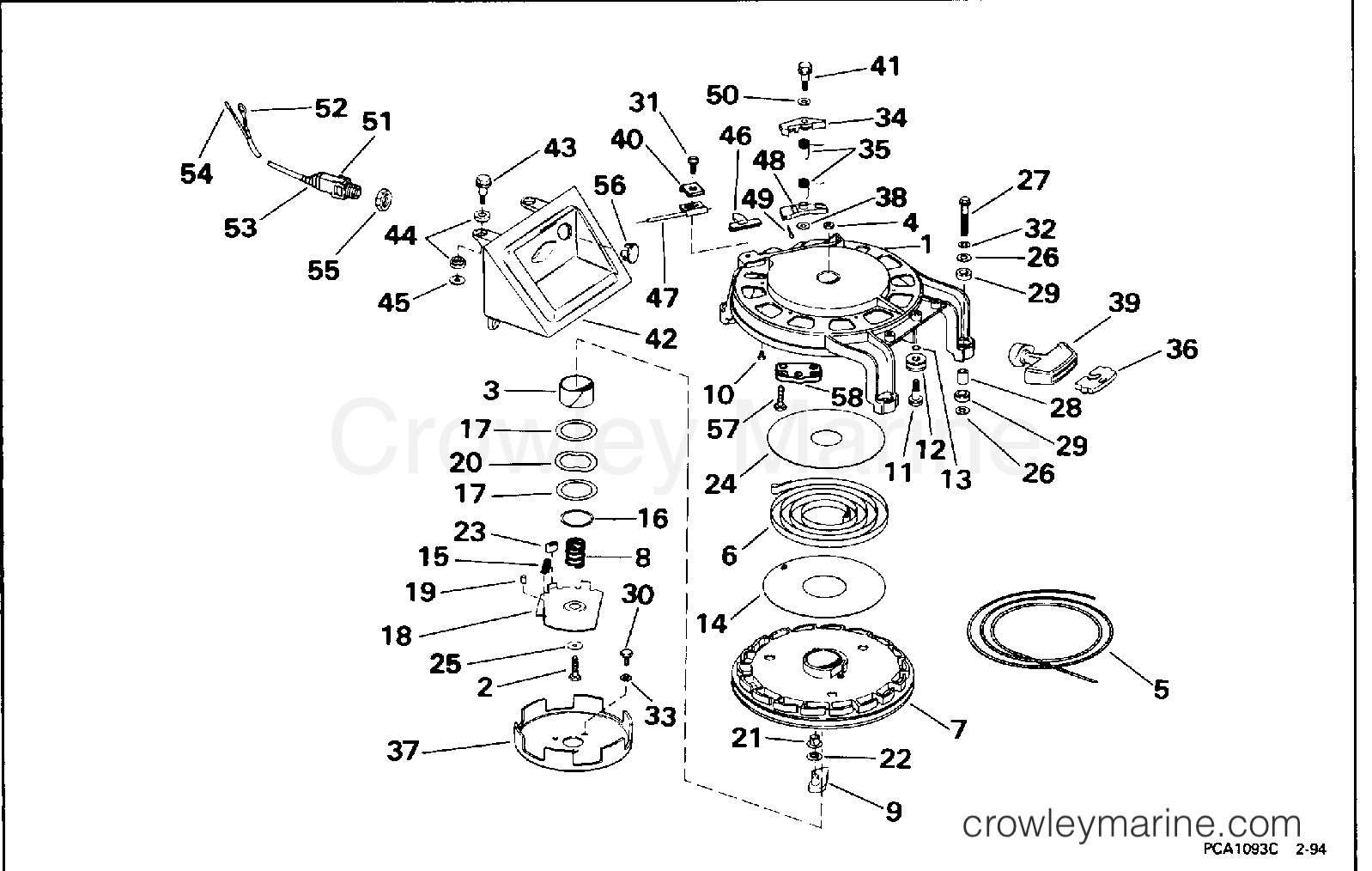

1994 Evinrude Outboards 45 - E45RCERE - REWIND STARTER section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

1
0332910 - Starter Housing
0332910
0332910 ← 0332910

HOUSING, STARTER

HOUSING, STARTER
$169.95
You save $10.55. $180.50
Leaves in 3-5 days
Required: 1
5
 -
← 0

ROPE

ROPE
Notes: Cut from 100 ft. (30,5m) Roll, Part No. 316705, Cutting Length 96 1/2 in. (2451 mm)
Items in stock
Required: 0
6
0325431 - Starter Spring
0325431
0325431 ← 0325431

SPRING, STARTER

SPRING, STARTER
$47.02
You save $2.47. $49.49
Leaves in 3-5 days
Required: 1
9
0398228 - Starter Pawl
0398228
0398228 ← 0398228

PAWL, STARTER

PAWL, STARTER
$38.95
You save $2.05. $41.00
Leaves in 3-5 days
Required: 1
15
0326132 - Spring
0326132
0326132 ← 0326132

SPRING, PLATE RETURN

SPRING, PLATE RETURN
$22.09
You save $1.16. $23.25
Leaves in 3-5 days
Required: 1
16
0326119 - Retaining Ring
0326119
0326119 ← 0326119

RETAINING RING

RETAINING RING
$19.95
You save $1.05. $21.00
Leaves in 3-5 days
Required: 1
23
0331929 - Bumper
0331929
0331929 ← 0331929

BUMPER, PAWL PLATE

BUMPER, PAWL PLATE
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 1
27
0326248 - Screw
0326248
0326248 ← 0326248

SCREW, HOUSING

SCREW, HOUSING
$14.95
You save $1.34. $16.29
Leaves in 6-8 days
Required: 3
29
0326130 - Grommet
0326130
0326130 ← 0326130

GROMMET, SCREW

GROMMET, SCREW
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 6
30
0306861 - Fuel filter to Bracket Bolt
0306861
0306861 ← 0306861

SCREW, RATCHET

SCREW, RATCHET
$4.50
$4.50
Leaves in 6-8 days
Required: 3
34
0330276 - Lockout Lever
0330276
0330276 ← 0330276

LOCKOUT LEVER, SLIDE

LOCKOUT LEVER, SLIDE
Notes: Starter Interlock Models Only
$12.99
You save 31%. $18.89
Ships Immediately
2 Items in stock
Required: 1
35
0326128 - Spring
0326128
0326128 ← 0326128

SPRING, LOCKOUT LEVER

SPRING, LOCKOUT LEVER
Notes: Starter Interlock Models Only
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 2
36
0304325 - Anchor
0304325
0304325 ← 0304325

ANCHOR, STARTER HANDLE

ANCHOR, STARTER HANDLE
$22.99
You save 10%. $25.50
Ships Immediately
3 Items in stock
Required: 1
37
0329211 - Ratchet-Flywheel
0329211
0329211 ← 0329211

RATCHET, FLYWHEEL DOME

RATCHET, FLYWHEEL DOME
$153.66
You save $8.09. $161.75
Leaves in 3-5 days
Required: 1
39
0326249 - Starter Handle
0326249
0326249 ← 0326249

HANDLE, STARTER

HANDLE, STARTER
$22.79
You save $1.20. $23.99
Leaves in 6-8 days
Required: 1
41
0319415 - Screw
0319415
0319415 ← 0319415

SCREW, LOCKOUT LEVER

SCREW, LOCKOUT LEVER
Notes: Starter Interlock Models Only
$47.30
You save $2.49. $49.79
Leaves in 6-8 days
Required: 1
43
0327768 - Screw
0327768
0327768 ← 0327768

SCREW, HANDLE BRACKET

SCREW, HANDLE BRACKET
$17.10
You save 5%. $18.00
Leaves in 3-5 days
Required: 4
46
0330338 - Slide
0330338
0330338 ← 0330338

SLIDE, STARTER LOCKOUT

SLIDE, STARTER LOCKOUT
Notes: Starter Interlock Models Only
$8.99
You save 32%. $13.29
Ships Immediately
1 Items in stock
Required: 1
47
0436201 - Lockout Cable Kit
0436201
0436201 ← 0436201

CABLE ASSEMBLY., LOCKOUT

CABLE ASSEMBLY., LOCKOUT
Notes: Starter Interlock Models Only
$23.99
You save $10.90. $34.89
Ships Immediately
1 Items in stock
Required: 1
48
0437040 - Lockout Lever Assembly
0437040
0437040 ← 0437040

LOCKOUT LEVER ASSEMBLY.

LOCKOUT LEVER ASSEMBLY.
Notes: Starter Interlock Models Only
$19.95
$20.00
Leaves in 3-5 days
Required: 1
49
0331515 - Grommet
0331515
0331515 ← 0331515

GROMMET

GROMMET
Notes: Starter Interlock Models Only
$8.26
You save 5%. $8.69
Leaves in 6-8 days
Required: 1
52
0510818 - Terminal
0510818
0510818 ← 0510818

TERMINAL RING

TERMINAL RING
$2.56
You save 5%. $2.69
Leaves in 3-5 days
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
