1994 Evinrude Outboards 45 - E45RCERE

CYLINDER & CRANKCASE section

Change Section

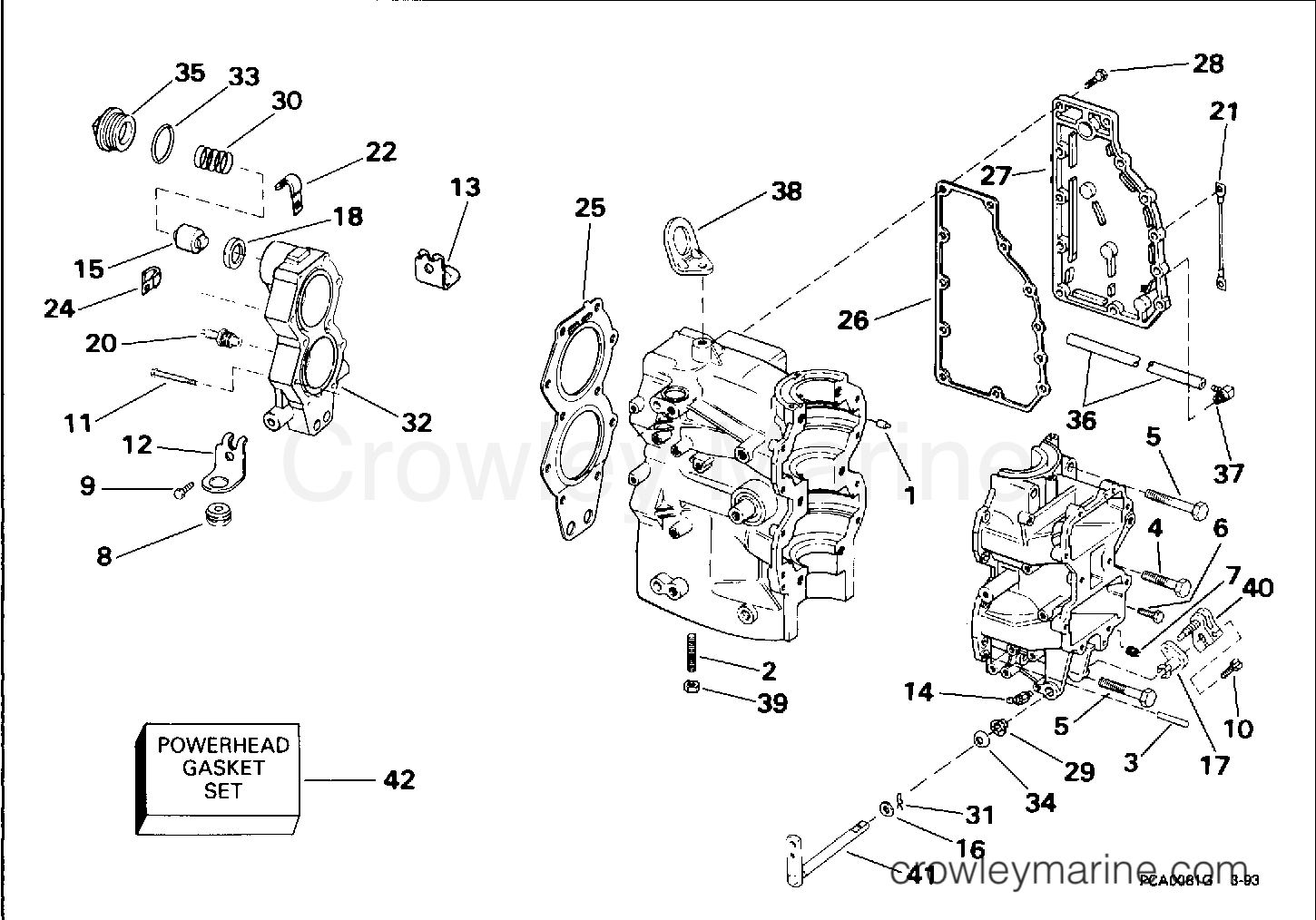

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1994 Evinrude Outboards 45 - E45RCERE CYLINDER & CRANKCASE section
Use two fingers to zoom
and move the diagram
1994 Evinrude Outboards 45 - E45RCERE - CYLINDER & CRANKCASE section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

7
0321164 - Adapter Plug, port & Starboard
0321164
0321164 ← 0321164

PLUG, CRANKCASE

PLUG, CRANKCASE
$12.99
You save 12%. $14.75
Ships Immediately
1 Items in stock
Required: 1
9
0306539 - Capscrew
0306539
0306539 ← 0306539

SCREW, BRACKET

SCREW, BRACKET
$4.50
$4.50
Leaves in 6-8 days
Required: 2
14
0319253 - Lub Fitting
0319253
0319253 ← 0319253

FITTING, CRANKCASE

FITTING, CRANKCASE
$19.95
You save $1.05. $21.00
Leaves in 3-5 days
Required: 1
24
0310441 - J-Clamp
0310441
0310441 ← 0310441

CLAMP, LOCKOUT CABLE

CLAMP, LOCKOUT CABLE
$3.56
You save 5%. $3.75
Leaves in 3-5 days
Required: 1
31
0330941 - Pin-Retainer
0330941
0330941 ← 0330941

PIN RETAINER, SHIFT LEVER

PIN RETAINER, SHIFT LEVER
$7.99
You save 6%. $8.50
Ships Immediately
4 Items in stock
Required: 1
32
0336428 - Cylinder Head
0336428
0336428 ← 0336428

CYLINDER HEAD

CYLINDER HEAD
$118.75
You save $6.25. $125.00
Leaves in 6-8 days
Required: 1
38
0326023 - Lift Bracket
0326023
0326023 ← 0326023

LIFT RING

LIFT RING
$33.25
You save $1.75. $35.00
Leaves in 6-8 days
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
