1993 Johnson Outboards 115 - TJ115TLETS

STERN BRACKET - MANUAL TILT MODELS section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

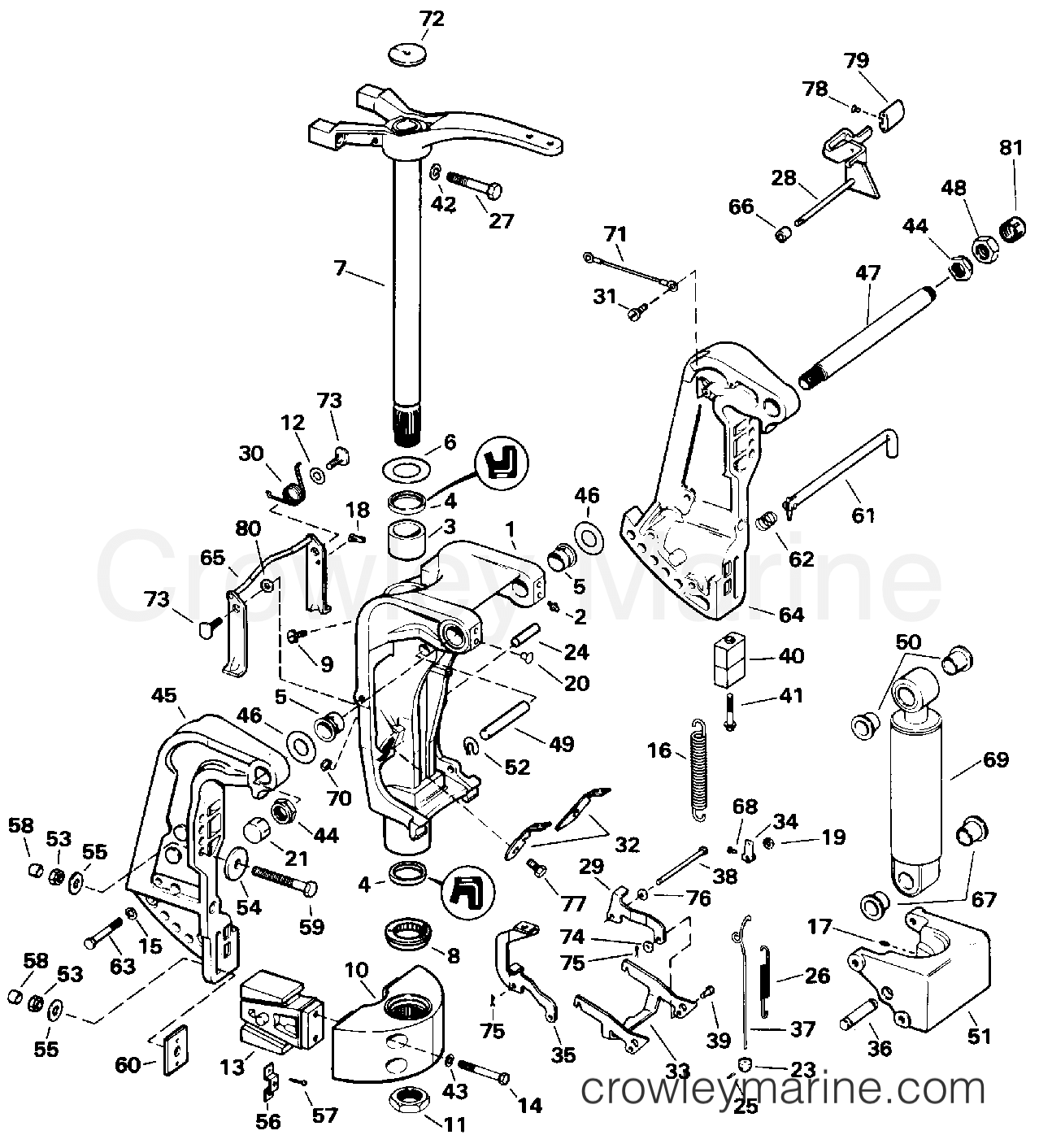

1993 Johnson Outboards 115 - TJ115TLETS STERN BRACKET - MANUAL TILT MODELS section
Use two fingers to zoom
and move the diagram
1993 Johnson Outboards 115 - TJ115TLETS - STERN BRACKET - MANUAL TILT MODELS section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

1
0432708 - Swivel Bracket
0432708
0432708 ← 0432708

SWIVEL BRACKET

SWIVEL BRACKET
$189.95
You save $10.05. $200.00
Leaves in 6-8 days
Required: 1
14
0328078 - Mount Bracket Screw
0328078
0328078 ← 0328078

SCREW, MOUNT

SCREW, MOUNT
$19.95
$20.00
Leaves in 3-5 days
Required: 4
16
0321920 - Spring
0321920
0321920 ← 0321920

SPRING, REVERSE LOCK

SPRING, REVERSE LOCK
$13.99
You save 32%. $20.50
Ships Immediately
5+ Items in stock
Required: 2
20
0334076 - Plug
0334076
0334076 ← 0334076

PLUG, SWIVEL BRACKET

PLUG, SWIVEL BRACKET
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 4
28
0397730 - Lever & Shaft Assembly
0397730
0397730 ← 0397730

LEVER AND SHAFT

LEVER AND SHAFT
$107.35
You save $5.65. $113.00
Leaves in 3-5 days
Required: 1
30
0332698 - Trail Lock Spring
0332698
0332698 ← 0332698

SPRING, TRAIL LOCK

SPRING, TRAIL LOCK
$.00
You save 100%. $.00
Ships Immediately
5+ Items in stock
Required: 1
32
0334345 - Retainer
0334345
0334345 ← 0334345

RETAINER, LOCK SPRING

RETAINER, LOCK SPRING
$3.99
You save 20%. $5.00
Ships Immediately
5+ Items in stock
Required: 2
33
0321750 - Locking Lever
0321750
0321750 ← 0321750

LOCKING LEVER, REVERSE LOCK

LOCKING LEVER, REVERSE LOCK
$109.99
You save $46.76. $156.75
Ships Immediately
5+ Items in stock
Required: 1
41
0333350 - Screw
0333350
0333350 ← 0333350

SCREW

SCREW
$8.55
You save 5%. $9.00
Leaves in 3-5 days
Required: 1
51
0329519 - Spacer
0329519
0329519 ← 0329519

SPACER, STERN BRACKET

SPACER, STERN BRACKET
$134.95
You save $7.04. $141.99
Leaves in 6-8 days
Required: 1
52
0321054 - Spring Clip 2Pk
0321054
0321054 ← 0321054

SPRING CLIP

SPRING CLIP
$22.99
You save $2.26. $25.25
Ships Immediately
5+ Items in stock
Required: 2
57
0319886 - Screw
0319886
0319886 ← 0319886

SCREW

SCREW
$2.99
You save 20%. $3.75
Ships Immediately
4 Items in stock
Required: 4
68
0319108 - Screw
0319108
0319108 ← 0319108

SCREW, BELLCRANK

SCREW, BELLCRANK
$5.99
You save 30%. $8.50
Ships Immediately
1 Items in stock
Required: 1
78
0318238 - Knob tilt lock Screw
0318238
0318238 ← 0318238

SCREW, KNOB

SCREW, KNOB
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 1

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
