1993 Johnson Outboards 115 - TJ115TLETS

STERN BRACKET - POWER TRIM/TILT section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

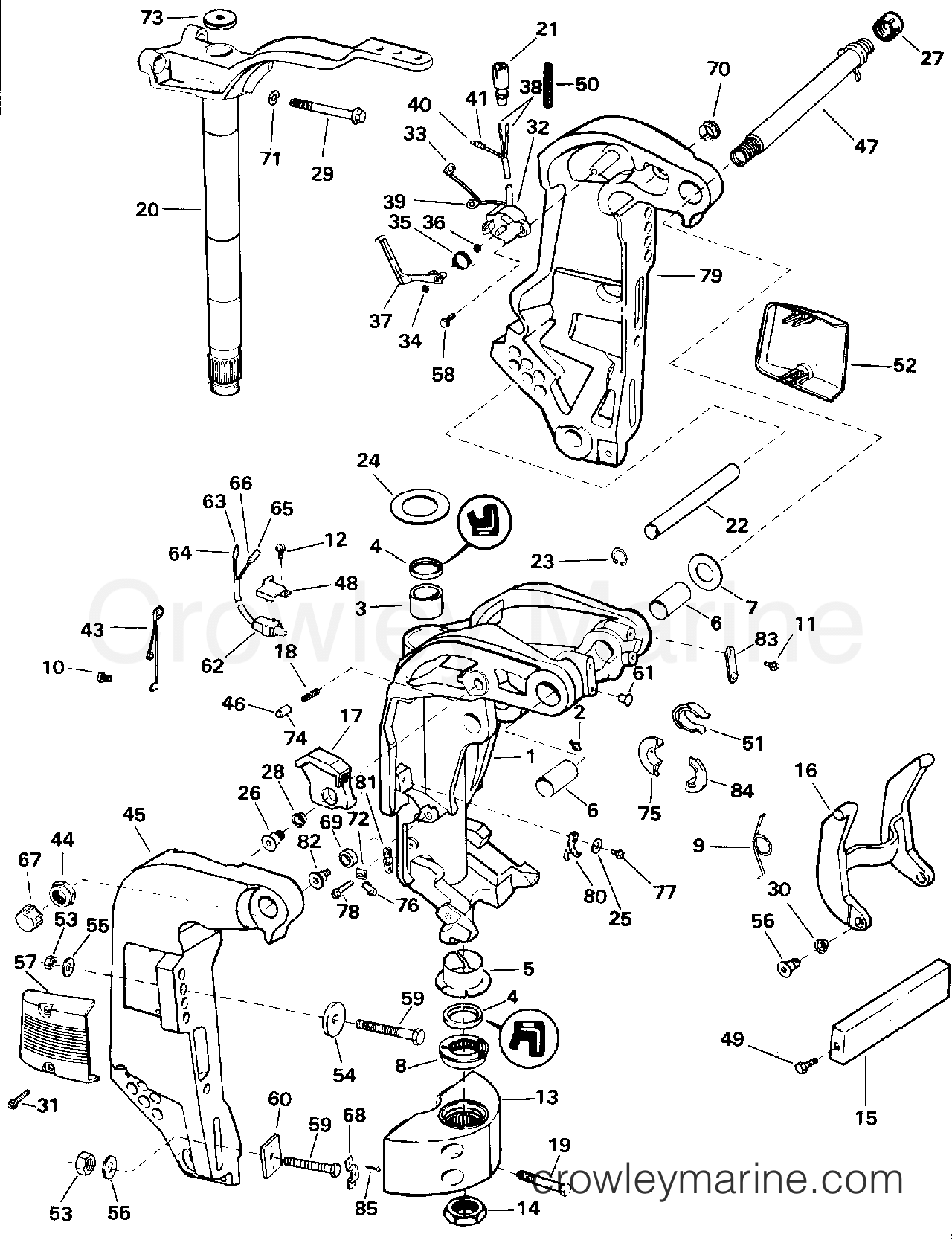

1993 Johnson Outboards 115 - TJ115TLETS STERN BRACKET - POWER TRIM/TILT section
Use two fingers to zoom
and move the diagram
1993 Johnson Outboards 115 - TJ115TLETS - STERN BRACKET - POWER TRIM/TILT section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

61
0334076 - Plug
0334076
0334076 ← 0334076

PLUG, SWIVEL BRACKET

PLUG, SWIVEL BRACKET
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 2
63
0512947 - Bullet Terminal
0512947
0512947 ← 0512947

TERMINAL, BULLET

TERMINAL, BULLET
$.69
$.69
Ships Immediately
5+ Items in stock
Required: 1
64
0513185 - Bullet Term Sleeve
0513185
0513185 ← 0513185

SLEEVE

SLEEVE
$4.99
You save 13%. $5.75
Ships Immediately
1 Items in stock
Required: 1
65
0512876 - Socket Terminal
0512876
0512876 ← 0512876

TERMINAL, BULLET

TERMINAL, BULLET
$1.99
You save 26%. $2.69
Ships Immediately
1 Items in stock
Required: 1
66
0513186 - Socket Sleeve Blue
0513186
0513186 ← 0513186

SLEEVE

SLEEVE
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 1
72
0336853 - Clip
0336853
0336853 ← 0336853

CLIP, SUPPORT

CLIP, SUPPORT
$14.75
$14.75
Leaves in 3-5 days
Required: 2
81
0336467 - Retainer
0336467
0336467 ← 0336467

RETAINER, SUPPORT

RETAINER, SUPPORT
$9.98
You save 5%. $10.50
Leaves in 3-5 days
Required: 1
83
0513787 - Retainer
0513787
0513787 ← 0513787

RETAINER, LIMIT SWITCH

RETAINER, LIMIT SWITCH
$4.99
You save 23%. $6.50
Ships Immediately
1 Items in stock
Required: 1
1
0434691 - Bracket Assembly
0434691 ← 0435005
0434691

SWIVEL BRACKET

SWIVEL BRACKET
Notes: 20 in. (508mm) Transom Models
$647.00
You save $35.00. $682.00
Leaves in 3-5 days
Required: 1
1
0434724 - Swivel Bracket 25"
0434724 ← 0435006
0434724

SWIVEL BRACKET

SWIVEL BRACKET
Notes: 25 in. (635mm) Transom Models
$701.00
You save $37.00. $738.00
Leaves in 3-5 days
Required: 1
17
0335485 - Trail lock Lever
0335485
0335485 ← 0335485

LEVER, TILT LOCK

LEVER, TILT LOCK
$33.25
You save $1.75. $35.00
Leaves in 3-5 days
Required: 1
32
0584176 - Sending Unit Assembly
0584176
0584176 ← 0584176

SENDING UNIT ASSEMBLY.

SENDING UNIT ASSEMBLY.
$133.95
You save $7.05. $141.00
Leaves in 3-5 days
Required: 1
33
0513871 - Terminal
0513871
0513871 ← 0513871

TERMINAL, RING

TERMINAL, RING
$.69
$.69
Leaves in 3-5 days
Required: 1
34
0511527 - Arm Retainer
0511527
0511527 ← 0511527

RETAINER

RETAINER
$7.99
You save 6%. $8.50
Ships Immediately
2 Items in stock
Required: 1
36
0320689 - Rotary switch Assembly Nut
0320689
0320689 ← 0320689

NUT

NUT
$8.08
You save 5%. $8.50
Leaves in 3-5 days
Required: 1
37
0335708 - Arm
0335708
0335708 ← 0335708

ARM

ARM
$.00
You save 100%. $.00
Ships Immediately
1 Items in stock
Required: 1
40
0512947 - Bullet Terminal
0512947
0512947 ← 0512947

TERMINAL, BULLET

TERMINAL, BULLET
$.69
$.69
Ships Immediately
5+ Items in stock
Required: 1
41
0513185 - Bullet Term Sleeve
0513185
0513185 ← 0513185

SLEEVE

SLEEVE
$4.99
You save 13%. $5.75
Ships Immediately
1 Items in stock
Required: 1
49
0324816 - Screw
0324816
0324816 ← 0324816

SCREW, ANODE

SCREW, ANODE
$12.99
You save 6%. $13.75
Ships Immediately
5+ Items in stock
Required: 2
52
0335475 - Port Cover
0335475
0335475 ← 0335475

COVER, PORT

COVER, PORT
$13.06
You save 5%. $13.75
Leaves in 3-5 days
Required: 1
57
0335474 - Stern Bracket Cover
0335474
0335474 ← 0335474

COVER, STARBOARD

COVER, STARBOARD
$13.06
You save 5%. $13.75
Leaves in 3-5 days
Required: 1
