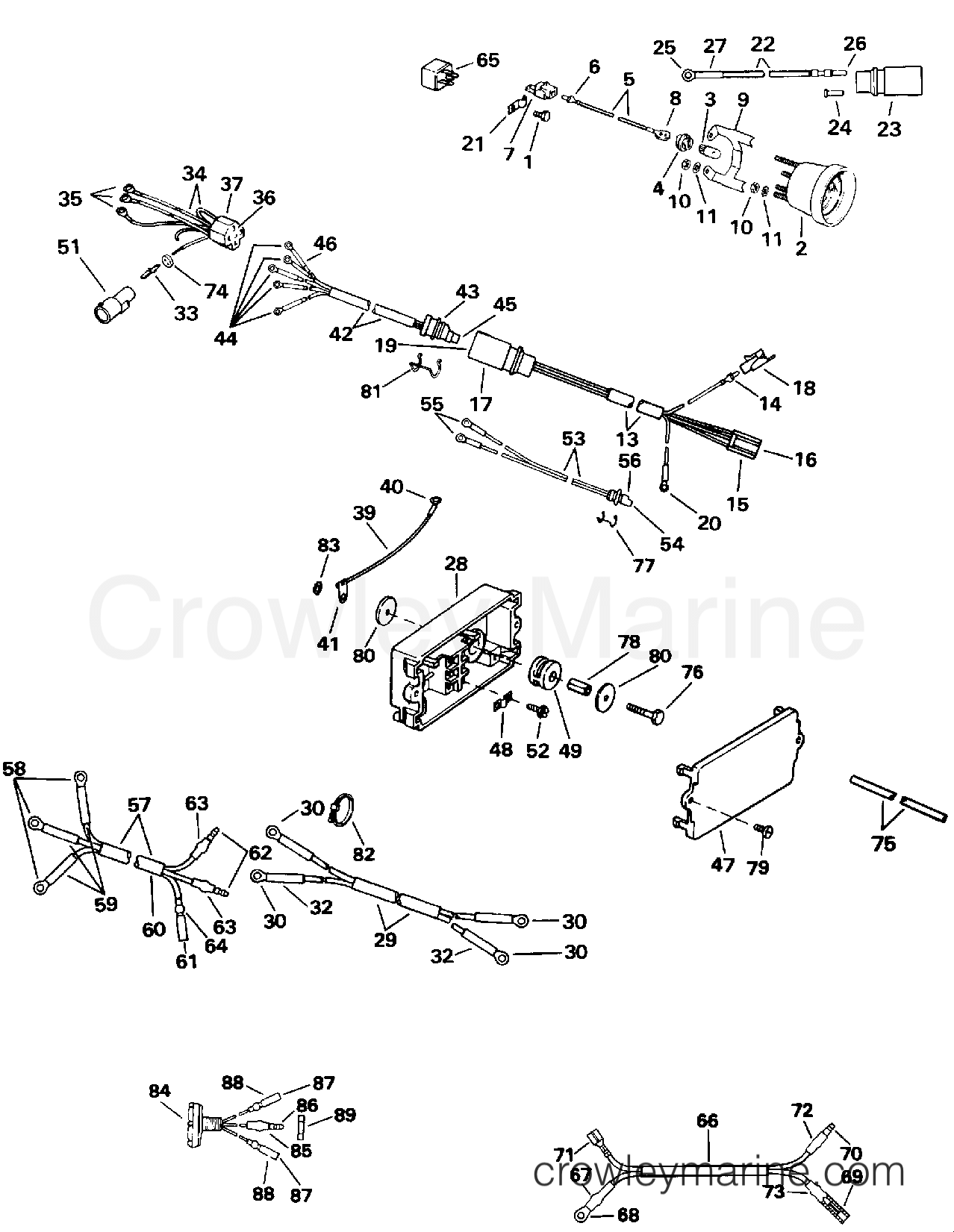

1992 Quiet Rider 90 - V90SLEND POWER TRIM/TILT ELECTRICAL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1992 Quiet Rider 90 - V90SLEND - POWER TRIM/TILT ELECTRICAL 1992 Quiet Rider 90 - V90SLEND - POWER TRIM/TILT ELECTRICAL
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

1
Screw
0310981 ← 0310981

SCREW, CLAMP

$3.79
You save 5%. $3.99
Cross Ship
3
Instrument Bulb
0125432 ← 0125432

BULB

$7.40
You save 5%. $7.79
Cross Ship
4
Bulb Socket
0122553 ← 0122553

SOCKET

$9.97
You save 5%. $10.49
Cross Ship
6
Lead Terminal
0310523 ← 0310523

TERMINAL

$6.01
You save 5%. $6.33
Cross Ship
7
1 hole recept Connector
0310572 ← 0310572

HOUSING

$9.95
You save 13%. $11.49
Cross Ship
8
Ring Terminal
0510780 ← 0510780

RING TERMINAL

$4.99
$5.00
Ships immediately
1 in stock
9
Mounting Bracket
0126272 ← 0126272

BRACKET

$9.97
You save 5%. $10.49
Cross Ship
10
Nut
0125410 ← 0125410

NUT

$7.40
You save 5%. $7.79
Cross Ship
11
Lock Washer-
0125411 ← 0125411

WASHER

$8.99
You save 5%. $9.46
Cross Ship
14
Terminal
0512904 ← 0512904

TERMINAL

$1.89
You save 5%. $1.99
Cross Ship
15
Connector
0309474 ← 0309474

CONNECTOR

$9.95
You save 13%. $11.49
Cross Ship
16
Terminal
0309433 ← 0309433

TERMINAL

$9.95
You save 13%. $11.49
Cross Ship
18
1 hole recept Connector
0310572 ← 0310572

CONNECTOR

$9.95
You save 13%. $11.49
Cross Ship
22
Connector & Lead Assembly
0582093 ← 0582093

LEAD ASSEMBLY

$21.84
You save $1.15. $22.99
Cross Ship
24
Plug-Connector
0511496 ← 0511496

PLUG CONNECTOR

$6.99
You save 21%. $8.90
Ships immediately
5+ in stock
25
Ring Terminal
0510151 ← 0510151

TERMINAL

$1.89
You save 5%. $1.99
Cross Ship
30
Ring Terminal
0510780 ← 0510780

TERMINAL

$4.99
$5.00
Ships immediately
1 in stock
33
Terminal
0513666 ← 0513666

TERMINAL

$2.84
You save 5%. $2.99
Ships immediately
4 in stock
35
Ring Terminal
0510780 ← 0510780

TERMINAL

$4.99
$5.00
Ships immediately
1 in stock
36
Terminal
0513167 ← 0513167

TERMINAL

$2.84
You save 5%. $2.99
Cross Ship
36
Terminal
0513166 ← 0513166

TERMINAL

$2.84
You save 5%. $2.99
Cross Ship
40
Ring Terminal
0510780 ← 0510780

RING TERMINAL

$4.99
$5.00
Ships immediately
1 in stock
44
Ring Terminal
0510780 ← 0510780

RING TERMINAL

$4.99
$5.00
Ships immediately
1 in stock
55
Ring Terminal
0510780 ← 0510780

TERMINAL

$4.99
$5.00
Ships immediately
1 in stock
58
Ring Terminal
0510780 ← 0510780

RING TERMINAL

$4.99
$5.00
Ships immediately
1 in stock
60
Tubing
0511144 ← 0511144

TUBING

$1.19
You save 5%. $1.25
Cross Ship
61
Socket Terminal
0512876 ← 0512876

SOCKET

$2.99
Ships immediately
5+ in stock
67
Ring Terminal
0510780 ← 0510780

TERMINAL

$4.99
$5.00
Ships immediately
1 in stock
71
Terminal
0513166 ← 0513166

TERMINAL

$2.84
You save 5%. $2.99
Cross Ship
