1990 Johnson Outboards 150 - J150STLESB

INTAKE MANIFOLD section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

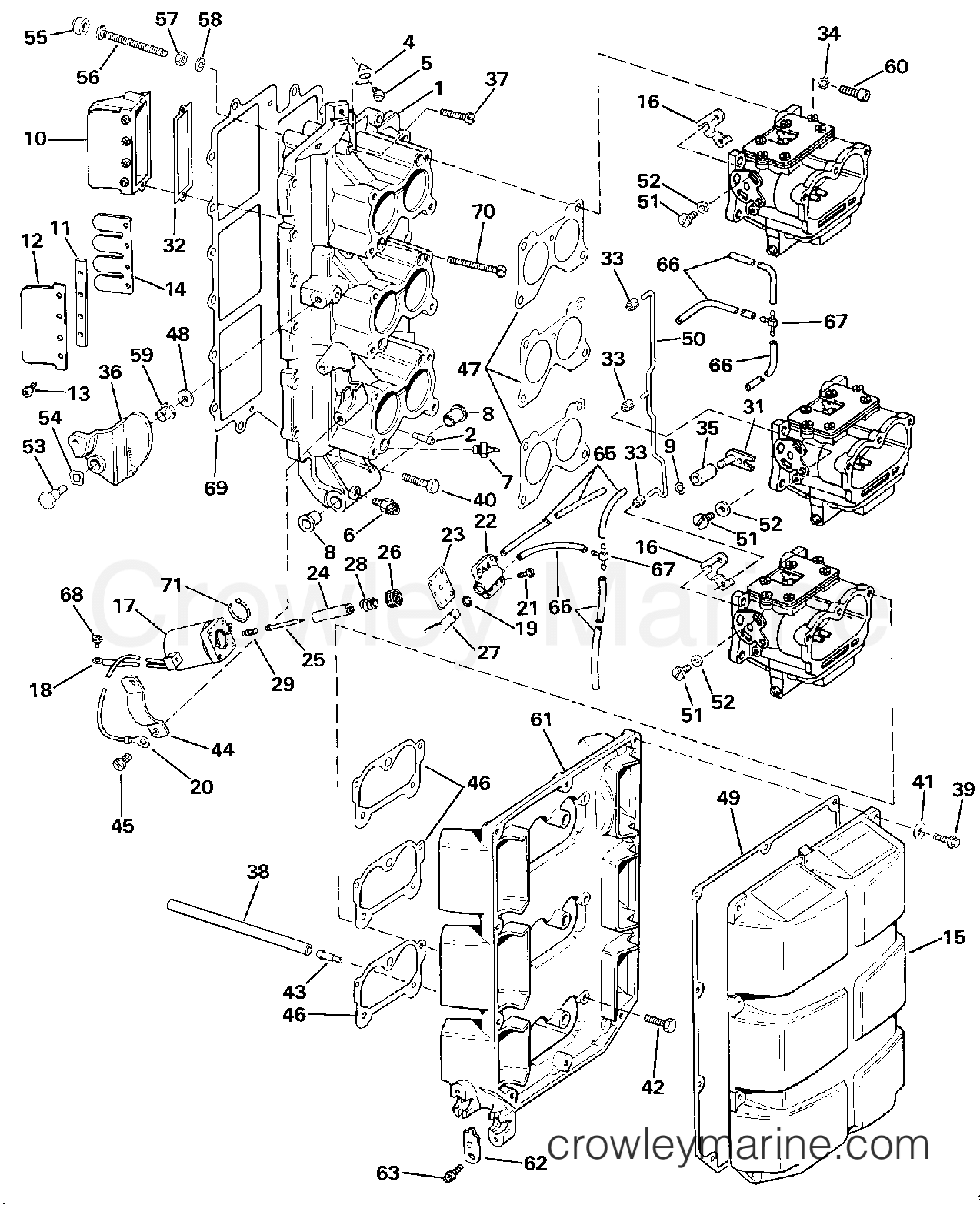

1990 Johnson Outboards 150 - J150STLESB INTAKE MANIFOLD section
Use two fingers to zoom
and move the diagram
1990 Johnson Outboards 150 - J150STLESB - INTAKE MANIFOLD section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

5
0329594 - Screw
0329594
0329594 ← 0329594

SCREW, TIMING POINTER

SCREW, TIMING POINTER
$6.65
You save 5%. $7.00
Ships Immediately
2 Items in stock
Required: 1
6
0319253 - Lub Fitting
0319253
0319253 ← 0319253

LUBE FITTING

LUBE FITTING
$19.95
You save $1.05. $21.00
Leaves in 3-5 days
Required: 1
7
0392988 - Check Valve and Filter Assembly
0392988
0392988 ← 0392988

CHECK VALVE & FILTER

CHECK VALVE & FILTER
$33.99
You save $3.40. $37.39
Ships Immediately
5+ Items in stock
Required: 6
8
0331839 - Bushing
0331839
0331839 ← 0331839

BUSHING, SHIFT LEVER

BUSHING, SHIFT LEVER
$11.16
You save 5%. $11.75
Leaves in 6-8 days
Required: 2
11
0323412 - Leaf Valve Shim
0323412
0323412 ← 0323412

SHIM

SHIM
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 1
18
0510780 - Ring Terminal
0510780
0510780 ← 0510780

TERMINAL

TERMINAL
$3.99
You save 5%. $4.19
Ships Immediately
5+ Items in stock
Required: 1
20
0510818 - Terminal
0510818
0510818 ← 0510818

TERMINAL

TERMINAL
$2.56
You save 5%. $2.69
Leaves in 3-5 days
Required: 1
21
0330121 - Screw
0330121
0330121 ← 0330121

SCREW, COVER TO HOUSING

SCREW, COVER TO HOUSING
$5.99
You save 30%. $8.50
Ships Immediately
4 Items in stock
Required: 4
24
0511809 - Plunger
0511809
0511809 ← 0511809

PLUNGER

PLUNGER
$17.99
You save 31%. $26.25
Leaves in 3-5 days
Required: 1
36
0330665 - Throttle Cam
0330665
0330665 ← 0330665

THROTTLE CAM

THROTTLE CAM
$11.40
You save 5%. $12.00
Leaves in 6-8 days
Required: 1
44
0330118 - Clamp
0330118
0330118 ← 0330118

CLAMP, PRIMER SOLENOID

CLAMP, PRIMER SOLENOID
$3.99
You save 20%. $5.00
Ships Immediately
1 Items in stock
Required: 1
51
0329594 - Screw
0329594
0329594 ← 0329594

SCREW, LEVER TO CARBURETOR

SCREW, LEVER TO CARBURETOR
$6.65
You save 5%. $7.00
Ships Immediately
2 Items in stock
Required: 3
62
0325388 - Retainer
0325388
0325388 ← 0325388

RETAINER, AIR SILENCER BASE

RETAINER, AIR SILENCER BASE
$14.99
You save $1.01. $16.00
Ships Immediately
5+ Items in stock
Required: 2
66
 -
← 0

HOSE, DRAIN SYSTEM

HOSE, DRAIN SYSTEM
Notes: Use P/n 327229 cut to length
Items in stock
Required: 0

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
