1990 Johnson Outboards 150 - J150STLESB

IGNITION SYSTEM section

Change Section

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

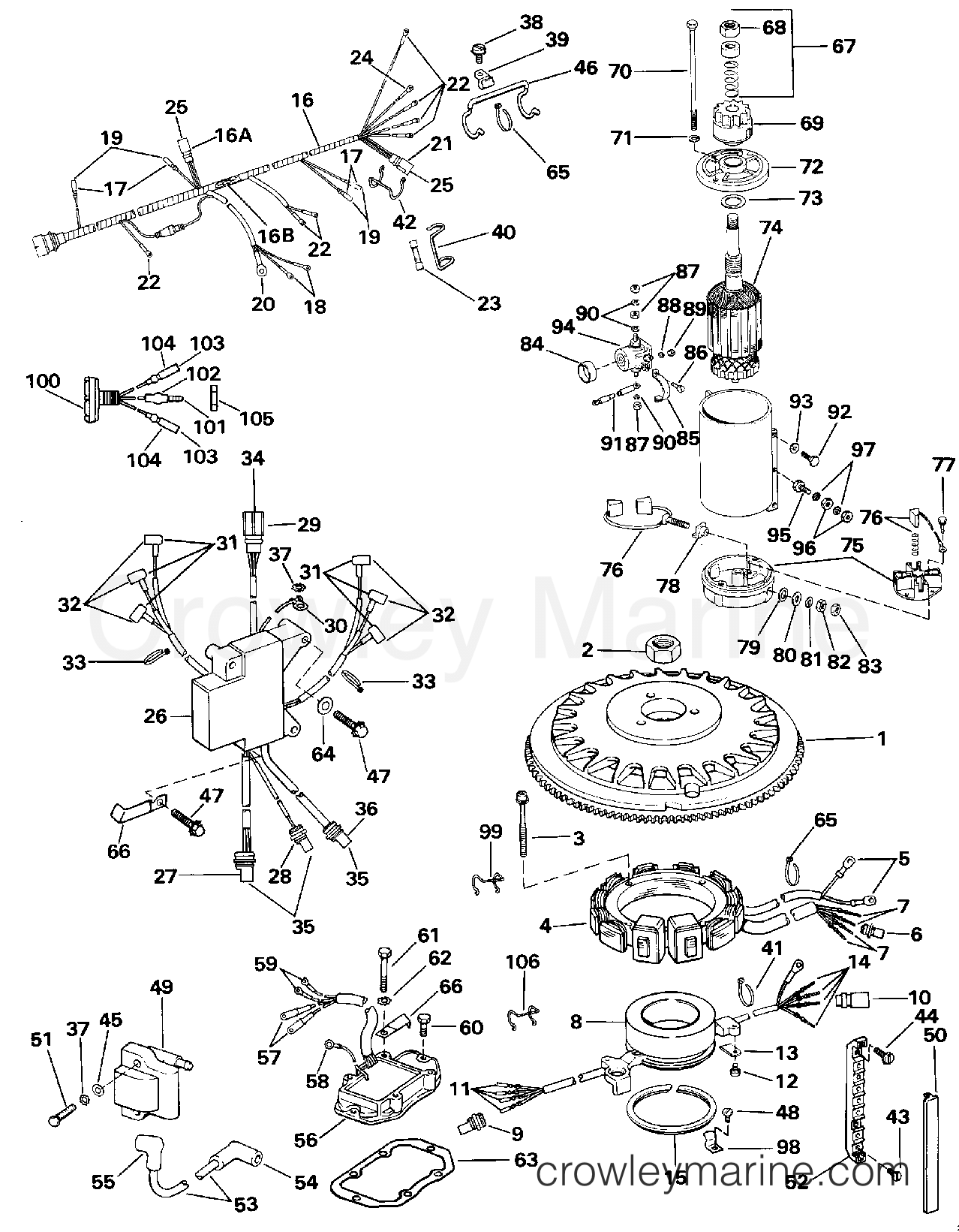

1990 Johnson Outboards 150 - J150STLESB IGNITION SYSTEM section
Use two fingers to zoom
and move the diagram
1990 Johnson Outboards 150 - J150STLESB - IGNITION SYSTEM section


Reference links are clickable

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

9
0512749 - Connector
0512749
0512749 ← 0512749

CONNECTOR

CONNECTOR
$14.96
You save 5%. $15.75
Leaves in 3-5 days
Required: 1
10
0512750 - Connector
0512750
0512750 ← 0512750

CONNECTOR

CONNECTOR
$13.06
You save 5%. $13.75
Leaves in 3-5 days
Required: 1
12
0307019 - Screw
0307019
0307019 ← 0307019

SCREW

SCREW
$2.99
You save 25%. $4.00
Ships Immediately
5+ Items in stock
Required: 1
13
0511387 - Clamp
0511387
0511387 ← 0511387

CLAMP, LEADS

CLAMP, LEADS
$5.95
$6.00
Leaves in 6-8 days
Required: 2
16
0583852 - Motor Cable Assembly
0583852
0583852 ← 0583852

ENGINE CABLE ASSEMBLY.

ENGINE CABLE ASSEMBLY.
$354.96
You save $19.73. $374.69
Leaves in 6-8 days
Required: 1
16A
0512748 - Female 3 Pin Terminal Connector
0512748
0512748 ← 0512748

CONNECTOR

CONNECTOR
$13.06
You save 5%. $13.75
Leaves in 3-5 days
Required: 1
17
0513186 - Socket Sleeve Blue
0513186
0513186 ← 0513186

INSULATING SLEEVE

INSULATING SLEEVE
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 4
18
0511829 - Terminal Ring
0511829
0511829 ← 0511829

RING TERMINAL

RING TERMINAL
$.69
$.69
Leaves in 3-5 days
Required: 2
19
0512876 - Socket Terminal
0512876
0512876 ← 0512876

TERMINAL

TERMINAL
$1.99
You save 26%. $2.69
Ships Immediately
1 Items in stock
Required: 4
21
0512754 - 5-Pin Connector
0512754
0512754 ← 0512754

CONNECTOR

CONNECTOR
$14.96
You save 5%. $15.75
Leaves in 3-5 days
Required: 1
22
0510780 - Ring Terminal
0510780
0510780 ← 0510780

RING TERMINAL

RING TERMINAL
$3.99
You save 5%. $4.19
Ships Immediately
5+ Items in stock
Required: 7
24
0510818 - Terminal
0510818
0510818 ← 0510818

RING TERMINAL

RING TERMINAL
$2.56
You save 5%. $2.69
Leaves in 3-5 days
Required: 1
28
0512749 - Connector
0512749
0512749 ← 0512749

CONNECTOR, 4-SOCKET

CONNECTOR, 4-SOCKET
$14.96
You save 5%. $15.75
Leaves in 3-5 days
Required: 1
34
0511469 - Temperature Switch Pin
0511469
0511469 ← 0511469

PIN

PIN
$.99
You save 9%. $1.09
Ships Immediately
5+ Items in stock
Required: 4
39
0326365 - Spring
0326365
0326365 ← 0326365

CLAMP, SPRING, ENGINE CABLE

CLAMP, SPRING, ENGINE CABLE
$7.99
You save 32%. $11.75
Ships Immediately
5+ Items in stock
Required: 1
42
0512741 - Retainer
0512741
0512741 ← 0512741

RETAINER

RETAINER
$108.54
You save $5.71. $114.25
Leaves in 3-5 days
Required: 1
46
0315182 - Clamp
0315182
0315182 ← 0315182

CLAMP

CLAMP
$24.95
You save $1.80. $26.75
Leaves in 3-5 days
Required: 1
50
0432297 - Cover Assembly
0432297
0432297 ← 0432297

COVER ASSEMBLY.

COVER ASSEMBLY.
$14.95
You save $1.55. $16.50
Leaves in 6-8 days
Required: 1
66
0316487 - Retainer
0316487
0316487 ← 0316487

RETAINER

RETAINER
$9.50
$9.50
Leaves in 3-5 days
Required: 3
67
0393285 - Spring & Spacer Assembly Nut
0393285
0393285 ← 0393285

NUT, SPRING & SPACER

NUT, SPRING & SPACER
$34.95
You save $2.05. $37.00
Leaves in 3-5 days
Required: 1
71
0321568 - Lockwasher
0321568
0321568 ← 0321568

LOCKWASHER

LOCKWASHER
$1.43
You save 5%. $1.50
Leaves in 6-8 days
Required: 2
72
0386639 - Cap Assembly Drive
0386639
0386639 ← 0386639

CAP ASSEMBLY.

CAP ASSEMBLY.
$39.95
You save $2.34. $42.29
Leaves in 6-8 days
Required: 1
87
0311349 - Nut
0311349
0311349 ← 0311349

NUT, TERMINAL

NUT, TERMINAL
$5.75
$5.75
Leaves in 3-5 days
Required: 3
88
0304454 - Lockwasher
0304454
0304454 ← 0304454

LOCKWASHER

LOCKWASHER
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 2
90
0331259 - Lockwasher
0331259
0331259 ← 0331259

LOCKWASHER, TERMINAL

LOCKWASHER, TERMINAL
$3.56
You save 5%. $3.75
Leaves in 3-5 days
Required: 3
98
0326439 - Clamp
0326439
0326439 ← 0326439

CLAMP, TIMER BASE

CLAMP, TIMER BASE
$19.95
You save 5%. $20.89
Leaves in 6-8 days
Required: 4
101
0512947 - Bullet Terminal
0512947
0512947 ← 0512947

BULLET TERMINAL

BULLET TERMINAL
$.69
$.69
Ships Immediately
5+ Items in stock
Required: 1
102
0513185 - Bullet Term Sleeve
0513185
0513185 ← 0513185

SLEEVE

SLEEVE
$4.99
You save 13%. $5.75
Ships Immediately
1 Items in stock
Required: 1
103
0512876 - Socket Terminal
0512876
0512876 ← 0512876

SOCKET TERMINAL

SOCKET TERMINAL
$1.99
You save 26%. $2.69
Ships Immediately
1 Items in stock
Required: 2
104
0513186 - Socket Sleeve Blue
0513186
0513186 ← 0513186

SLEEVE, SOCKET

SLEEVE, SOCKET
$6.65
You save 5%. $7.00
Leaves in 3-5 days
Required: 2
